EMERSON A6500-UM  通用测量卡

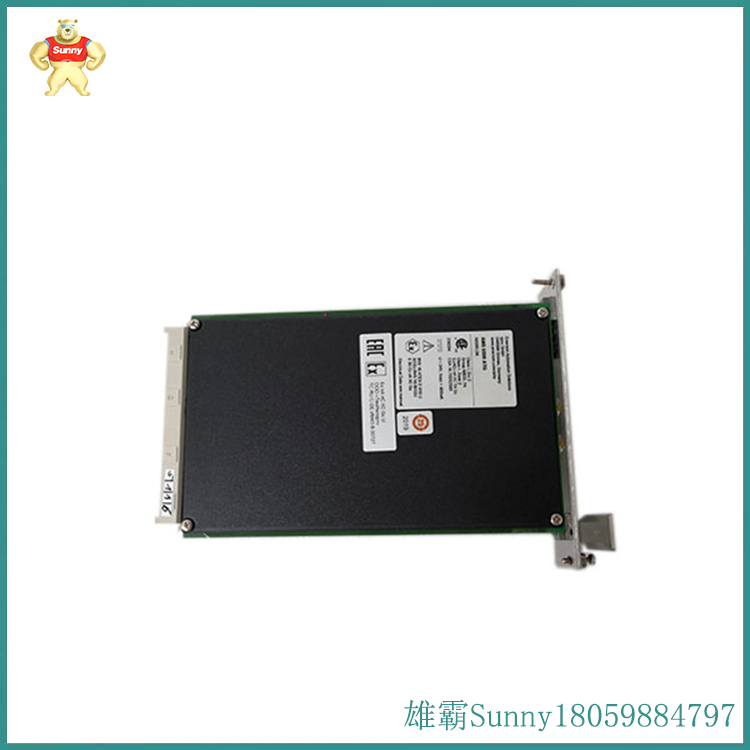

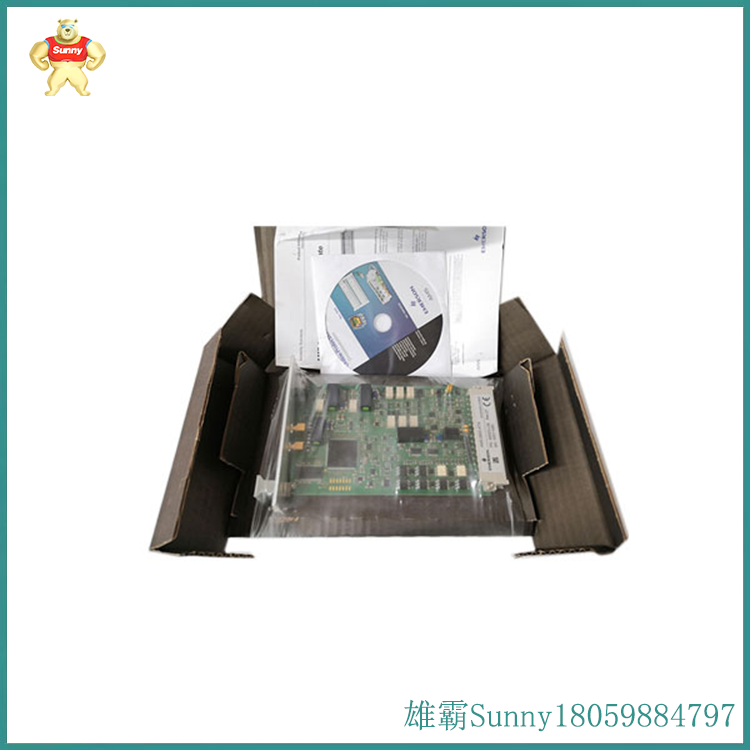

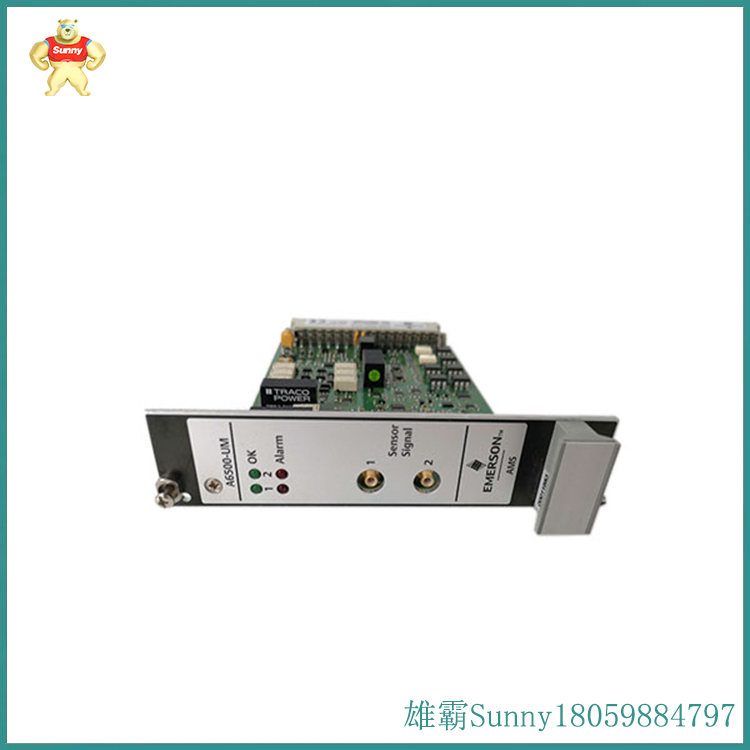

A6500-UM通用测量卡是AMS 6500 ATG的一个组件机械保护系统。板卡配有2个传感器输入通道（根据选择的测量模式，独立或组合）与大多数涡流、压电（加速度计或速度计）、地震等常见传感器（电动）、LF（低频轴承振动）、Hal影响和LVDT（in与A6500-LC组合）传感器。除此之外，该卡还包含5个数字输入以及6个数字输出。测量信号通过内部RS传输485总线至A6500-CC通信卡，并转换为Modbus RTU和Modbus TCP/用于进一步传输到主机或分析系统的IP协议。此外通信卡通过面板上的USB插座提供通信用于连接到PC/笔记本电脑，用于卡的配置和可视化测量结果。除此之外，测量结果可以通过模拟输出0/4-20 mA。这些输出具有公共接地和电气与系统电源隔离。A6500-UM通用测量仪的操作板卡在A6500-SR系统机架中执行，该机架还提供电源电压和信号。A6500-UM通用测量卡提供以下功能：

■轴绝对振动

■轴相对振动

■轴偏心度

■案例压电振动

■推力和连杆位置、差速器和壳体膨胀、阀门位置

■速度和关键点双通道，3U尺寸，1插槽插头-模块内减少机柜空间传统需求减半四个信道6U大小的卡。

■符合API 670，热可更换模块。可远程选择的极限倍数和跳闸旁路。前后缓冲和比例输出，0/4-20mA输出。

自检设施行业监控硬件、电源输入，硬件温度、传感器，和电缆。

The A6500-UM universal measurement card is a component mechanical protection system of the AMS 6500 ATG. The board is equipped with 2 sensor input channels (independent or combined according to the selected measurement mode) and most common sensors such as eddy current, piezoelectric (accelerometer or velocimeter), seismic (electric), LF (low-frequency bearing vibration), Hal effect, and LVDT (in combination with A6500-LC). In addition, the card also includes 5 digital inputs and 6 digital outputs. The measurement signal is transmitted through the internal RS 485 bus to the A6500-CC communication card and converted into Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system. In addition, the communication card provides communication through a USB socket on the panel for connecting to a PC/laptop, for card configuration and visualization of measurement results. In addition, the measurement results can be obtained through analog output of 0/4-20 mA. These outputs have a common grounding and electrical isolation from the system power supply. The operation board of the A6500-UM universal measuring instrument is executed in the A6500-SR system rack, which also provides power voltage and signals. The A6500-UM universal measurement card provides the following functions:

■ Shaft absolute vibration

Relative vibration of shaft

Axis eccentricity

Case study on piezoelectric vibration

Thrust and connecting rod position, differential and housing expansion, valve position

Dual channels for speed and key points, 3U size, 1-slot plug - reduces cabinet space within the module. Traditional requirements halve the size of four channels with 6U cards.

Compliant with API 670, hot replaceable module. Remote selectable limit multiples and trip bypasses. Front and rear buffering and proportional output, 0/4-20mA output.

Self inspection facilities industry monitoring hardware, power input, hardware temperature, sensors, and cables.
