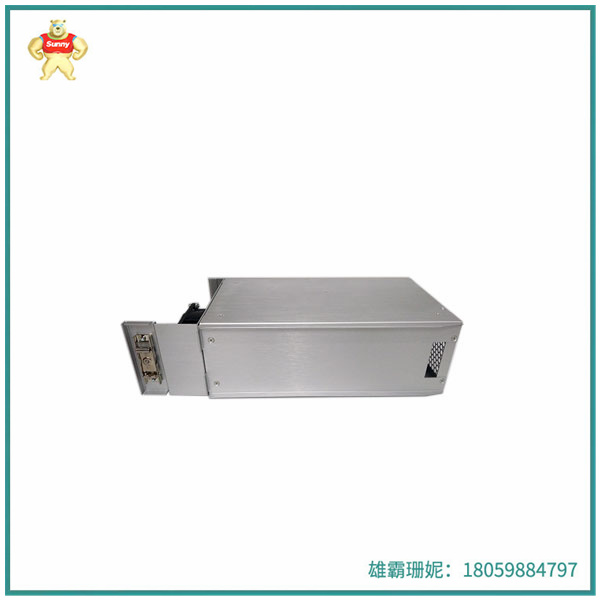

1X00416H01电源模块是一种可以直接贴装在印刷电路板上的电源供应器，其特点是可为专用集成电路（ASIC）、数字信号处理器 (DSP)、微处理器、存储器、现场可编程门阵列 (FPGA) 及其他数字或模拟负载提供供电。

一般来说，这类模块称为负载 (POL) 电源供应系统或使用点电源供应系统 (PUPS)。由于模块式结构的优点甚多，因此模块电源广泛用于交换设备、接入设备、移动通讯、微波通讯以及光传输、路由器等通信领域和汽车电子、航空航天等。

此外，1X00416H01电源模块是一种直接焊接在电路板上的电源转换装置，它主要的作用就是把交流电和直流电进行相互转换，按照转换方式一般会分为AC-DC和DC-DC两种模式。一个完整的电源模块一般是由输入整流滤波器、单片开关电源、高频变压器、漏级钳位保护电路、光耦反馈电路、输出整流滤波器、偏置电路等部分组成。

电源模块的作用主要包括以下几个方面：

隔离作用：1X00416H01电源模块可以起到隔离作用，包括强电弱电隔离、驱动隔防水保护隔离、雷电保护隔离等，可以保证电子仪器设备对人体产生的伤害，起到保护隔离的作用。

噪声干扰隔离：电源模块可以隔离电路与电路之间、强弱信号之间的噪声干扰，保证电子设备仪器的独立性。

接地环路消除：电源模块可以消除信号的传输、电源供电系统等接地环路，为其提供方便有效的快捷使用。

电子设备仪器的保护：电源模块可以对电子设备仪器进行短路保护、过压保护、欠压保护等，增强其使用性能与操作便捷性。

电压变换：1X00416H01电源模块具有升压与降压的转换功能，可以对交流与直流进行转换、线路正极与负极也可相互之间转换，在单电源与正负电源和单电源与多电源转换等方面有广泛应用。

稳压：电源模块可以提供稳压功能，对于交流市电供电、远程直流供电、分布式电源供电系统和电池供电等场景有重要作用。

降噪：1X00416H01电源模块具备有源滤波功能，可以有效降低噪声干扰。

总的来说，1X00416H01电源模块的作用主要集中在隔离、保护、电压变换、稳压和降噪等方面，广泛应用于通信、汽车电子、航空航天等领域。
