KROHNE OPTIFLUX4300W IFC300W 高精度自诊断电磁流量计

【功能描述】

科隆高精度自诊断电磁流量计

适用于所有过程的专业产品,法兰连接型传感器,耐化学腐蚀.抗真空,介质的*温度可达到180度.

全能的IFC300转换器具有强大功能,广泛适用于各种行业,尤其是给排水行业等.

具有完善模块化结构的转换器,有先进的人机界面HMI,安装操作简便,适用于各种应用条件.

广泛的诊断功能作为标准配置,灵活地为用户的特殊要求定制专门的解决方案.

转换器之间的无需任何重新设置,可提供AC或DC供电,数字化信号处理,高速信号转换系统.

被测液体事最多可含70%的固体成份.

德国科隆(krohne)电磁流量计:OPTIFLUX 4300 W(可选C+F+R)

规格:DN 10-3000

技术参数:

口径:DN 10-3000

传感器型号:OPTIFLUX 4000(四氟)

精度:0.2%(DNl0—1600)精度曲线参见P16

安装方式:OPTIFLUX 4300 C(一体型);F(分体);W(墙挂式)

重复性:±0.06%

测量范围:0—12m/S(流量单位可改变)

连接法兰:GB9 115(DIN 2501,BS 4504)及ASME(ANSl)可选择

压力:0.25M Pa~4.0MPa(*40bar按口径分)

衬里材料:四氟

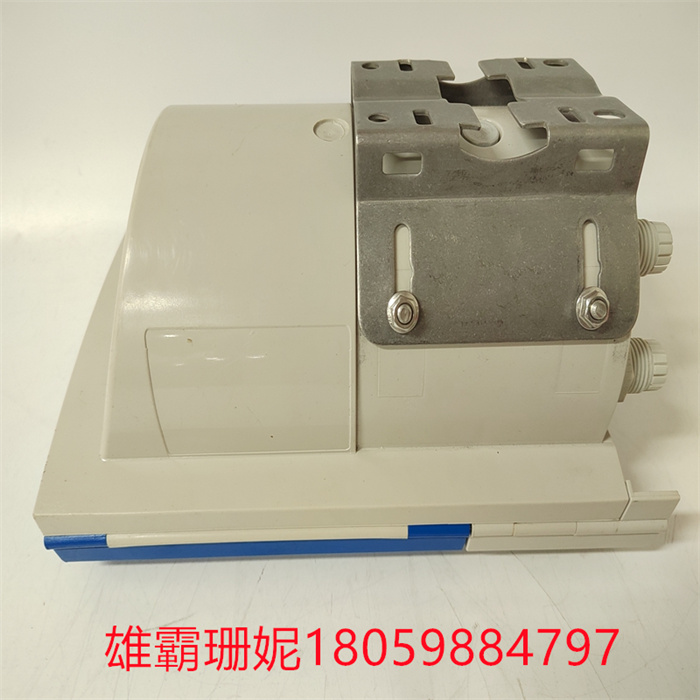

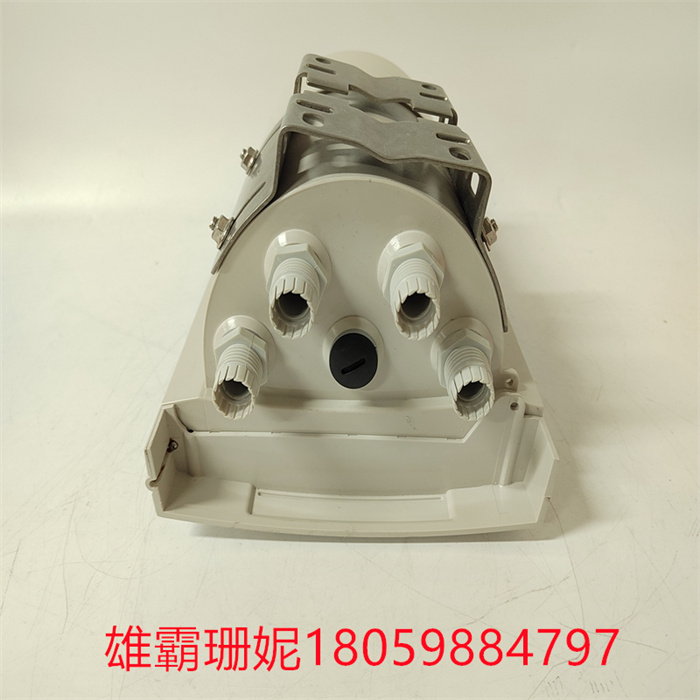

OPTIFLUX4300W IFC300W KROHNE电磁流量转换器

品牌:KROHNE

型号:OPTIFLUX4300W IFC300W

电磁流量转换器，用于与OPTIFLUX和WATERFLUX流量传感器结合使用

紧凑、远程现场、壁挂式和机架式外壳

具有针对需求的广泛诊断功能(NE 107)

4线、3 x 4...20 mA、HART图、Modbus、FF、Profibus PA/DP、PROFINET等.

KROHNE OPTIFLUX4300W IFC300W 高精度自诊断电磁流量计

Cologne high precision self-diagnostic electromagnetic flowmeter

Professional products for all processes, flanged sensors, chemical resistant. Vacuum resistance, the medium temperature can reach 180 degrees.

The versatile IFC300 converter has powerful functions and is widely used in various industries, especially in the water supply and drainage industry.

The converter with perfect modular structure, advanced HMI, easy to install and operate, suitable for various application conditions.

A wide range of diagnostic functions come as standard, allowing flexibility to tailor specialized solutions to users' specific requirements.

Between converters without any resetting, can provide AC or DC power supply, digital signal processing, high-speed signal conversion system.

The liquid under test may contain a maximum of 70% solid content.

Cologne, Germany (krohne) Electromagnetic flowmeter :OPTIFLUX 4300 W(optional C+F+R)

Specification :DN 10-3000

Technical parameters:

Caliber :DN 10-3000

Sensor Model :OPTIFLUX 4000(tetrafluoron)

Accuracy :0.2%(DNL0-1600) Accuracy curve refer to P16

Installation method :OPTIFLUX 4300C (one type); F(separate body); W(Wall mounted)

Repeatability :±0.06%

Measuring range: 0-12m /S(flow unit can be changed)

Connection flange :GB9 115(DIN 2501,BS 4504) and ASME(ANSl) optional

Pressure :0.25M Pa~4.0MPa(*40bar according to caliber)

Lining material: tetrafluoride

OPTIFLUX4300W IFC300W KROHNE electromagnetic flow converter

Brand :KROHNE

Model :OPTIFLUX4300W IFC300W

Electromagnetic flow converters for use with OPTIFLUX and WATERFLUX flow sensors

Compact, remote field, wall-mounted and rack-mounted enclosures

Extensive diagnostic capabilities for requirements (NE 107)

4 lines, 3 x 4... 20 mA, HART chart, Modbus, FF, Profibus PA/DP, PROFINET, etc.

KROHNE OPTIFLUX4300W IFC300W 高精度自诊断电磁流量计
