RAMIX PMC661J 处理器模块

品牌

RAMIX

其它型号

PPC902CE101

电压

180

重量

1.6kg

颜色

混色

产地

美国

质保

1年

环境

正常

是否进口

是

是否加工定制

否

可售卖地

全国

型号

PMC661J

联系电话：18059884797

立即咨询在线留言

产品详情

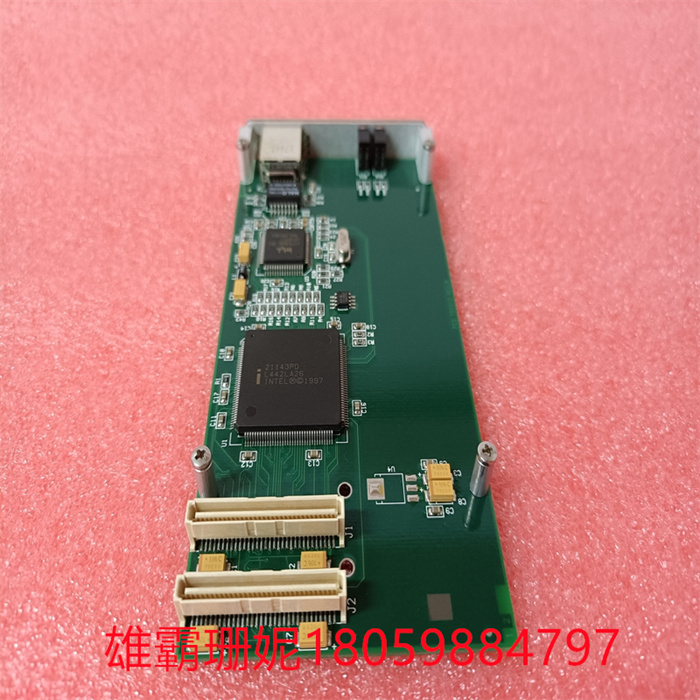

RAMIX PMC661J 处理器模块

PMC661J (5).jpg

【功能描述】

RAMIX PMC661J处理器模块硬件层、中间层、系统软件层和应用软件层

(1)硬件层:嵌入式微处理器、存储器、通用设备接口和I/O接口。嵌入式核心模块=微处理器+电源电路+时钟电路+存储器Cache:位于主存和嵌入式微外理器内核之间，存放的是近一段时间微外理器使用多的程序代码和数据。它的主要目标是减小存储器给微处理器内核造成的存储器访问瓶颈，使处理速度。

(2)中间层(也称为硬件抽象层HAL或者板级支持包BSP)它将系统上层软件和底层硬件分离开来，使系统上层软件开发人员无需关系底层硬件的具体情况，根据BSP层提供的接口开发即可。

BSP有两个特点:硬件相关性和操作系统相关性。设计一个完整的BSP需要完成两部分工作:嵌入式系统的硬件初始化和BSP功能.片级初始化:纯硬件的初始化过程，把嵌入式微处理器从上电的默认状态逐步设置成系统所要求的工作状态。板级初始化:包合软硬件两部分在内的初始化过程，为随后的系统初始化和应用程序建立硬件和软件的运行环境。

RAMIX PMC661J处理器模块系统级初始化:以软件为主的初始化过程，进行操作系统的初始化。模块可用于构建高度灵活和可扩展的自动测试设备。它提供了多个通道的数字输入和输出功能，可以与其他测试仪器集成，实现复杂的测试和测量任务。

RAMIX PMC661J处理器模块数据采集和控制系统：该模块适用于数据采集和实时控制应用。它可以接收外部传感器的模拟或数字信号，并将其转换为数字数据进行处理和分析。同时，它还可以通过数字输出通道控制外部设备和执行动作。机器视觉和图像处理：模块具有高速的数字输入和输出能力，适用于机器视觉和图像处理应用。它可以接收高速摄像机捕获的图像数据，并将其传输到计算机进行实时分析和处理。同时，它还可以控制外部设备，实现与图像相关的任务，如触发相机、控制照明等。自动化控制系统：该模块可用于自动化控制系统中的输入和输出功能。它可以接收外部传感器的输入信号，并将其转换为数字数据进行控制和反馈。

RAMIX PMC661J处理器模块同时，它还可以通过数字输出通道控制执行器和执行动作，实现自动化控制过程。实验室研究和教学：模块适用于实验室研究和教学应用。它可以作为一个通用的输入输出接口，用于连接和控制实验设备、传感器和执行器。学生和研究人员可以使用该模块进行数据采集、实时控制和信号分析等实验操作。总的来说，输入输出模块在自动测试设备、数据采集和控制系统、机器视觉和图像处理、自动化控制系统以及实验室研究和教学等领域都具有广泛的应用。它提供了高速、可扩展和灵活的I/O功能，为用户提供了强大的工具来实现各种测试、控制和数据采集任务。
