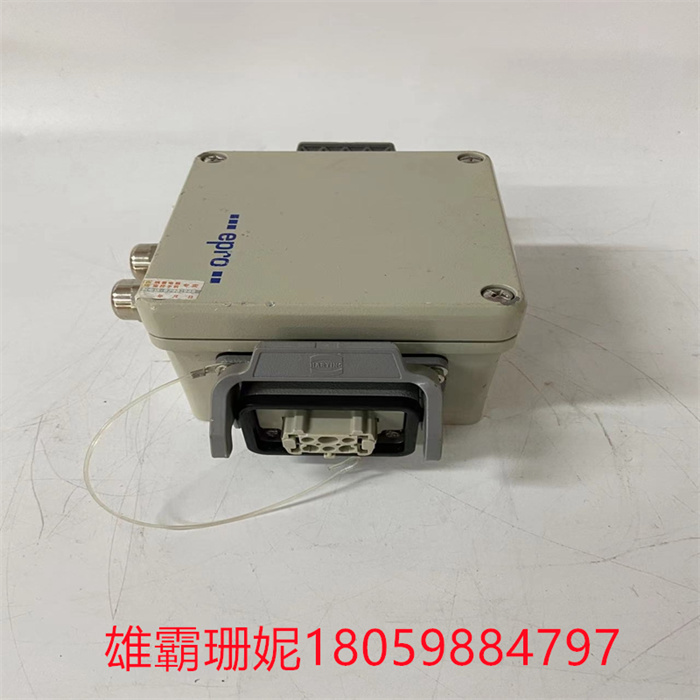

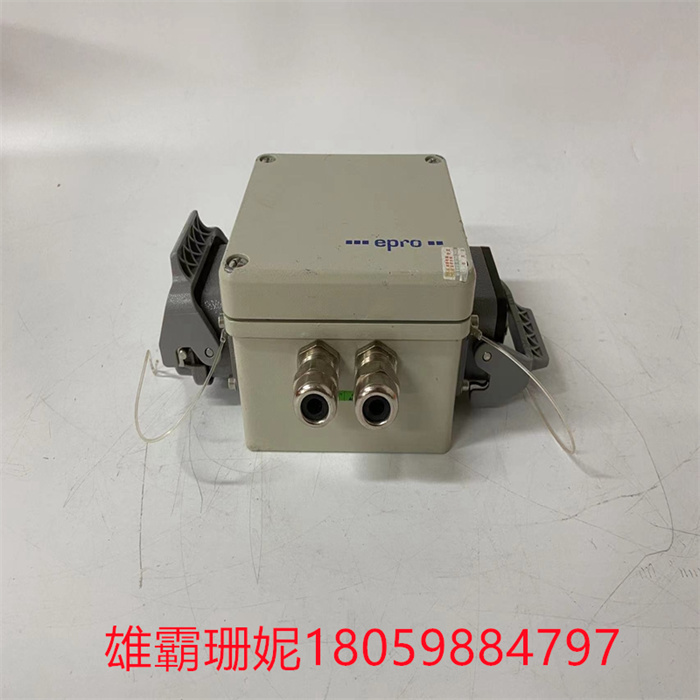

MMS3120022-000 9100-03047-01  双通道转速

【功能描述】

EPRO MMS3120/022-000转速传感器I/O的插槽状态位如果连接丢失。

在以太网上使用I/O时，如果网络连接在适配器上丢失，该连接的SlotStatusBit将不会注册断开连接9秒或更长时间。如果您需要比9秒更快的连接数据丢失，请使用GSV指令，用于监视连接的入口状态更新速度比SlotStatusBit更快。当存在这些元件时，可能会发生重大不可恢复故障在程序中：·在SFC中，JSR指令用于跳转到另一个SFC称为嵌套SFC。·一个或多个嵌套SFC指令包含同步分支。·上次扫描活动步骤选项（在SFC执行选项卡中指定控制器属性对话框的）设置为自动。当这些元件存在时，为了避免重大不可恢复故障，将“活动步骤的最后扫描”设置为“不扫描”或“编程重置”。

双通道转速/键相变送器MMS3311是MMS3000变送器系列之一，用于监测轴的转速，并给出键相脉冲。键相信号可以由轴上的键相槽触发，也可以由测速齿盘产生。

变送器的输入为epro涡流传感器PR6422/…，PR6423/…，PR6424/…，PR6425/…，和PR6426/…。

应用领域包括各种类型的涡轮机械，大型和小型的汽轮机，风扇，鼓风机，压缩机，齿轮箱，离心机，泵，磨煤机及其它。

这个系统既适合发电厂、炼油厂、化工厂的大型设备，结合现场总线和PLC、主计算机和网络一起使用，也适合测点少的小型涡轮机械的独立监测。

此变送器不具备防爆功能。

功能及原理：

MMS3311双通道转速/键相变送器将涡流传感器的脉冲输入转换成与转速成正比的输出，同时输出一个键相脉冲信号。

内置“自检"电路，监测传感器和变送器电路故障，如果发现故障，逻辑“OK"输出将改变状态，同时电流输出从4-20mA变为0mA。初始设置通过拨动开关和旋钮开关来完成。变送器的出厂设置为*常用的工作方式，工厂也可以按用户要求进行设置。

技术数据：

传感器输入：

两个独立的涡流传感器输入。传感器为epro公司的PR6422/…，PR6423/…，PR6424/…，PR6425/…和PR6426/…。

测量范围：0-65535rpm。

测量信号输出：

一路正比于转速的0/4…20mA的电流输出，一路键相输出。

允许负载：<500Ω。

有短路和开路保护，通过夹线端子连接电缆。

两个带缓冲的电压输出（2-10V），每个通道一路，与输入信号成正比，用于测试，也可以用于分析和诊断目的；

一个“OK"状态输出和两个限值输出。

MMS3120022-000 9100-03047-01  双通道转速

EPRO MMS3120/022-000 Speed sensor I/O slot status bit if the connection is lost.

When using I/O over Ethernet, if the network connection is lost on the adapter, the SlotStatusBit of that connection will not register being disconnected for 9 seconds or more. If you need connection data loss faster than 9 seconds, use the GSV instruction, which is used to monitor the connection's entry status update faster than SlotStatusBit. When these elements are present, major unrecoverable failures can occur in the program: · In SFC, JSR instructions are used to jump to another SFC called nested SFC. One or more nested SFC instructions containing synchronous branches. · The last scan activity step option (specified in the controller properties dialog in the SFC Execution TAB) is set to automatic. When these components are present, to avoid major unrecoverable failures, set the "Last Scan of the active step" to "No Scan" or "Programmatic reset".

The dual channel speed/key phase transmitter MMS3311 is one of the MMS3000 transmitter series that monitors shaft speed and gives key phase pulses. The key signal can be triggered by the key phase slot on the shaft, or it can be generated by the velocity measurement gear disk.

The input of the transmitter is the epro eddy current sensor PR6422/... , PR6423/... , PR6424/... , PR6425/... , and PR6426/... .

Applications include various types of turbomachinery, large and small steam turbines, fans, blowers, compressors, gear boxes, centrifuges, pumps, coal mills and others.

This system is not only suitable for large equipment in power plants, refineries and chemical plants, combined with fieldbus and PLC, main computer and network, but also suitable for independent monitoring of small turbomachinery with few measuring points.

This transmitter is not explosion-proof.

Function and principle:

The MMS3311 dual-channel speed/key phase transmitter converts the pulse input of the eddy current sensor into an output proportional to the speed, and outputs a key phase pulse signal.

A built-in "self-check" circuit monitors sensor and transmitter circuit faults, and if a fault is found, the logic "OK" output changes state while the current output changes from 4-20mA to 0mA. Initial setup is done by toggle switches and knob switches. The factory setting of the transmitter is the most commonly used working mode, and the factory can also be set according to user requirements.

Technical data:

Sensor input:

Two independent eddy current sensor inputs. The sensor is epro PR6422/... , PR6423/... , PR6424/... , PR6425/... And PR6426/... .

Measuring range: 0-65535rpm.

Measurement signal output:

All the way proportional to 1/4 of the speed... 20mA current output, one key phase output.

Allowable load: < 500Ω.

With short circuit and open circuit protection, the cable is connected through the clamp terminal.

Two buffered voltage outputs (2-10V), one for each channel, proportional to the input signal, for testing purposes, but also for analytical and diagnostic purposes;

One "OK" status output and two limit outputs.
