ABSOLUTE API4380-G 接受DC电压或电流输入

【功能描述】

API 4380 G接受DC电压或电流输入，并提供光学隔离的DC电压或电流输出与输入成线性关系。

典型应用包括信号隔离、信号转换、信号增强或其组合三者之中。输入和输出之间的光学隔离使得这一点用于消除接地环路的模块，共模信号抑制和噪声拾取减少。

该模块电源被离，从而形成全3路(输入，输出，电源)隔离。API 4380 G输入和输出可通过以下方式进行现场配置外部旋转和滑动开关。

常见的范围设置有在模块标签上。最常见的范围是内置的，可以从模块上的表格中选择，但是虚拟地无限的组合是可能的。向工厂咨询特殊范围的协助。

内置18 VDC未调节回路励磁电源可用于为无源输入设备供电。

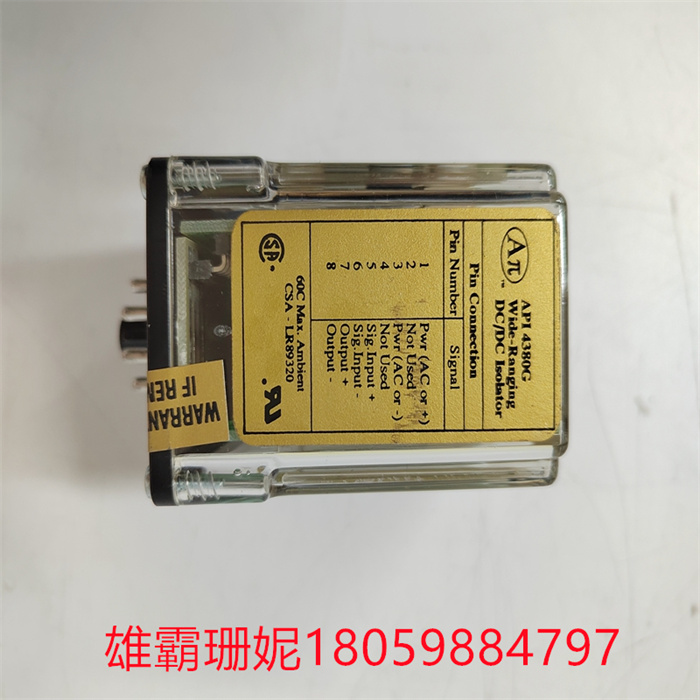

API4380G-ABSOLUTE模块

PLC控制系统程序的调试一般包括1/0端子测试和系统调试两部分内容，良好的调试步骤有利于加速总装调试的过程

l/O端子测试

用手动开关暂时代替现场输入信号，以手动方式逐一对PLC输入端子进行检查、验证，PLC输入端子的指示灯点表示正常:反之，应检查接线或者是I/O点坏。亮，

我们可以编写一个小程序，在输出电源良好的情况下，检查所有PLC输出端子指示灯是否全亮。PLC输入端子的指示灯点亮，表示正常。反之，应检查接线或者是I/O点坏

系统调试

系统调试应按控制要求将电源、外部电路与输入输出端子连接好，然后装载程序于PLC中，运行PLC进行调试。将PLC与现场设备连接。在正式调试前全面检查整个PLC控制系统，包括电源、接地线、设备连接线、I/0连线等。在整个硬件连接正确无误的情况下即可送电。

ABSOLUTE API4380-G 接受DC电压或电流输入

The API 4380 G accepts a DC voltage or current input and provides an optically isolated DC voltage or current output that is linear to the input.

Typical applications include signal isolation, signal conversion, signal enhancement, or a combination thereof. The optical isolation between input and output allows this to be used to eliminate grounding loops in modules, common mode signal suppression and noise pickup reduction.

The module power supply is separated to form a full 3-way (input, output, power) isolation. API 4380 G Inputs and outputs External rotary and slide switches can be configured in the field in the following ways.

Common range Settings are found on the module label. The most common ranges are built-in and can be selected from a table on the module, but virtually unlimited combinations are possible. Consult the factory for specific areas of assistance.

The built-in 18 VDC unregulated loop excitation power supply can be used to power passive input devices.

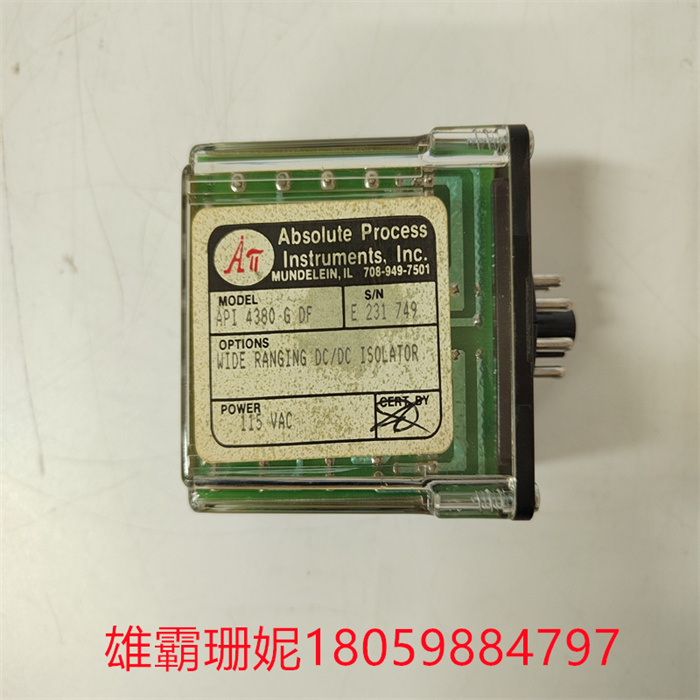

API4380G-ABSOLUTE module

The debugging of PLC control system program generally includes two parts: 1/0 terminal test and system debugging. Good debugging steps are conducive to accelerating the process of assembly debugging

l/O terminal test

Use a manual switch to temporarily replace the field input signal, and manually check and verify the PLC input terminals one by one. The indicator point of the PLC input terminal indicates normal: otherwise, the wiring or I/O point should be checked. Bright,

We can write a small program, in the case of good output power supply, check whether all PLC output terminal indicators are fully bright. The indicator light of the PLC input terminal is on, indicating normal. On the contrary, check the wiring or I/O spots

System debugging

System debugging should be connected to the power supply, external circuit and input and output terminals according to the control requirements, and then load the program in the PLC, run the PLC for debugging. Connect the PLC to the field equipment. Before the formal commissioning, the entire PLC control system is fully inspected, including power supply, ground wire, equipment connection wire, I/0 wire, etc. Power can be delivered if the entire hardware connection is correct.

ABSOLUTE API4380-G 接受DC电压或电流输入
