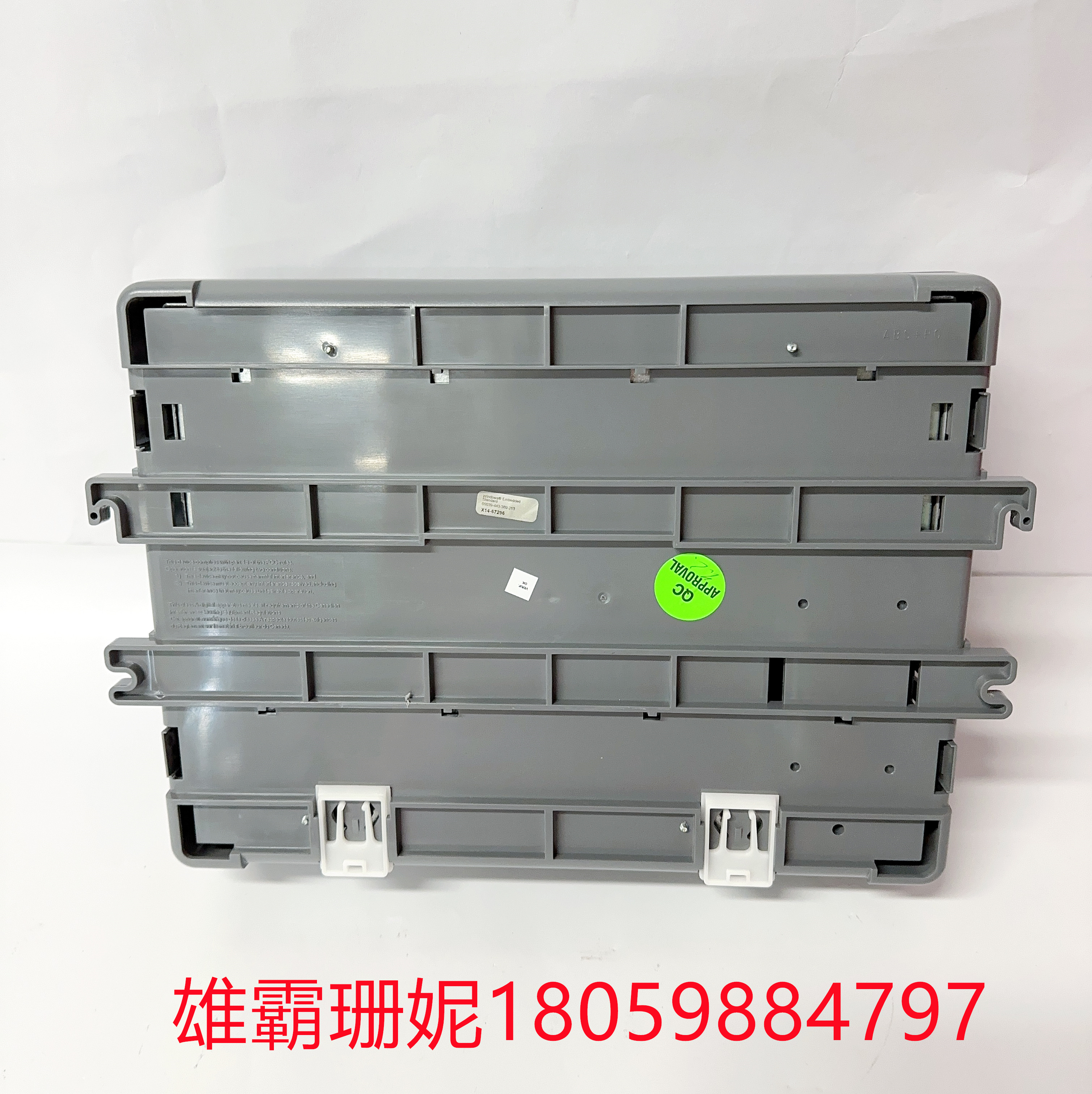

Johnson MS-NAE5510-2网络控制

【功能描述】

MS-NAE5510-2(MSNAE55102)是一款带有N2总的Metasys MS系列网络控制。电源电压-般为24VAC，但可在20-30VAC电压范围内工作，而免费频率为标准的50/60Hz。MS-NAE5510-2网络控制器的功耗为50VA。闪存为4GB，SDRAM为1GB。

MS-NAE5510-2网络控制器允许本产品与其他系统连接的端口有:以太网、RS-485、RS-232和USB。以太网端口可以连接到适当的电缆，该电缆的未端有这个连接器，即R-45，这是一个八针连接器，波持率为10Mbps，也可以是100Mbps甚至1,000Mbps。MS-NAE5510-2网络控制/器有六个串口，其中两为RS-485，两为RS-232-C，后两为USB。RS-485端口有四种不同的波持率，范围从9.6k到76.8k，RS-232C端口需要适的电缆和具有九个引脚的连接器。然后MS-NAE5510-2终端控制器上的USB端口必须使用适用于USB的连接器。

Johnson MS-NAE5510-2工业用单片机;

非易失性固态闪存，用于存储所有的程序和数据

标准USB串行接口;

电光备份以保护见不入从的数话，在电后彩其布入汉存

采用后备电池的实时计时装置;

电源配有发光二极管用于提醒，出现问题后易更换可选的内置调制解调器

可拆式螺丝固定终端24VAC电源，现场网络总线连接用于RS-485-C的标准9针D型串行接口;

用于内置调制解调器的RJ-11型电话线连接装置用于连接以太网的RJ-45型连接装置

每个NAE35系列型号产品都需要一个24VAC电源并且包含一个RS-232-C串口一个USB串口，一个以太网端口和一个MS-BAT1020-0数据保护电池。

支持一条N2或BACnet MS/TP(RS-485)总线;包括一个为可选择的外置调制解调器预留的额外RS-232-C串行端口;支持一条最多拥有50个设备的N2或BACnetMS/TP总线。

Johnson  MS-NAE5510-2网络控制

Ms-nae5510-2 (MSNAE55102) is a Metasys MS series network control with N2 total. Power supply voltage - generally 24VAC, but can operate in 20-30VAC voltage range, while the free frequency is standard 50/60Hz. The power consumption of the MS-NAE5510-2 network controller is 50VA. The flash memory is 4GB and the SDRAM is 1GB.

The MS-NAE5510-2 Network controller allows this product to connect to other systems through ports: Ethernet, RS-485, RS-232, and USB. The Ethernet port can be connected to the appropriate cable that has this connector at the wrong end of the cable, which is the R-45, which is an eight-pin connector with a wave holding rate of 10Mbps, or it can be 100Mbps or even 1,000Mbps. The MS-NAE5510-2 network control/controller has six serial ports, two of which are RS-485, two are RS-232-C, and the last two are USB. The RS-485 port has four different wave holding rates, ranging from 9.6k to 76.8k, and the RS-232C port requires a suitable cable and a nine-pin connector. Then the USB port on the MS-NAE5510-2 terminal controller must use a connector suitable for USB.

Johnson MS-NAE5510-2 Industrial microcontroller;

Non-volatile solid-state flash memory for storing all programs and data

Standard USB serial interface;

Electro-optical backup to protect the invisible number of words, after the cable color cloth into the memory

Real-time timing device with backup battery;

The power supply is equipped with LED for warning, and the optional built-in modem is easy to replace in case of problems

Detachable screw mounted terminal 24VAC power supply with field network bus connection to standard 9-pin Type D serial interface for RS-485-C;

Type RJ-11 telephone line connector for built-in modem Type RJ-45 connector for Ethernet connection

Each NAE35 series model requires a 24VAC power supply and includes an RS-232-C serial port, a USB serial port, an Ethernet port, and an MS-BAT1020-0 data protection battery.

Support one N2 or BACnet MS/TP(RS-485) bus; Includes an additional RS-232-C serial port reserved for optional external modems; Supports one N2 or BACnetMS/TP bus with up to 50 devices.

Johnson  MS-NAE5510-2网络控制
