机架接口模块 3500/20 125744-02 支持多种通信协议

产品描述

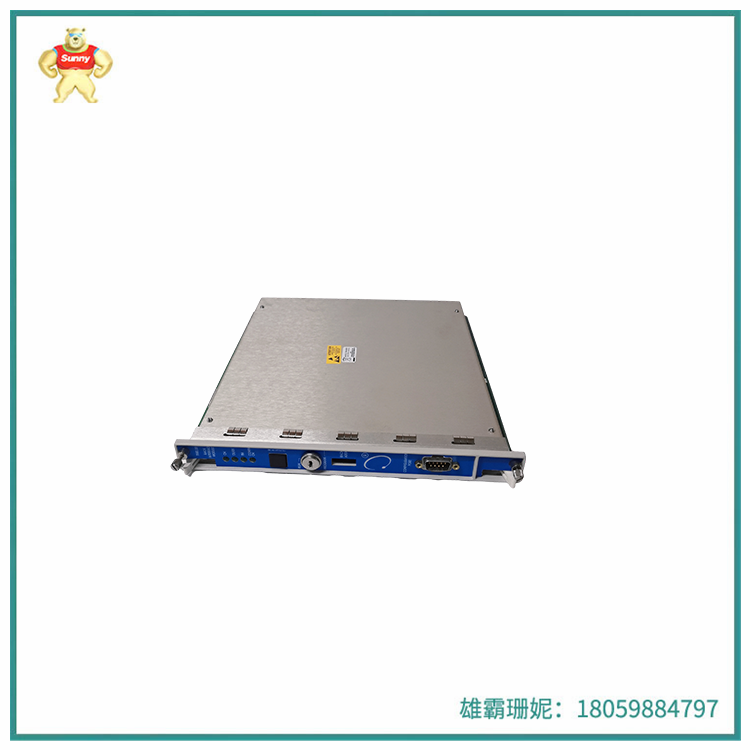

3500/20 125744-02 BENTLY机架接口模块用于连接机架内的各种设备，实现设备间的数据传输和控制。

特征

提供多个输入/输出接口，可连接各种类型的设备；

采用标准机架尺寸，方便安装；

具有过流保护和短路保护功能，保障设备安全；

支持多种通信协议，如Modbus、Profinet等；

可实现远程控制和监控。

3500/20 125744-02 BENTLY机架接口模块（RIM）是3500机架的主要接口。它支持用于配置机架和检索机械信息的专有协议。RIM必须位于机架的插槽1中（电源旁边）。

RIM支持兼容的Bently Nevada外部通信处理器，如TDXnet、TDIX和DDIX。虽然RIM提供了整个机架通用的某些功能，但RIM不是关键监控路径的一部分，对整个监控系统的正确、正常运行没有影响。每个机架需要一个RIM。

对于三模冗余（TMR）应用，3500系统需要TMR版本的RIM。除了所有标准RIM功能外，TMR RIM还执行“监测器通道比较”。3500 TMR配置实现使用监测器选项中指定的设置监测投票。使用此方法，TMR RIM连续比较三（3）个冗余监视器的输出。如果TMR RIM检测到其中一个监测器的信息不再在其他两个监测器信息的配置百分比内，它将标记监测器有错误，并在系统事件列表中放置一个事件。

Bently 3500/20 125744-02检测器模块

3500检测系统机架3500/05

3500检测系统接地模块3500/043500检测系统电源模块3500/15

3500检测系统瞬态数据接口3500/22M3500检测系统键相模块3500/25

3500检测系统16通道继电器模块3500/33

本特利3500电涡流地震式检测器模块3500/42M3500检测系统通信网关模块3500/92 136188-01

机架接口模块 3500/20 125744-02 支持多种通信协议

Product description

3500/20 125744-02 The BENTLY Rack interface module is used to connect various devices within the rack, enabling data transmission and control between devices.

trait

Provides multiple input/output interfaces to connect various types of devices;

Standard frame size, easy to install;

With over current protection and short circuit protection, to ensure the safety of equipment;

Support a variety of communication protocols, such as Modbus, Profinet, etc.

Remote control and monitoring can be achieved.

3500/20 125744-02 BENTLY Rack Interface Module (RIM) is the main interface of the 3500 rack. It supports proprietary protocols for configuring racks and retrieving mechanical information. The RIM must be located in slot 1 of the rack (next to the power supply).

RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While RIM provides certain features that are common throughout the rack, RIM is not part of the critical monitoring path and has no impact on the correct and normal operation of the overall monitoring system. One RIM is required per rack.

For three-mode redundancy (TMR) applications, the 3500 system requires the TMR version of RIM. In addition to all standard RIM features, TMR RIM performs a "monitor channel comparison." The 3500 TMR configuration implements monitoring voting using the Settings specified in the monitor options. Using this method, TMR RIM continuously compares the output of three (3) redundant monitors. If TMR RIM detects that information from one of the monitors is no longer within the configured percentage of information from the other two monitors, it flags the monitor with an error and places an event in the system event list.

Bently 3500/20 125744-02 Detector module

3500 Inspection system rack 3500/05

3500 Checking the system ground module 3500/043500 Checking the system power module 3500/15

3500 Detection system transient data interface 3500/22M3500 Detection system key phase module 3500/25

3500 Detection system 16 channel relay module 3500/33

Bentley 3500 Eddy current seismic detector module 3500/42M3500 Detection system Communication gateway module 3500/92 136188-01
