3307/01-00-30-10-02-00 Bently 接近探头 可以保护连接器

品牌：Bently

型号：3307/01-00-30-10-02-00

本特利Bently Nevada 3307/01-00-30-10-02-00 接近探头

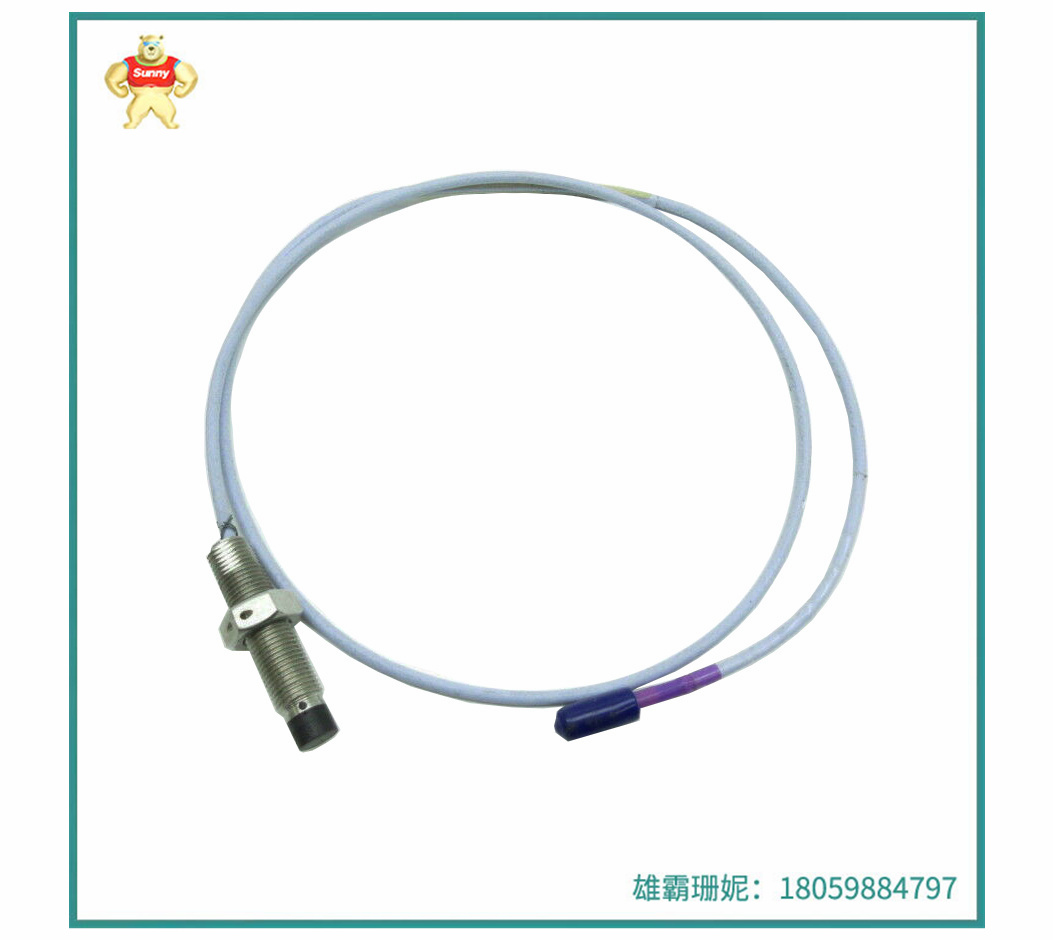

3307/01-00-30-10-02-00 是本特利内华达公司生产的 3300 系列接近探头。它是 3300 XL 11 毫米接近传感器系统的附件。探头、延长电缆和前置器传感器包含在 3300 XL 11 mm 接近传感器系统中。

探头的操作和存储温度范围为 -52°C 至 +177°C。3300 XL 探头旨在密封探头尖端和外壳之间的压差。Viton O 形圈用作探头的密封材料。在装运前，探头没有经过压力检查。如果您的应用需要压力密封测试，请联系我们的定制设计部门。所有换能器系统组件均使用镀金黄铜 ClickLoc 连接器。ClickLoc 连接可保护连接，防止其松动。

3307/01-00-30-10-02-00 是本特利内华达公司生产的 3300 系列接近探头。它是 3300 XL 11 mm 接近传感器系统的附件。探头、延长电缆和接近传感器包含在 3300 XL 11 mm 接近传感器系统中。

探头的操作和存储温度范围为 -52°C 至 +177°C。3300 XL探头用于密封探头尖端和外壳之间的压差。氟橡胶O形圈用作探头的密封材料。在装运之前，探头不进行压力检查。如果您的应用需要压力密封测试，请联系我们的定制设计部门。所有传感器系统组件均使用镀金黄铜 ClickLoc 连接器。ClickLoc 连接可保护连接，防止其松动。

获得专利的 TipLoc 成型技术可在探头尖端和探头主体之间形成牢固的附着力。探头电缆使用我们独特的 CableLoc 设计牢固地连接到探头尖端，其拉力为 330 N。

FluidLoc 电缆选项可用于 3300 XL 探头和延长电缆。此选项可防止油和其他液体通过电缆内部泄漏到机器中。它还可以保护连接器在潮湿或潮湿的环境中免受潮湿的影响。

建议所有安装都使用连接器保护器，这有助于保护环境。

3307/01-00-30-10-02-00 Bently 接近探头 可以保护连接器

Brand: Bently

Model: 3307/01-00-30-10-02-00

Bentley Bently Nevada 3307/01-00-30-10-02-00 Close probe

The 3307/01-00-30-10-02-00 is a Series 3300 proximity probe manufactured by Bentley Nevada. It is an accessory to the 3300 XL 11mm proximity sensor system. The probe, extension cable and presensor are included in the 3300 XL 11 mm proximity sensor system.

The probe is operated and stored at temperatures ranging from -52°C to +177°C. The 3300 XL probe is designed to seal the pressure difference between the probe tip and the housing. Viton O-rings are used as the sealing material for the probe. The probe was not pressure-checked prior to shipment. If your application requires pressure seal testing, please contact our custom design department. Gold-plated brass ClickLoc connectors are used for all transducer system components. ClickLoc connections protect connections from loosening.

The 3307/01-00-30-10-02-00 is a Series 3300 proximity probe manufactured by Bentley Nevada. It is an accessory to the 3300 XL 11 mm proximity sensor system. The probe, extension cable and proximity sensor are included in the 3300 XL 11 mm proximity sensor system.

The probe is operated and stored at temperatures ranging from -52°C to +177°C. The 3300 XL probe is used to seal the pressure difference between the probe tip and the housing. Fluororubber O-rings are used as sealing materials for the probe. The probe is not checked for pressure prior to shipment. If your application requires pressure seal testing, please contact our custom design department. Gold-plated brass ClickLoc connectors are used for all sensor system components. ClickLoc connections protect connections from loosening.

The patented TipLoc molding technology creates a strong adhesion between the probe tip and the probe body. The probe cable is securely attached to the probe tip using our unique CableLoc design with a pull force of 330 N.

FluidLoc cable options are available for 3300 XL probes and extension cables. This option prevents oil and other liquids from leaking into the machine through the inside of the cable. It also protects the connector from moisture in wet or humid environments.

Connector protectors are recommended for all installations to help protect the environment.
