3301/30-045-00-00  bently 键相器模块  提供精确的时间测量

品牌：bently

型号：30130-045-00-00

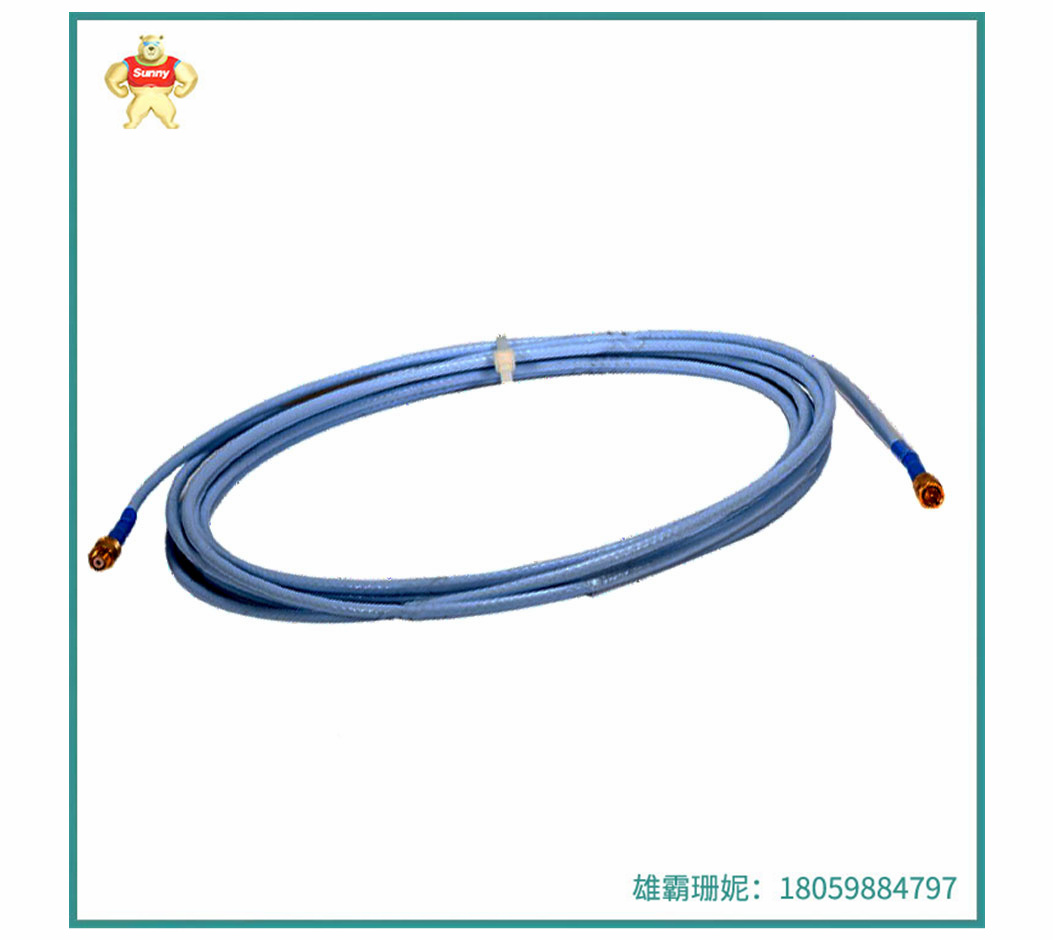

延伸电缆330130-045-00-00 bently本特利 3300XL

3500/25 改进的键相器模块是一个半高度，2 通道模块，用来为3500 框架中的监视器模块提供键相位信号。30130-045-00-00 此模块接收来自电涡流传感器或电磁式传感器的输入信号，并转换此信号为数字键相位信号，该数字信号可指示何时转轴上的键相位标记通过键相位探头。每个键相模块有2个输入通道，3500 机械保护系统可安装2个键相器模块，接收4个键相位信号。

注:  键相位信号是来自旋转轴或齿轮的每转一次或每转多次的脉冲信号，提供精确的时间测量。允许3500 监测器模块和外部故障诊断设备用来测量诸如1X 幅值和相位等向量参数。

每个键相器模块可接收2 个来自涡流传感器或电磁传感器的信号。30130-045-00-00 输入信号范围为-0.8V到-21.0V(非绝缘I/O 模块)和+5V到-11V(绝缘I/O 模块)。模块内可限幅，使信号不得超过此范围。无源电磁传感器要求轴转速大于200rpm(3.3Hz)。在框架前面板上，通过同轴接头，有2 个缓冲键相位输出信号。2 个缓冲键相位输出同样可在框架背面，通过欧式接头得到。前面板发光二极管 OK 指示灯: 可指示在键相器模块内检测到一个故障。

TX/RX 指示灯: 当键相器模块与框架接口模块(RIM)进行通讯时，发出指

示。

30130-045-00-00 键相器模块是一种用于检测旋转轴的位置和速度的装置。它通常由一个安装在旋转轴上的键相器和一个与该键相器配合使用的信号处理单元组成。

30130-045-00-00 键相器通常采用光电、磁性或机械等方式来检测旋转轴上的键槽或凸轮的相位，并将其转换为电信号输出。该信号处理单元则将检测到的电信号进行处理和解析，输出轴的位置和速度信息，以供控制系统使用。

根据不同的应用需求，键相器模块可以具有不同的输出类型和接口，例如模拟量输出、数字量输出、RS232接口、CAN总线接口等。它广泛应用于各种工业自动化设备、机器人、精密仪器等领域，用于实现设备的速度控制、位置控制和故障检测等功能。

3301/30-045-00-00  bently 键相器模块  提供精确的时间测量

Brand: bently

Model: 30130-045-00-00

Extension cable 330130-045-00-00 bently Bentley 3300XL

The 3500/25 improved key phase module is a half-height, 2-channel module designed to provide key phase signals to the monitor module in the 3500 frame. 30130-045-00-00 This module receives an input signal from an eddy current sensor or an electromagnetic sensor and converts this signal to a digital key phase signal that indicates when the key phase marker on the pivot passes through the key phase probe. Each key phase module has 2 input channels, and the 3500 mechanical protection system can install 2 key phase modules to receive 4 key phase signals.

Note: The key phase signal is a pulse signal from the rotating shaft or gear once or multiple times per revolution, providing accurate time measurement. Allows 3500 monitor modules and external fault diagnosis equipment to measure vector parameters such as 1X amplitude and phase.

Each key phaser module can receive 2 signals from eddy current sensors or electromagnetic sensors. The 30130-045-00-00 input signal ranges from -0.8V to -21.0V(uninsulated I/O modules) and +5V to -11V(insulated I/O modules). The module can be clipped so that the signal does not exceed this range. The shaft speed of a passive electromagnetic sensor must be greater than 200rpm(3.3Hz). On the front panel of the frame, through the coaxial connector, there are 2 buffer keys phase output signals. The 2 buffer key phase outputs are also available on the back of the frame via European joint. Front panel LED OK indicator: indicates that a fault has been detected in the key phaser module.

TX/RX indicator: Indicates when the key phase module is communicating with the Frame Interface module (RIM)

Yes.

The 30130-045-00-00 Key phaser module is a device for detecting the position and speed of the rotating axis. It usually consists of a key phaser mounted on a rotating axis and a signal processing unit used in conjunction with the key phaser.

The 30130-045-00-00 key phase detector usually uses photoelectric, magnetic or mechanical means to detect the phase of the keyway or CAM on the rotating shaft and convert it into an electrical signal output. The signal processing unit processes and analyzes the detected electrical signal, and outputs the position and speed information of the shaft for use by the control system.

According to different application requirements, the key phase module CAN have different output types and interfaces, such as analog output, digital output, RS232 interface, CAN bus interface, etc. It is widely used in various industrial automation equipment, robots, precision instruments and other fields, for the realization of equipment speed control, position control and fault detection functions.
