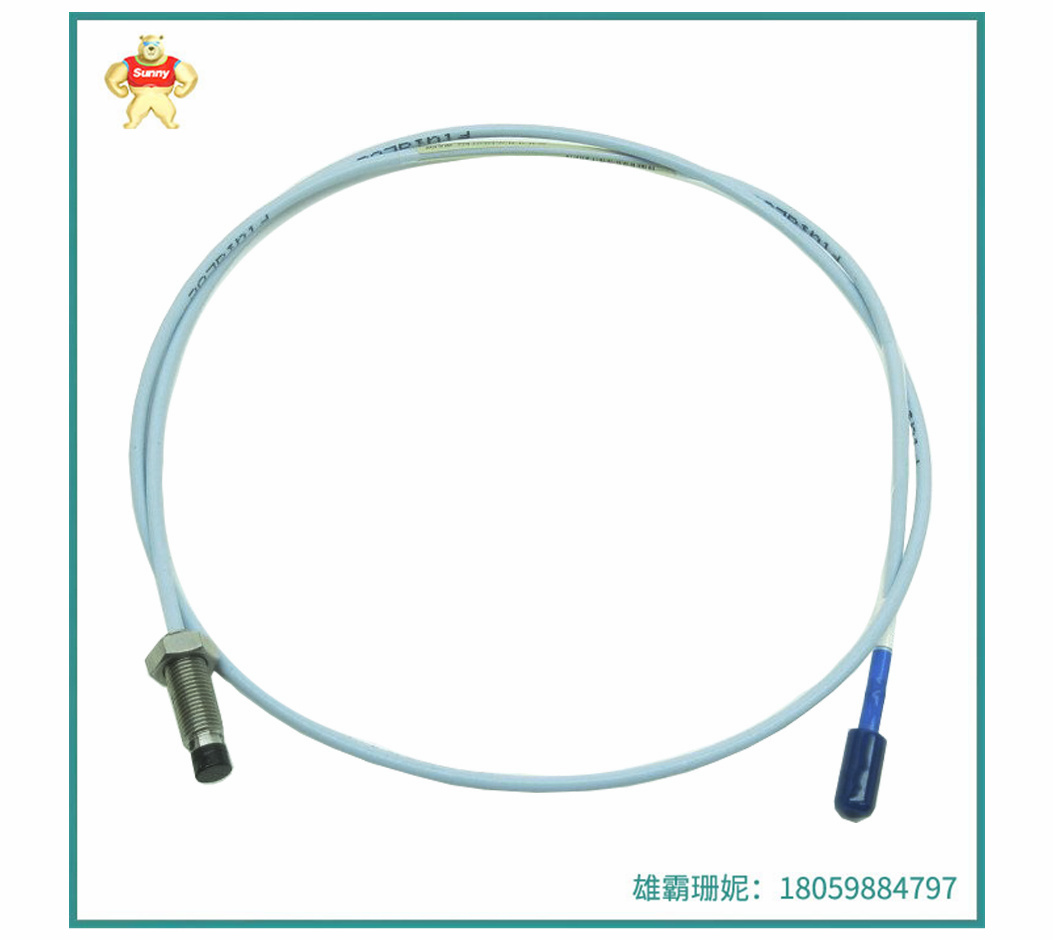

3301/01-00-14-10-02-00 BENTLY  接近探头 用于接近传感器系统

3301/01-00-14-10-02-00 3300 XL 8 mm 接近探头本特利内华达州制造商:本特利内华达

型号:3301/01-00-14-10-02-00

附加信息:3300 XL 8 mm

接近探头预计运输尺寸尺寸

: 263× 58 × 28mm重量:.4.3 kg

原产地:美国

3301/01-00-14-10-02-00 是一款 3300 XL 8 mm 接近探头，由 Bently Nevada 制造，用于接近传感器系统。它有一个 AISI 4140 钢目标、一个 10 k 负载、一个 -24 Vdc 电源，间隙为 1.27 毫米（50 密耳）。

3301/01-00-14-10-02-00 特点

探头尖端和主体使用专有的 TipLoc 成型工艺更好地连接。用于探头的电缆采用专有的 CableLoc 设计，将电缆与探头尖端之间的连接强度提高到 330 N （75 lbf）。

3300 XL 探头上的 ClickLoc 连接器是镀金的，耐腐蚀。这些连接器只需要用手拧紧，专门设计的锁定机制可防止它们滑落。无需特殊工具即可安装或拆卸这些连接器。

8 mm 探头将探头线圈封装在模制 PPS 塑料探头尖端中，厚度更大。因此，探头变得更加坚固。探头主体直径的增加也提供了更坚固、更耐用的外壳。为了最大限度地防止物理虐待，请尽可能使用 8 毫米探头。

特性

长度：1.0 米（3.3 英尺）

重量： 0.323 kg

存储温度：-51 °C 至 +177 °C（-60 °F 至 +351 °F）

常见问题

Q:您可以送货的时间是什么时候?

答:一旦收到您的付款，我们将进行交付。

Q:如果产品不能工作，可以退货吗?答:我们提供—年保修。

问:获得物品有多容易?

答:新品不再连续生产，因此供应稀缺。然而，我们专注于采购难以找到的产品，尽管交货时间各不相同，但平均在5-7个工作日之间。

问:商品的典型价格是多少?

答:厦门雄霸电子商务有限公司始终为客户提供极具竞争力的优质服务和价格。交货和可用性要求确实会影响定价。

3301/01-00-14-10-02-00 BENTLY  接近探头 用于接近传感器系统

3301/01-00-14-10-02-00 3300 XL 8 mm Approach Probe Bentley Nevada Manufacturer: Bentley Nevada

Model :3301/01-00-14-10-02-00

Additional information :3300 XL 8 mm

Dimensions close to the expected transport dimensions of the probe

: 263× 58 × 28mm Weight:.4.3kg

Country of Origin: USA

The 3301/01-00-14-10-02-00 is a 3300 XL 8 mm proximity probe manufactured by Bently Nevada for proximity sensor systems. It has an AISI 4140 steel target, a 10 k load, a -24 Vdc power supply, and a gap of 1.27 mm (50 mil).

3301/01-00-14-10-02-00 Features

The probe tip and body are better connected using the proprietary TipLoc molding process. The cable for the probe uses the proprietary CableLoc design, which increases the connection strength between the cable and the probe tip to 330 N (75 lbf).

The ClickLoc connector on the 3300 XL probe is gold-plated and corrosion resistant. These connectors only need to be tightened by hand, and a specially designed locking mechanism prevents them from slipping. These connectors can be installed or removed without special tools.

The 8 mm probe encapsulates the probe coil in a molded PPS plastic probe tip for greater thickness. As a result, the probe becomes more robust. The increase in the diameter of the probe body also provides a stronger and more durable housing. To maximize the protection against physical abuse, use an 8mm probe whenever possible.

peculiarity

Length: 1.0 m (3.3 ft)

Weight: 0.323 kg

Storage temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Q&A

Q: When can you deliver?

A: Once we receive your payment, we will make delivery.

Q: Can I return the product if it doesn't work? A: We offer a - year warranty.

Q: How easy is it to get items?

A: New products are no longer in continuous production, so supply is scarce. However, we focus on sourcing hard-to-find products, and although delivery times vary, they average between 5-7 business days.

Q: What is the typical price of an item?

A: Xiamen Xiongba E-commerce Co., Ltd. has always provided customers with highly competitive quality services and prices. Delivery and availability requirements do affect pricing.
