规格
产品编号: 135137-01
制造商: Bently Nevada
系列: 3500
产品类型:带内部端接
的 I/O 模块
可用性: 有现货
生产国:美国尺寸
:241
mm x 24.4 mm x 99.1 mm
重量: 0.44 kg

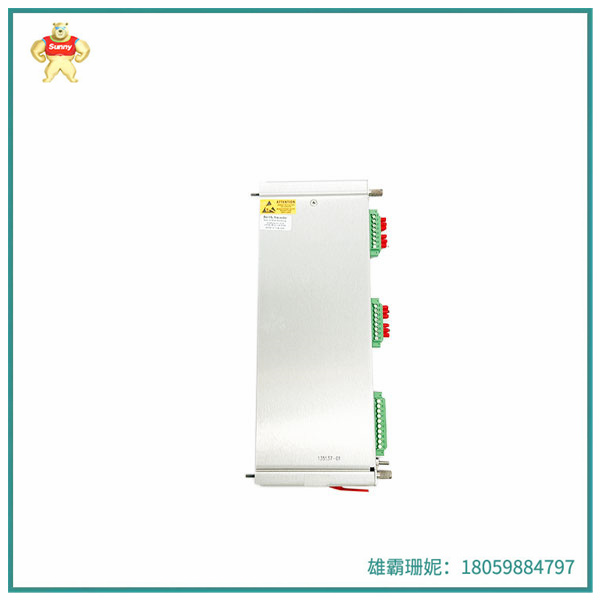

Bently 135137-01端子I/O 模块 馈线管理继电器、
135137-01 是带有内部终端的位置 I/O 模块,可与前置器、RPT 或 DC LVDT 一起使用。它由本特利内华达开发。它是 3500/45 监控系统的一部分。该位置监视器是一个 4 通道设备,可以接收来自旋转电位计、接近传感器、直流线性可变差动变压器、交流线性可变差动变压器和旋转位置传感器 (RPT) 的输入。
本特利Bently 135137-01功能说明:
Position Monitor 的主要功能是提供以下功能:
通过不断地将监控参数与预定义的警报设定点进行比较以触发警报,从而保护机器。
操作和维护人员的重要机器知识
本特利Bently 135137-01特点:
Bently Nevada 3500/45 位置监视器有四个通道,可以接受来自接近传感器、旋转位置传感器 (RPT)、直流线性可变差动变压器 (DC LVDT)、交流线性可变差动变压器 (AC LVDT) 和旋转电位计的输入。
该监控器的主要功能是通过不断地将监控参数与配置的警报设定点进行比较来驱动警报并收集用于操作和维护的关键机器信息,从而保护您的机器。
监视器在将输入与用户可编程警报进行比较之前对其进行处理。监控通道是成对编程的,一次最多可以执行两个这样的功能。
例如,通道 1 和 2 可以执行一种功能,而通道 3 和 4 可以执行相同或不同的功能。
本特利Bently 135137-01产品属性:
4通道模块
接受接近传感器、RPT、DC LVDT、AC LVDT 和旋转电位计作为输入。
持续比较监控参数以保护机器
监控关键机器数据以进行操作和维护。
本特利3500/25键相器模块上一个半高度、双通道模块,该模块用于给3500框架的监测模块提供键相信号。这个模块接收来自电涡流传感器或者电磁传感器的输入信号,并且将该信号转换为数字键相信号,该信号在当轴上的键相位标记在键相传感探头之下时指示出来。3500监测系统可以接收4个键相信号。每个键相信号都是一个数字同步信号脉冲、用于监测模块和外部诊断设备测量矢量参数诸如1X倍频振幅和相位。
specification
Product Number: 135137-01
Manufacturer: Bently Nevada
Series: 3500
Product type: with internal termination
I/O module
Availability: In stock
Country of manufacture: United States dimensions
: 241
mm x 24.4mm x 99.1mm
Weight: 0.44kg
Bently 135137-01 Terminal I/O module feeder management relay,
The 135137-01 is a positional I/O module with an internal terminal that can be used with a preprocessor, RPT, or DC LVDT. It was developed by Bentley Nevada. It is part of the 3500/45 monitoring system. The position monitor is a 4-channel device that can receive input from a rotary potentiometer, proximity sensor, DC linear variable differential transformer, AC linear variable differential transformer, and rotary position sensor (RPT).
Bentley Bently 135137-01 Function Description:
The main function of the Position Monitor is to provide the following functions:
The machine is protected by constantly comparing monitoring parameters to predefined alarm set points to trigger alarms.
Essential machine knowledge for operation and maintenance personnel
Bentley Bently 135137-01 Features:
The Bently Nevada 3500/45 position monitor has four channels and can accept input from proximity sensors, rotary position sensors (RPT), DC linear variable differential transformers (DC LVDT), AC linear Variable differential transformers (AC LVDT), and rotary potentiometers.
The main function of the monitor is to protect your machine by constantly comparing monitoring parameters to configured alarm setpoints to drive alarms and collect critical machine information for operation and maintenance.
The monitor processes the input before comparing it to a user-programmable alert. Monitoring channels are programmed in pairs and can perform up to two such functions at a time.
For example, channels 1 and 2 can perform one function, while channels 3 and 4 can perform the same or different functions.
Bentley Bently 135137-01 Product Properties:
4-channel module
Accepts proximity sensors, RPT, DC LVDT, AC LVDT, and rotary potentiometers as inputs.
Constantly compare monitoring parameters to protect the machine
Monitor critical machine data for operation and maintenance.
A half-height, dual-channel module on the Bentley 3500/25 key phaser module, which is used to provide key trust signals to the monitoring module of the 3500 frame. This module receives an input signal from an eddy current sensor or an electromagnetic sensor and converts this signal into a digital key trust signal, which is indicated when the key phase marker on the axis is under the key transducers. The 3500 monitoring system can receive 4 key trust signals. Each key signal is a digital synchronization signal pulse used by the monitoring module and external diagnostic equipment to measure vector parameters such as 1X frequency doubling amplitude and phase.
