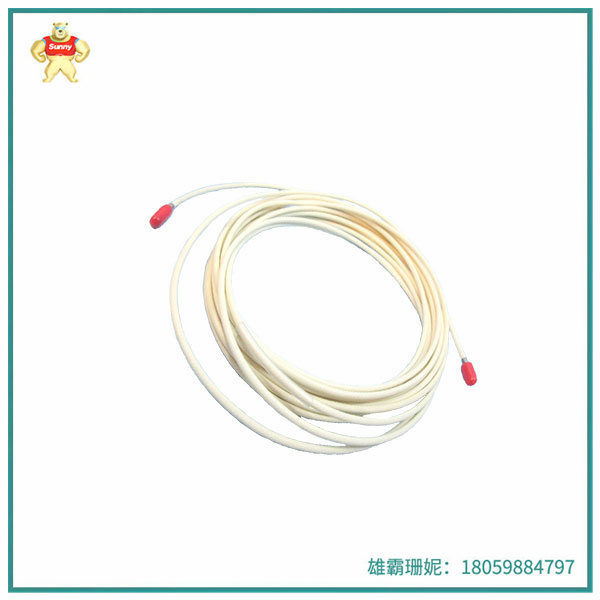

21747-045-00 Bently 延长电缆 用于接近传感器系统

品牌 ： Bently Nevada

商品编号 ： 21747-045-00

产品类型 ： Proximitor Probe Extension Cable

美国制造

可以添加原产地证书（COO）

电缆长度选项：045 = 4.5 米（177 英寸）

护甲选项：00 = 无护甲

装运重量 ： 2 Kg

4通道继电器模块是一个全高模块，提供四个继电器产出。任何数量的4通道继电器模块可以放置在任何机架接口模块右侧的插槽。4通道的每个输出继电器模块可以独立编程，以执行所需的表决逻辑。4通道继电器模块上使用的每个继电器都包括“报警驱动逻辑”。报警驱动逻辑使用“与”和“或”逻辑进行编程，并可利用来自任何监控通道或任何机架中监视器通道的组合。该警报驱动逻辑编程使用3500框架配置软件来满足特定的应用程序的需求。注意:三模冗余(TMR)应用需要使用133323-01TMR继电器模块。

21747-045-00 - PROXIMITOR 探头延长电缆

21747-045-00 是由 Bently Nevada 制造的 Proximitor Probe 延长电缆，用于接近传感器系统。非接触式、间隙电压比 Bently Nevada 7200 5mm / 8mm 系列接近传感器系统可评估探头尖端与被观察目标之间的静态和动态距离。广泛用于任何需要精确、非接触式位移测量的情况。然而，旋转和往复式机械上的轴位置和振动测量是最常见的用途。它们几乎可以与任何类型的机器配合使用，包括燃气轮机和蒸汽轮机、泵、离心机、压缩机以及电动机和发电机。该系统符合 API 670 标准，线性测量范围为 80 密耳（2 毫米）。

21747-045-00 特点

当带有集成引线和延长电缆的探头组合在一起时，从探头尖端到接近器的系统长度应为 5 米或 9 米。为了匹配典型的延长电缆长度，探头配备了各种长度的引线。

具有相同零件号的接近器，以及相同长度的探头和电缆，可以互换使用。

不锈钢制成的装甲可增强保护。它提供了更好的保护，防止身体虐待。

特性

0 Hz （DC） 至 10 kHz 作为频率响应

互不干扰

带间隙电压传感器的系统

计算动态和静态距离

21747-045-00 Bently 延长电缆 用于接近传感器系统

Brand: Bently Nevada

Item Number: 21747-045-00

Product type: Proximitor Probe Extension Cable

Made in the USA

Certificate of Origin (COO) can be added

Cable length options: 045 = 4.5 m (177 in)

Armor options: 00 = No armor

Shipping weight: 2 Kg

The 4-channel relay module is a full height module that provides four relay outputs. Any number of 4-channel relay modules can be placed in the slot on the right side of any rack interface module. Each of the 4-channel output relay modules can be programmed independently to perform the required voting logic. Each relay used on the 4-channel relay module includes "alarm drive logic". The alarm driver logic is programmed using "and" and "or" logic and can be used from a combination of any monitor channel or monitor channel in any rack. The alert driver logic is programmed using 3500 framework configuration software to meet the needs of specific applications. Note: Three-mode redundancy (TMR) applications require the use of the 133323-01TMR relay module.

21747-045-00-PROXIMITOR probe extension cable

The 21747-045-00 is a Proximitor Probe extension cable manufactured by Bently Nevada for use in proximity sensor systems. The non-contact, gap voltage ratio Bently Nevada 7200 5mm / 8mm series proximity sensor system evaluates the static and dynamic distance between the probe tip and the object being observed. It is widely used in any situation that requires accurate, non-contact displacement measurement. However, shaft position and vibration measurements on rotating and reciprocating machinery are the most common uses. They can be used with virtually any type of machine, including gas and steam turbines, pumps, centrifuges, compressors, and electric motors and generators. The system is API 670 compliant and has a linear measurement range of 80 mil (2 mm).

21747-045-00 Features

When probes with integrated leads and extension cables are combined, the system length from the probe tip to the approximator should be 5 or 9 meters. To match the typical extended cable length, the probe is equipped with various lengths of leads.

Approximators with the same part number, and probes and cables of the same length, can be used interchangeably.

Armor made of stainless steel enhances protection. It provides better protection against physical abuse.

peculiarity

0 Hz (DC) to 10 kHz as frequency response

non-interference

Systems with gap voltage sensors

Calculate dynamic and static distances
