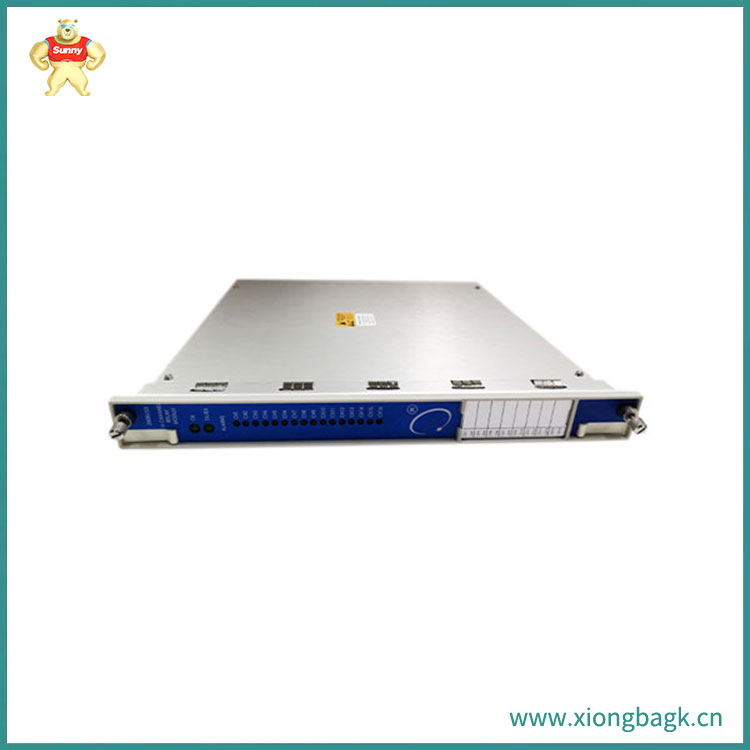

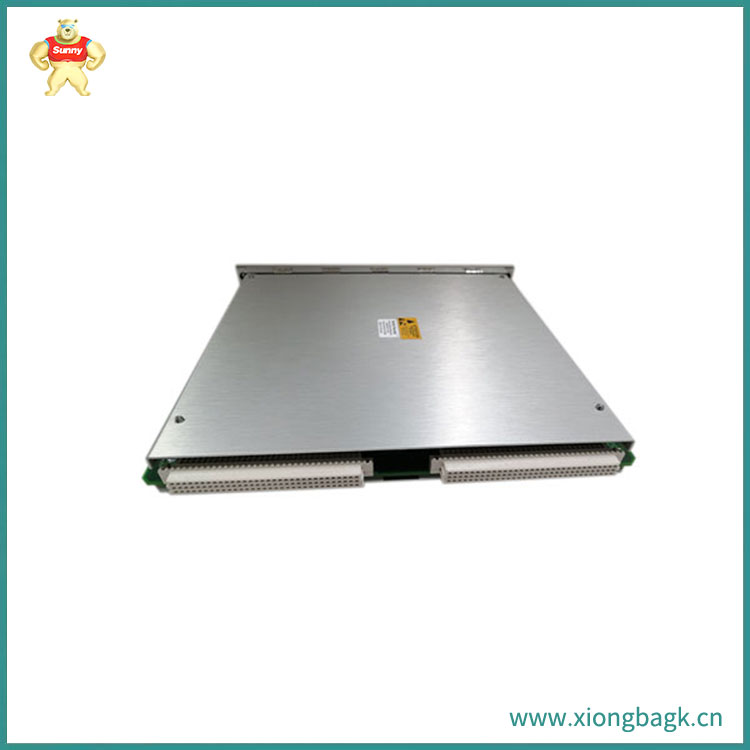

3500/33 16 通道继电器模块是一个全高模块,提供 16 个继电器输出。您可以将任意数量的 16 通道继电器模块放置在瞬态数据接口 (TDI) 模块右侧的任何插槽中。
3500/33 16 通道继电器模块的每个输出都可以独立编程以执行投票逻辑。
模块的每个继电器都包括报警驱动逻辑。报警驱动器逻辑编程使用 AND 和 OR 逻辑,并可能使用以下逻辑:
l 报警输入(警报和危险状态)
l 不正常
来自任何监控通道或机架中监控通道任意组合的单个测量变量
您可以使用 3500 机架配置软件对报警驱动器进行编程。
The 3500/33 16 Channel Relay Module is a full height module that provides 16 relay outputs. You can place any number of 16 channel relay modules in any slot on the right side of the Transient Data Interface (TDI) module.
Each output of the 3500/33 16 channel relay module can be independently programmed to execute voting logic.
Each relay in the module includes alarm drive logic. Alarm driver logic programming uses AND and OR logic, and may use the following logic:
Alarm inputs (alarm and danger states)
Abnormal
Single measurement variable from any monitoring channel or any combination of monitoring channels in the rack
You can program the alarm driver using the 3500 rack configuration software.
