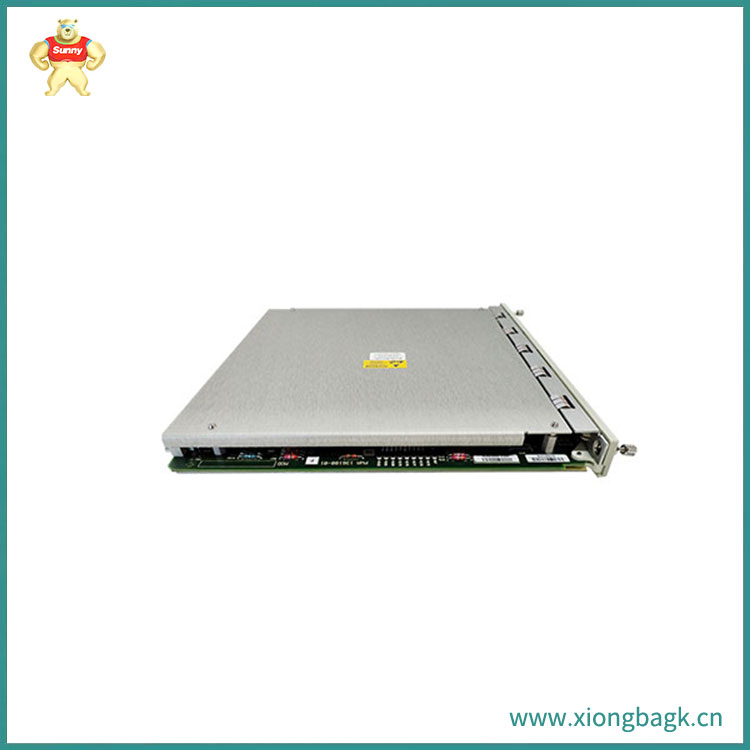

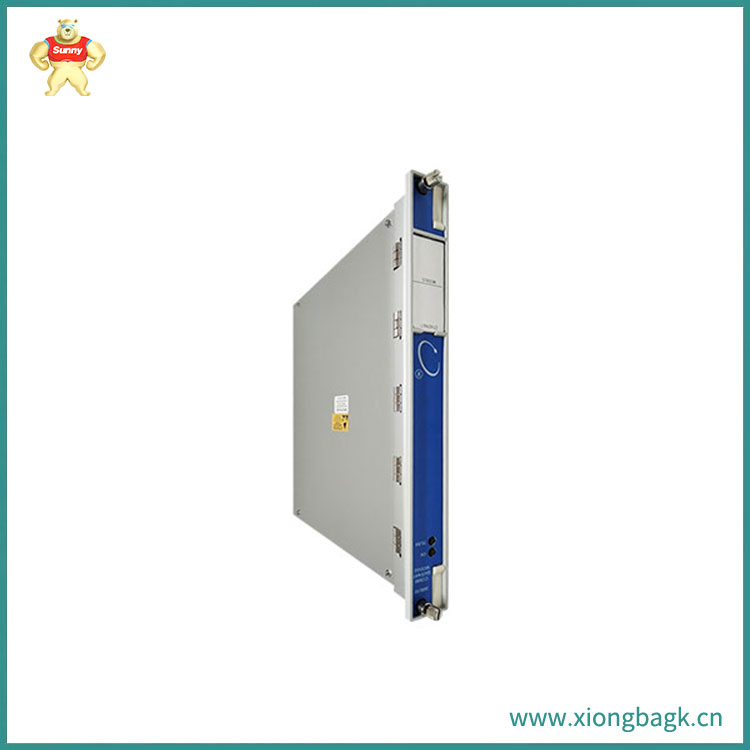

3500/92是由本特利内华达开发的通信网关模块

3500/92是由本特利内华达开发的通信网关模块。通信网关模块提供广泛的串行（RS232/RS422/RS485）和以太网TCP/IP通信功能，用于将所有机架监控值和状态与过程控制和其他自动化系统集成。此外，它还支持与数据采集软件和 3500 机架配置软件进行以太网通信。支持的协议包括：

• Modicon Modbus协议（通过串行通信）
• Modbus/TCP 协议（用于 TCP/IP 以太网通信的串行 Modbus 变体）
• 专有的本特利内华达协议（用于与3500机架配置和数据采集软件包进行通信）

特征

• 对于10BASE-T星形配置以太网网络，它的以太网连接是RJ45连接。除了主值 Modbus 寄存器外，该组件还支持通信接口、通信协议和其他功能。
• 主要值Modbus寄存器被可配置Modbus寄存器实用程序所取代，该实用程序现在可以提供相同的功能。

功耗

• 5.0 瓦（典型值），带 ModbusRS232/ RS422 I/O 模块
• 5.6 瓦（典型值），带 Modbus RS485 I/O 模块

数据类型

• 利用高速内部网络从机架中的其他模块收集信息，包括带有时间戳的当前测量值、模块状态和当前报警状态。
• 返回的确切数据类型取决于通道配置和模块类型。
  更新时间：3500 机架中所有模块的数据收集速率不会大于 1 秒，具体取决于机架的设计。

协议

BNC 主机协议
通过以太网 TCP/IP 与 3500 配置软件和 3500 数据采集和显示软件进行通信。

Modbus
基于 AEG Modicon 的 PIMBUS-300 参考手册。使用 RTU 传输模式或远程终端单元。

通信链路
以太网，10Mbps，符合IEEE802.3标准

协议以太网
TCP/IP 帧和 Modbus/TCP

连接
RJ-45（电话插孔样式），用于 10BASE-T 以太网布线

输出

OK LED
指示模块何时正常工作。

TX/RX 指示灯
指示系统何时与3500机架中的其它模块通信。

机架空间要求

• 显示器模块 - 1 个全高前插槽
• I/O 模块 - 1 个全高后插槽

主模块和 I/O 模块的环境限制

• 工作温度：-30 至 +65 摄氏度
• 储存温度：-40 至 +85 摄氏度
• 湿度：95%，无冷凝

以太网

• 通信 - 链路以太网、10Mbps 和 IEEE802.3 兼容
• 以太网 TCP/IP 帧和 Modbus/TCP 协议
• RJ-45（电话插孔式）连接器，用于 10BASE-T 以太网布线

3500/92 is a communication gateway module developed by Bently Nevada. The communication gateway module provides a wide range of serial (RS232/RS422/RS485) and Ethernet TCP/IP communication functions, used to integrate all rack monitoring values and status with process control and other automation systems. In addition, it also supports Ethernet communication with data collection software and 3500 rack configuration software. The supported protocols include:

Modicon Modbus protocol (via serial communication)

Modbus/TCP protocol (serial Modbus variant for TCP/IP Ethernet communication)

Proprietary Bentley Nevada protocol (for communication with 3500 rack configuration and data acquisition software packages)

features

For a 10BASE-T star configuration Ethernet network, its Ethernet connection is RJ45. In addition to the main value Modbus register, this component also supports communication interfaces, communication protocols, and other functions.

The main value Modbus register has been replaced by the configurable Modbus register utility, which can now provide the same functionality.

power waste

5.0 watts (typical) with ModbusRS232/RS422 I/O modules

5.6 watts (typical) with Modbus RS485 I/O module

data type

Utilize high-speed internal networks to collect information from other modules in the rack, including current measured values with time stamps, module status, and current alarm status.

The exact data type returned depends on the channel configuration and module type.

Update time: The data collection rate of all modules in the 3500 rack will not exceed 1 second, depending on the design of the rack.

agreement

BNC Host Protocol

Communicate with 3500 configuration software and 3500 data acquisition and display software through Ethernet TCP/IP.

Modbus

PIMBUS-300 reference manual based on AEG Modicon. Use RTU transmission mode or remote terminal unit.

communication link

Ethernet, 10Mbps, compliant with IEEE802.3 standard

Protocol Ethernet

TCP/IP frames and Modbus/TCP

connect

RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling

output

OK LED

Indicates when the module is working properly.

TX/RX indicator light

Indicates when the system communicates with other modules in the 3500 rack.

Rack space requirements

Display module -1 full height front slot

I/O module -1 full height rear slot

Environmental limitations of the main module and I/O module

Working temperature: -30 to+65 degrees Celsius

Storage temperature: -40 to+85 degrees Celsius

Humidity: 95%, non condensing

Ethernet

Communication - Link Ethernet, 10Mbps, and IEEE802.3 compatible

Ethernet TCP/IP frames and Modbus/TCP protocol

RJ-45 (telephone jack type) connector for 10BASE-T Ethernet cabling
