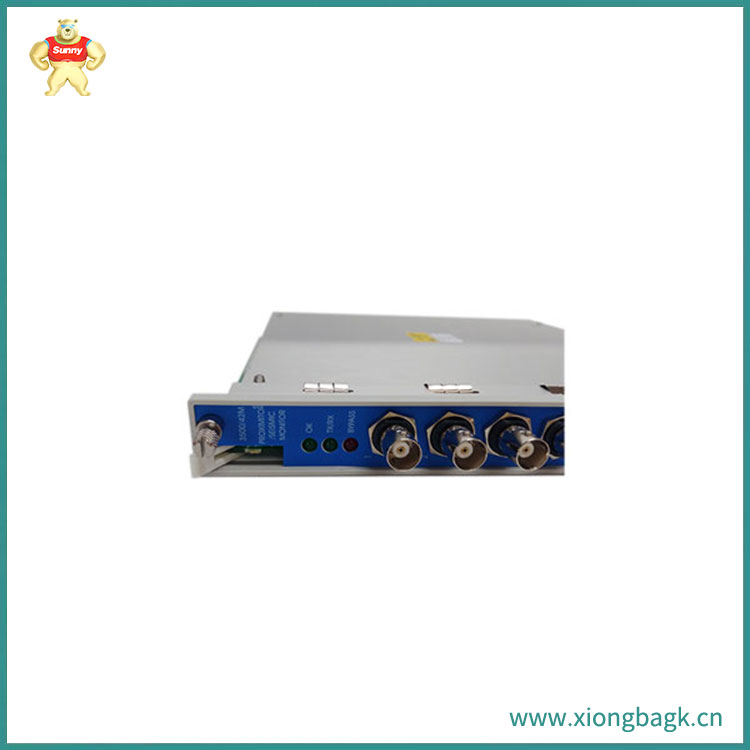

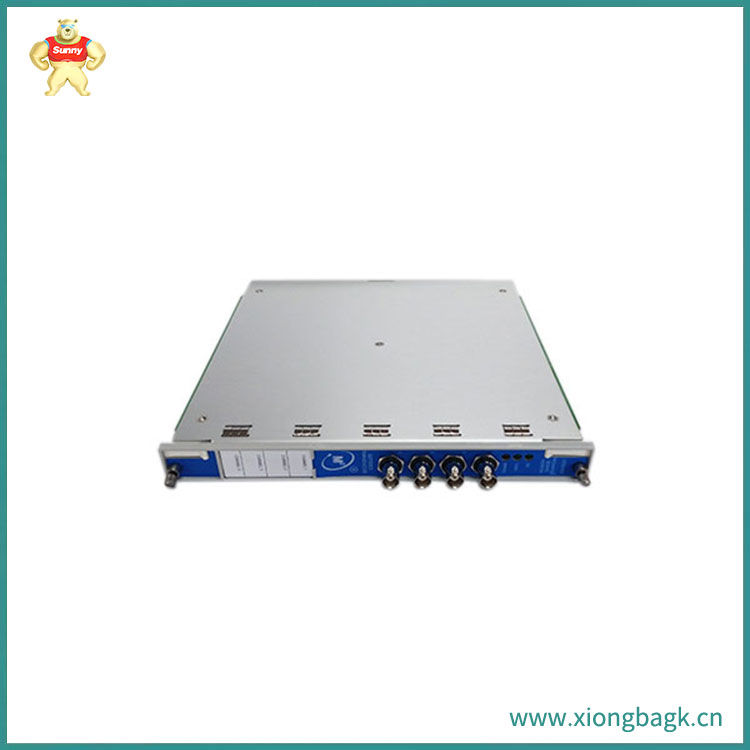

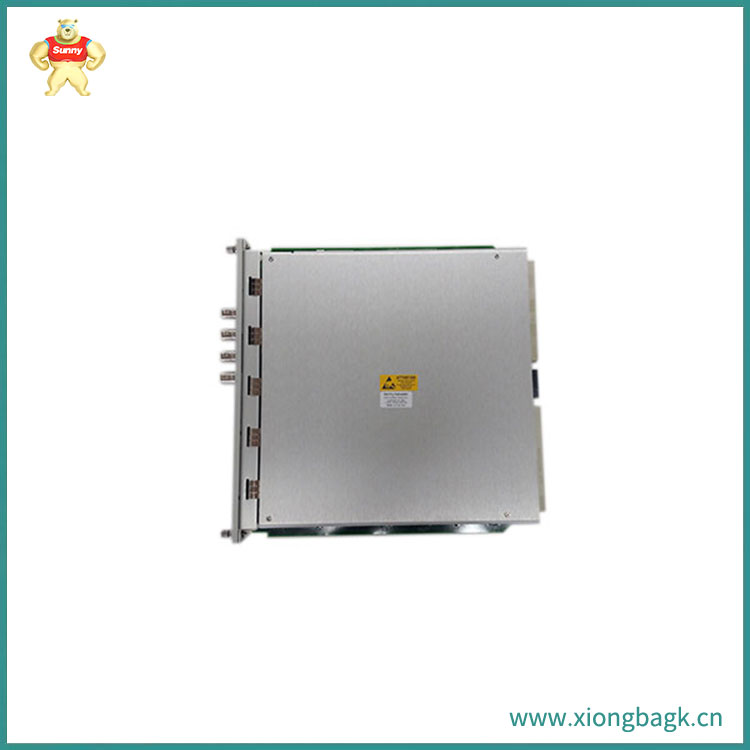

3500/40M是由本特利内华达设计和开发的接近监视器

功能说明

3500/40M是由本特利内华达设计和开发的接近监视器。3500/40M 接近监测器是一款四通道监测器，可接受来自本特利内华达电涡流传感器的输入，调理信号以提供各种振动和位置测量，并将调理信号与用户可编程报警进行比较。使用 3500 机架配置软件，用户可以对 3500/40M 的每个通道进行编程，以执行以下任何功能：

• 偏心
• 径向振动
• 雷巴姆
• 推力位置
• 差速膨胀

特征

• Proximitor 监视器的主要功能是通过连续将监控参数与配置的报警设定点进行比较来驱动报警，从而提供机械保护。
• 操作和维护人员的重要机器数据 根据配置，每个通道通常会调节其输入信号以生成称为静态值的各种参数。您可以为每个活动静态值设置警报和危险设定值，也可以为任意两个活动静态值设置警报和危险设定值。
• 监控通道成对编程。监控通道最多可同时执行其中两个功能。通道 1 和 2 可以做一件事，而通道 3 和 4 可以做其他事情。

警报

报警设定点

• 使用机架配置软件为监视器测量的每个值设置警报级别，并为监视器测量的任意两个值设置危险设定值。
• 对于每个测量值，报警可以设置为满量程的 0% 到 100%。当满量程范围超过传感器的范围时，设定值会受到传感器范围的限制。

报警设定值的准确性

• 所需值的 0.13% 以内

产品属性

• 四通道监视器
• 接受来自电涡流传感器的输入

• 各种静态值参数




•

•

•

•

•

• Function Description

• The 3500/40M is a proximity monitor designed and developed by Bently Nevada. The 3500/40M Proximity Monitor is a four channel monitor that can accept input from Bentley Nevada eddy current sensors, modulate signals to provide various vibration and position measurements, and compare the conditioned signals with user programmable alarms. Using the 3500 rack configuration software, users can program each channel of the 3500/40M to perform any of the following functions:

• eccentric

• Radial vibration

• Rebam

• Thrust position

• Differential expansion

• features

• The main function of a Proximitor monitor is to drive alarms by continuously comparing monitoring parameters with configured alarm setpoints, thereby providing mechanical protection.

• The important machine data for operation and maintenance personnel is configured, and each channel typically adjusts its input signal to generate various parameters called static values. You can set alarm and danger settings for each activity's static value, or set alarm and danger settings for any two activity's static values.

• Paired programming of monitoring channels. The monitoring channel can perform up to two functions simultaneously. Channels 1 and 2 can do one thing, while channels 3 and 4 can do other things.

• alert

• Alarm Setpoint

• Use rack configuration software to set alarm levels for each value measured by the monitor, and set danger settings for any two values measured by the monitor.

• For each measurement value, the alarm can be set to 0% to 100% of full scale. When the full scale range exceeds the range of the sensor, the set value will be limited by the sensor range.

• Accuracy of alarm settings

• Within 0.13% of the required value

• Product attributes

• Four channel monitor

• Accept input from eddy current sensors

• Various static value parameters
