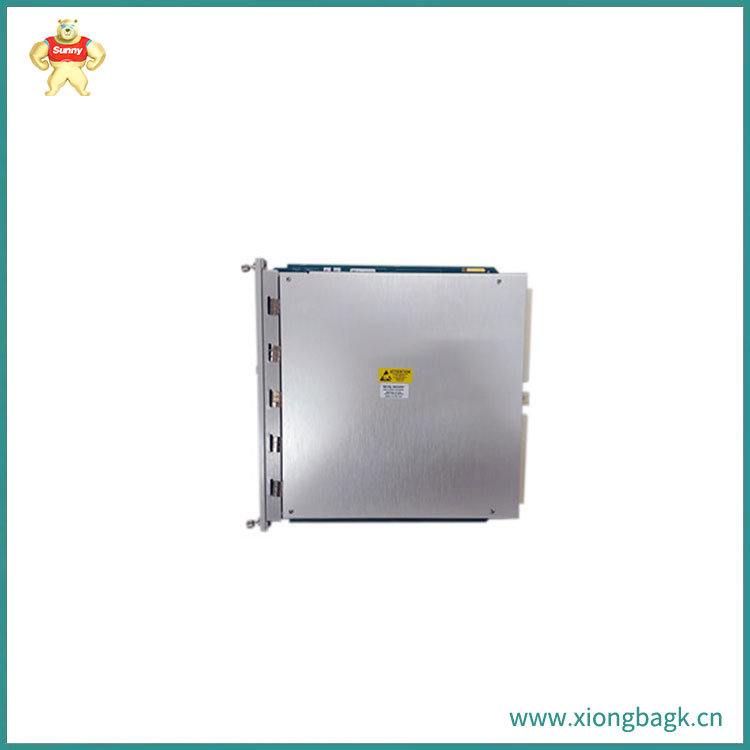

3500/22M瞬态数据接口（TDI)3500监测系统和兼容系统之间软件

3500/22M瞬态数据接口（TDI）是接口3500监测系统和兼容系统之间软件（系统1状态监测和诊断软件和3500系统配置软件）。TDI组合了3500/20机架接口模块的功能（RIM），具有通信的数据收集能力诸如TDXnet之类的处理器。TDI位于与3500机架。它与M系列监测器（3500/40M，3500/42M等）以连续收集稳定状态瞬态动态（波形）数据并传递该数据通过以太网链路连接到主机软件信息静态数据捕获能力是TDI的标准配置。但是，使用可选的通道启用磁盘将允许TDI捕捉动态和高分辨率瞬态数据也是如此。TDI包含通信3500机架内的处理器功能。

尽管TDI提供了某些通用功能整个机架，它不是关键监控路径的一部分，并且对整体的正确、正常运行没有影响机械自动保护监控系统。每一个3500机架需要一个TDI或RIM，它总是占据插槽1（在电源旁边）。

The 3500/22M Transient Data Interface (TDI) is the software that interfaces between the 3500 monitoring system and compatible systems (System 1 Status Monitoring and Diagnostic Software and 3500 System Configuration Software). TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with communication data collection capabilities such as processors such as TDXnet. TDI is located in the 3500 rack. It works with M-series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state transient dynamic (waveform) data and transmit it to the host software through an Ethernet link. The static data capture capability is a standard configuration of TDI. However, using optional channel enabled disks will allow TDI to capture dynamic and high-resolution transient data as well. TDI includes processor functions within the communication 3500 rack.

Although TDI provides certain general functions for the entire rack, it is not a part of the critical monitoring path and does not affect the correct and normal operation of the overall mechanical automatic protection monitoring system. Each 3500 rack requires a TDI or RIM, which always occupies slot 1 (next to the power supply).
