BENTLY-350022M-288055-01 数据接口模块 传感器系统

BENTLY 350022M 288055-01产品详情:

原产地:美国

品牌:BENTLY

型号:BENTLY-350022M-288055-01

最低订单数量:1项

本特利bently 3300XL 8mm BENTLY-350022M-288055-01传感器系统用于机械的轴振动、轴位移、键相位和转速测量。广泛应用于发电厂、炼油厂、化工厂、钢铁厂、水泵厂、风机厂等行业企业。本特利(Bently Nevada)振动传感器用于检测汽轮机、水轮机、鼓风机、压缩机、空分机、齿轮箱、水泵等大型旋转机械轴的振动在线测量和保护。

本特利bently 3300XL 8mm电涡流传感器系统包括:探头、延伸电缆、前置器

系统长度:5或9米(包括延长电缆)或1米(仅探头〕。

电源:无安全栅时要求-17.5vdc至-26vdc，电流最大为12mA,

线性范围:2mm

推荐的间隙设定值:1.27mm

灵敏度(ISF) : 7.87V/mm (200mV/mil)

频率响应:0-10kHz:从3300 XL前置器到监测器的最大长度为305米现场联线。

轴直径推荐最小:76.2mm (3in)

探头工作温度:标准探头-52°C至+177C;高温探头-52C至+218°C

延长电缴温度:标准电缆-52°C至+177C;高温电缆-52°C至+260°C

前置器工作温度:-52C至+100°C

线性范围、精度和温度稳定性。

所有3300 XL 8 mm BENTLY-350022M-288055-01接近传感器系统都提供了这一性能水平，并支持探头、延长电镪和位移检测器传感器的完全互换性,无需匹配或台架校准单个部件。

常用振动探头

3300 XL 8 mm 电涡流探头:

330101 3300 XL 8 mm探头,3/8-24 UNIF螺纹非铠装

330102 3300 XL 8 mm探头,3/8-24 UNF螺纹铠装

330103 3300 XL 8 mm探头, M10 x1螺纹,非铠装

330104 3300 XL 8 mm探头, M10 x1螺纹铠装

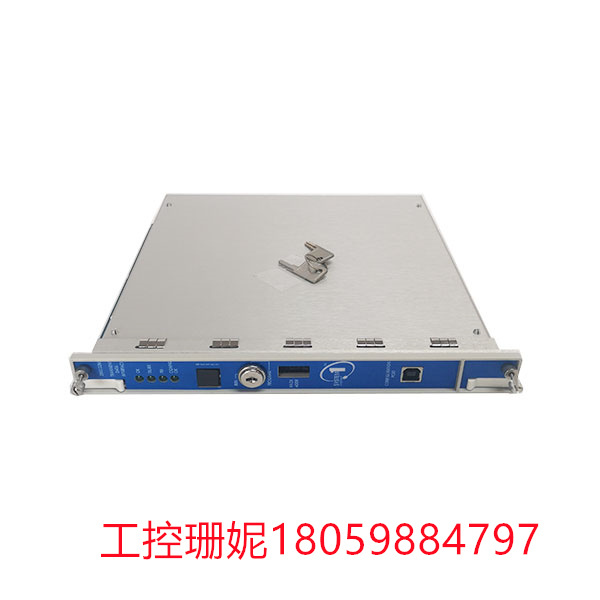

3500/22M框架接口模块是连接3500框架的基本接口。它支持本特利内华达公司专有协议，用作组态框架和收集机器信息。RIM必须安装在框架的槽位(与电源模块紧挨着)。

RIM提供一个连接，它支持当前本特利内华达通讯处理器(外部瞬态数据接口TDIX和外部动态数据接口DDIX).

RIM使用两种类型的I/O模块，即框架接口I/O模块和数据管理I/O模块。这些/O模块让你把主计算机和通讯处理器与3500框架连接起来，一次只能在RIM(盘装或架装框架中)的后面或RIM(壁挂式框架)的上面安装一个框架接口I/O模块。

3500/22MTDI模块和输入/输出模块的选型如下:3500/22-AXX-BXX-CXX

A:TDI模块类型

01标准(标谁监测应用)

02TMR(只用于要求三重模块冗余组态时)

B:输入/输出模块类型

0 110 base -T/100 base-TXI以太网输入/输出模块02100 base-FX(光纤）以太网输入/输出模块

C:批准机构选项

BENTLY-350022M-288055-01 数据接口模块 传感器系统

BENTLY 350022M 288055-01 Product Details:

Country of Origin: USA

Brand :BENTLY

Model :BENTLY-350022M-288055-01

Minimum order quantity :1 item

The bently 3300XL 8mm BENTLY-350022M-288055-01 sensor system is used for mechanical shaft vibration, shaft displacement, key phase and speed measurement. Widely used in power plants, oil refineries, chemical plants, iron and steel plants, pump plants, wind factories and other industries. Bently Nevada vibration sensors are used to detect online vibration measurement and protection of large rotating machinery shafts such as steam turbines, water turbines, blowers, compressors, air engines, gear boxes, and pumps.

Bentley bently 3300XL 8mm eddy current sensor system includes: probe, extension cable, preprocessor

System length :5 or 9 m (including extension cable) or 1 m (probe only).

Power supply: No safety grid requirements -17.5vdc to -26vdc, the current is up to 12mA,

Linear range :2mm

Recommended gap setting value :1.27mm

Sensitivity (ISF) : 7.87V/mm (200mV/mil)

Frequency response :0-10kHz: The maximum length from 3300 XL preprocessor to monitor is 305 m field connection.

Recommended minimum shaft diameter :76.2mm (3in)

Probe operating temperature: standard probe -52°C to +177C; High temperature probe -52C to +218°C

Extended power supply temperature: standard cable -52°C to +177C; High temperature cable -52°C to +260°C

Preprocessor operating temperature :-52C to +100°C

Linear range, accuracy and temperature stability.

All 3300 XL 8 mm BENTLY-350022M-288055-01 Proximity sensor systems offer this level of performance and support full interchangeability of probe, extension and displacement detector sensors without the need for matching or bench calibration of individual components.

Common vibration probe

3300 XL 8 mm eddy current probe:

330101 3300 XL 8 mm probe,3/8-24 UNIF thread unarmoured

330102 3300 XL 8 mm probe,3/8-24 UNF thread armouring

330103 3300 XL 8 mm probe, M10 x1 thread, non-armoured

330104 3300 XL 8 mm probe, M10 x1 thread armouring

The 3500/22M frame interface module is the basic interface to connect to the 3500 frame. It supports Bentley Nevada proprietary protocols and is used as a configuration framework and to collect machine information. The RIM must be installed in a slot in the frame (next to the PSU).

RIM provides a connection that supports current Bentley Nevada communications processors (External Transient Data Interface TDIX and External Dynamic Data Interface DDIX).

RIM uses two types of I/O modules, the Framework Interface I/O module and the data management I/O module. These /O modules allow you to connect the main computer and communication processor to the 3500 frame, and only one frame interface I/O module can be installed at a time behind the RIM(disk or rack frame) or on top of the RIM(wall-mounted frame).

The selection of 3500/22MTDI module and input/output module is as follows :3500/22-AXX-BXX-CXX

A: Type of the TDI module

01 standard (standard who monitors application)

02TMR(Only used when triple module redundancy configuration is required)

B: Input/output module type

0 110 base-T /100 base-TXI Ethernet input/output module 02100 base-FX(Optical) Ethernet input/output module

C: Approval authority option
