350015-106M1081-01 BENTLY 半高模块 通用交流电源

产品详情:

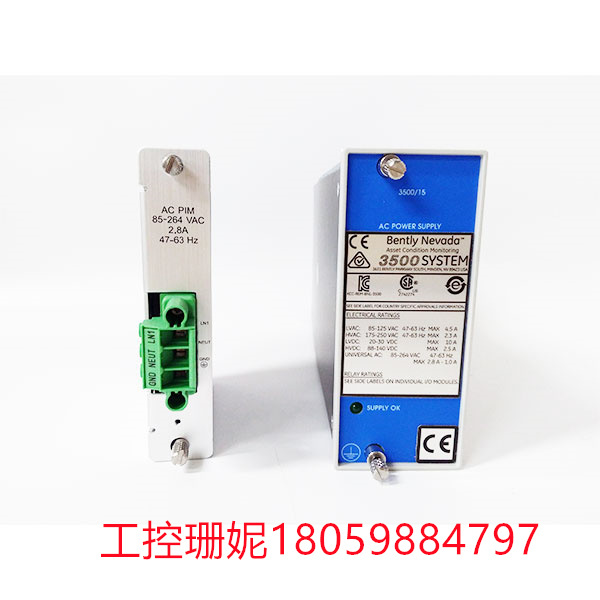

106M1081-01通用交流电源输入模块3500/15系列电源

制造商:本特利内华达

产品编号:106M1081-01

产品类型:通用交流电源输入模块，美国制造

描述:该选项使用通用交流电源和通用电源输入模块(PIM)。

·输入电压:通用交流电源和电源输入模块与传统的高压交流或低压交流装置不兼容·

输入频率:47至63赫兹

重量:0.34千克

·运输重量:2公斤

特点:半高模块

3500系列机架可以包含—个或两个电源.

350015-106M1081-01

电源模块

3500电源是半高度模块，必须安装在框架左边特殊设计的槽口内。3500框架可装有一个或两个电源(交流或直流的任意组合)。其中任何一个电源都可给整个框架供电。如果安装两个电源，第二个电源可做为第一个电源的备份。当安装两个电源时，上边的电源作为主电源，下边的电源作为备用电源，只要装有一个电源，拆除或安装第二个电源模块将不影响框架的运行。3500电源能接受大范围的输入电压，并可把该输入电压转换成其它3500模块能接受的电压。

对于3500 350015-106M1081-01机械保护系统，有以下三种电源:

1.交流电源

⒉高压直流电源

3.低压直流电源

350015-106M1081-01输入电源选项:

175到264 Vac rms: (247到 373 Vac,pk)，47到63 Hz。该选项使用交流电源且为高电压(通常220V)交流电源输入模块(PIM)。安装版本R以前的交流电源输入模块(PIM)和/或版本M以前的电源模块要求电压输入:175到250 Vac rms.

85到132 Vac rms: (120 到 188 Vac,pk)，47到63 Hz。该选项使用交流电源并且是低电压(通

常110V)交流电源输入模块(PIM)。安装版本R 以前的交流电源输入模块(PIM)和/或版本M以前的电源模块要求电压输入:85到125 Vac rms。

88到 140 Vdc:该选项使用直流电源，并且是高电压直流电源输入模块(PIM)。20 到 30vdc:该选项是低压直流供电，是低压直流供电模块(PIM)。

超限保护:对于所有电源类型，低电压不会损坏电源或PIM。一个超范围电压将使PIM上的保险丝开路。

350015-106M1081-01 BENTLY 半高模块 通用交流电源

Product Details:

106M1081-01 General purpose AC power input module 3500/15 series power supply

Manufacturer: Bentley, Nevada

Product Number :106M1081-01

Product Type: General purpose AC power input module, made in USA

Description: This option uses a universal AC power supply and a Universal Power Input Module (PIM).

· Input voltage: General purpose AC power supplies and power input modules are not compatible with traditional high voltage AC or low voltage AC devices · Input frequency :47 to 63 Hz

Weight :0.34 kg

· Shipping weight: 2kg

Features: Half height module

The 3500 Series rack can contain one or two power supplies.

(3) Manufactured version

350015-106M1081-01

Power module

The 3500 power supply is a half-height module that must be installed in a specially designed notch on the left side of the frame. The 3500 frame can be equipped with one or two power supplies (any combination of AC or DC). Any one of these power supplies can power the entire frame. If two power supplies are installed, the second power supply can be used as a backup of the first power supply. When two power supplies are installed, the upper power supply is used as the main power supply, and the lower power supply is used as the backup power supply. As long as one power supply is installed, removing or installing the second power module will not affect the operation of the frame. The 3500 power supply can accept a wide range of input voltages, and can convert the input voltage to other 3500 modules can accept the voltage.

For the 3500 350015-106M1081-01 mechanical protection system, there are three power supplies:

1. Ac power supply

⒉ High voltage DC power supply

3. Low voltage DC power supply

350015-106M1081-01 Input power options:

175 to 264 Vac rms: (247 to 373 Vac,pk), 47 to 63 Hz. This option uses AC power and is a high voltage (usually 220V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input :175 to 250 Vac rms.

85 to 132 Vac rms: (120 to 188 Vac,pk), 47 to 63 Hz. This option uses AC power and is low voltage (on

Normal 110V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input :85 to 125 Vac rms.

88 to 140 Vdc: This option uses DC power and is a high voltage DC power input module (PIM). 20 to 30vdc: This option is low voltage DC power supply and is a low voltage DC power supply module (PIM).

Out-of-limit protection: For all power supply types, low voltage will not damage the power supply or PIM. An out-of-range voltage will open the fuse on the PIM.
