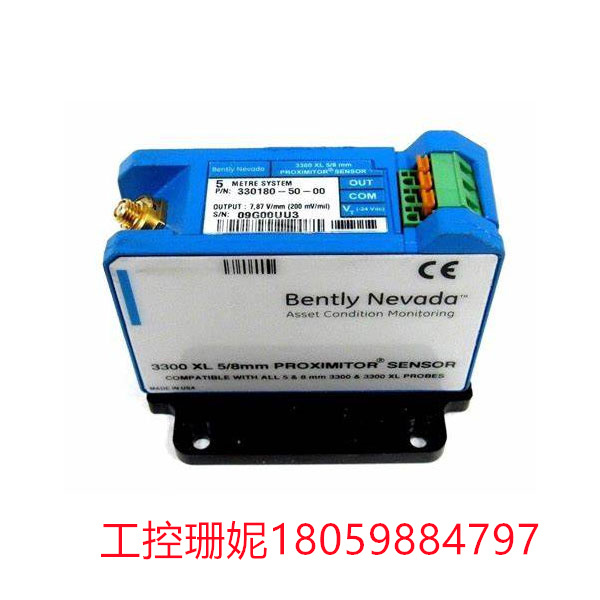

330180-51-00 BENTLY 前置器 无需单独的隔离器板

品牌：BENTLY

产地：美国

适用范围：前置器

物料编号：330180-51-00

可售卖地：全国

部件号330180-51-00 GE /B)y 300XL 58mm近似以传感器与所有5和8mm 3300和3300XL探头兼容。300XL接近传感器对以前的设计进行了许多改进。它的物理包装允许您在高密度DNil安装中使用它。您还可以将传感器安装在传统的面板安装配置中，其中它与旧的Proximtor传感器设计共享相同的4孔安装'占地面积”。任一选项的安装底座均提供电气隔离，无需单独的隔离器板。

本特利bently前置器330180-51-00是前置器的一种常用型号,有下列传感器系统的3300 xl8mm ,11mm ,25mm,50mm的前置器,它既可以采用紧凑的导轨安装，也可以采用传统的面板安装。两种形式的安装基板均具有电绝缘性，不需要独立的绝缘板。

本特利bently 3300XL 8mm前置器抗干扰能力强，改进的RFI/EMI达到欧洲电磁兼容标准电源:无安全栅时:-17.5~-26Vdc有安全棚时:-23~-26Vdc*大电流:12mA输出:电压或电流信号有输出短路保护安装方式:导轨和面板安装作用:接收3300XL8mm; 3300系列、5mm的电涡流探头和延伸电缆的信号，并输出相应的处理过的电压电流信号。技术规格线性范围:2mm(80mi/s)。线性范围从距测把面约0.25mm(10mils)处开始，从0.25至2.3mm(10~90mil/s)(约-1~-17Vdc)的间隙设定值:1.27mm的*小靶面尺寸:直径

15.2mm*小轴直径76.2mm递增的灵敏度:(ISF)标准的5m系统:在从0C到45℃，8.0mils线性范围内，以0.25mm(10mils)的增量测量时，包括互换性，误差在内为

7.87V/mm(200mV)/ mi/s土5%频率响应:0~10KHZ，典型值+0~-3Db，305m现场连线环境限制:标准探头温度范围(使用和存储温度):-51°C~+177C;大温度范围探头，对于探头端部:-51°C~+177RC;对于探头电缆和接头:-51C~+260C;标准延伸电缆使用和存储温度:-51°C~+177C;大范围电缆温度:-51°C~+260C;前置器温度范围:使用温度:-35°C~+85°C存储温度:-35°C~+100°C。

330180-51-00 BENTLY 前置器 无需单独的隔离器板

Brand: BENTLY

Origin: USA

Scope of application: preprocessor

Item No. : 330180-51-00

Available: nationwide

Part Number 330180-51-00 GE /B)y 300XL 58mm is approximately sensor compatible with all 5 and 8mm 3300 and 3300XL probes. The 300XL proximity sensor incorporates a number of improvements over previous designs. Its physical packaging allows you to use it in high-density DNil installations. You can also mount the sensor in a traditional panel mount configuration, where it shares the same 4-hole mount 'footprint' as the older Proximtor sensor design. The mounting base of either option provides electrical isolation without the need for a separate isolator plate.

The Bentley bently front loader 330180-51-00 is a common model of front loader, with the following sensor systems of 3300 xl8mm,11mm,25mm,50mm front loader, which can be mounted in either a compact rail or a traditional panel mount. Both forms of mounting substrate are electrically insulating and do not require a separate insulating board.

Bentley bently 3300XL 8mm front-end has strong anti-interference ability, Improved RFI/EMI to meet the European electromagnetic compatibility standard Power supply: no safety gate :-17.5~-26Vdc when there is a safety shelter :-23~-26Vdc* High current :12mA output: voltage or current signal output short circuit protection Installation method: guide rail and panel installation function: receive 3300XL8mm; 3300 series, 5mm eddy current probe and extension cable signal, and output the corresponding processed voltage and current signal. Specification Linear range :2mm(80mi/s). The linear range starts from about 0.25mm(10mils) away from the measuring surface, and the gap set value from 0.25 to 2.3mm(10 to 90mil/s)(about -1 to -17Vdc) :1.27mm * small target surface size: diameter

15.2mm* Small axis diameter 76.2mm increasing sensitivity :(ISF) standard 5m system: The error, including interchangeability, is measured in 0.25mm(10mils) increments over a linear range of 8.0mils from 0C to 45℃

7.87V/mm(200mV)/ mi/s soil 5% Frequency response :0~10KHZ, typical value +0~-3Db, 305m field connection environmental limits: Standard probe temperature range (use and storage temperature):-51°C~+177C; Large temperature range probe, for the probe end :-51°C~+177RC; For probe cables and connectors :-51C~+260C; Standard extension cable use and storage temperature :-51°C~+177C; Wide range of cable temperature :-51°C~+260C; Preheater Temperature range: Operating temperature :-35°C to +85°C Storage temperature :-35°C to +100°C.
