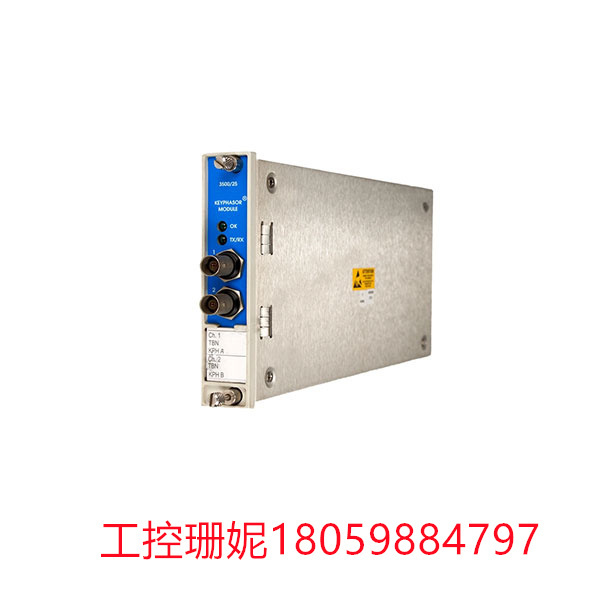

149369-01 bently 键相器模块

BENTLY 149369-01键相器模块

品牌: bently nevada

型号:149369-01

149369-01键相器模块是一种用于向3500机架的监控模块提供Keyphasor信号的半高、双通道模块。它接收来自接近探测器或磁性拾音器的输入信号，将信号转换为数字关键相位信号，表明当轴上的关键相量标记与关键相量换能器一致。3500机械保护系统可以接受多达四个关键相位信号正常配置和多达八个Keyphasor信号配对配置。

在3500机架中，TDI位于电源旁边的插槽中。为了持续收集稳态和瞬态动态（波形）数据并通过以太网链路将此数据传输到主机软件，它与M系列监视器(3500/40M、3500/42M等)交互。

TDI具有传统的静态数据收集功能。然而，TDI也可以使用可选的通道启用磁盘记录动态、高分辨率的瞬态数据。功能说明

3500机架包含TDI的通信处理功能。虽然TDI执行一些由整个机架共享的任务，但它不是监控系统的关键组件，并且与整个系统监控自主机械保护的效果无关。

它用于在“RUN”和“PROGRAM”模式之间切换3500机架。RUN模式可防止配置修改，同时允许机架正常运行。机架可以在本地或远程配置，同时仍可在PROGRAM模式下正常运行。通过从机架上的任一位置拔下钥匙，开关可以保持在运行或编程位置。您可以通过将开关锁定在运行位置来防止不必要的机架重新配置。任何时候需要远程重新配置机架时，都可以将开关锁定在PROGRAM位置。

I/O模块信号公共端

两个版本的TDI /O模块中现在都有一个2针连接器，用于将信号公共端连接到机架的单点仪器接地。执行此操作后，要将信号公共端与底盘(安全）接地隔离，请沿“HP”箭头方向滑动电源输入模块(PIM)侧的选择器开关。

数据采集

键相器输入

支持3500系统的四个Keyphasor 信号。

149369-01 bently 键相器模块

BENTLY 149369-01 Key phase module

Brand: bently nevada

Model :149369-01

The 149369-01 Key phaser module is a half-height, dual-channel module for providing Keyphasor signals to the monitoring module in the 3500 rack. It receives an input signal from a proximity detector or magnetic pickup, converts the signal into a digital critical phase signal, indicating when the critical phasor mark on the axis coincides with the critical phasor transducer. The 3500 mechanical protection system can accept up to four critical phase signals in normal configurations and up to eight Keyphasor signal pairing configurations.

In the 3500 rack, the TDI is located in the slot next to the power supply. It interacts with M-series monitors (3500/40M, 3500/42M, etc.) in order to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software over an Ethernet link.

TDI has traditional static data collection capabilities. However, TDI can also enable the disk to record dynamic, high-resolution transient data using an optional channel. Function description

The 3500 rack contains the communication processing capabilities of TDI. While TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system and is not relevant to how well the entire system monitors autonomous mechanical protection.

It is used to switch 3500 racks between "RUN" and "PROGRAM" modes. RUN mode prevents configuration modifications while allowing the rack to run properly. The rack can be configured locally or remotely while still operating in PROGRAM mode. The switch can be kept in the running or programmed position by unplugging the key from any location on the rack. You can prevent unnecessary rack reconfiguration by locking the switch in the run position. Any time you need to remotely reconfigure the rack, you can lock the switch in the PROGRAM position.

I/O module signal public end

There is now a 2-pin connector in both versions of the TDI /O module for connecting the signal common end to the single point instrument ground of the rack. After doing this, to isolate the common end of the signal from the chassis (safety) ground, slide the selector switch on the side of the power input module (PIM) in the direction of the HP arrow.

Data acquisition

Key phase input

Supports four Keyphasor signals for 3500 systems.
