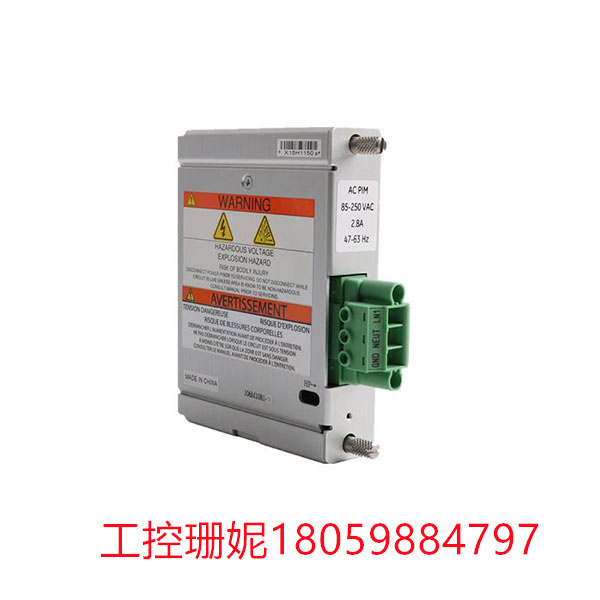

106M1079-01 BENTLY 电源 I/O模块

106M1079-01电源模块

 电源是半高度模块，必须安装在框架左边特殊设计的槽口内。3500 框架可装有一个或两个电源(交流或直流的任意组合)。其中任何一个电源都可给整个框架供电。如果安装两个电源，第二个电源可做为第一个电源的备份。当安装两个电源时，上边的电源作为主电源，下边的电源作为备用电源，只要装有一个电源，拆除或安装第二个电源模块将不影响框架的运行。3500 电源能接受大范围的输入电压，并可把该输入电压转换成其它3500 模块能接受的电压。

对于3500 - 106M1079-01机械保护系统，有以下三种电源：

1. 交流电源

2.高压直流电源

3.低压直流电源

输入电源选项:   

175 到 264 Vac  rms: (247 到 373 Vac, pk)，47 到 63 Hz。该选项使用交流电源且为高电压(通常220V)交流电源输入模块(PIM)。安装版本R 以前的交流电源输入模块(PIM)和/或版本M 以前的电源模块要求电压输入：175 到250 Vac rms。

85 到 132 Vac rms: (120 到 188 Vac, pk), 47 到 63 Hz。该选项使用交流电源并且是低电压(通

常110V)交流电源输入模块(PIM)。安装版本R 以前的交流电源输入模块(PIM)和/或版本M 以前的电源模块要求电压输入：85 到125 Vac rms。

88 到 140 Vdc: 该选项使用直流电源，并且是高电压直流电源输入模块(PIM)。  20 到 30 Vdc: 该选项是低压直流供电，是低压直流供电模块(PIM)。

超限保护:对于所有电源类型，低电压不会损坏电源或PIM。一个超范围电压将使PIM 上的保险丝开路。

选项描述

A: 电源类型 (上部槽口)

0 1 低压交流(85 到132 Vac rms)

0 2 高压交流(175 到 264 Vac rms)

0 3 高压直流(88 到 140 Vdc)

0 4 低压直流(20 到 30 Vdc)

05 通用电源Universal AC Voltage (85 to 264 Vac rms)

B: 电源类型 (下部槽口)

0 0 无电源(仅用于 要求单电源的情况)

0 1 低压交流(85 到 132 Vac rms)

0 2 高压交流(175 到 264 ac rms)

0 3 高压直流(88 到 140 Vdc)

0 4 低压直流(20 到 30 Vdc)

05 通用电源Universal AC Voltage (85 to 264 Vac rms)

备件

127610-01 交流电源模块

125840-01 高电压交流电源输入模块(PIM)

125840-02 低电压交流电源输入模块(PIM)

106M1079-01 Universal AC Power Supply Module

106M1081-01 Universal AC Power Input Module

129486-01 高压直流电源模块

129478-01 高电压直流电源输入模块(PIM)

133292-01 低压直流电源模块

133300-01 低压直流电源输入模块PIM)

常用型号：

3500/15-05-00-00 （106M1079-01，106M1081-01

3500/15-05-05-00 （106M1079-01，106M1081-01

3500/15-02-00-00 3500/15-02-02-00

106M1079-01 BENTLY 电源 I/O模块

106M1079-01 Power module

The power supply is a half-height module that must be installed in a specially designed notch on the left side of the frame. The 3500 frame can be equipped with one or two power supplies (any combination of AC or DC). Any one of these power supplies can power the entire frame. If two power supplies are installed, the second power supply can be used as a backup of the first power supply. When two power supplies are installed, the upper power supply is used as the main power supply, and the lower power supply is used as the backup power supply. As long as one power supply is installed, removing or installing the second power module will not affect the operation of the frame. The 3500 power supply can accept a wide range of input voltages, and can convert the input voltage to other 3500 modules can accept the voltage.

For 3500-106M1079-01 mechanical protection systems, there are three power supplies:

1. Ac power supply

2. High voltage DC power supply

3. Low voltage DC power supply

Input power options:

From 175 to 264 Vac RMS: (247 to 373 Vac, pk), 47 to 63 Hz. This option uses AC power and is a high voltage (usually 220V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 175 to 250 Vac rms.

From 85 to 132 Vac RMS: (120 to 188 Vac, pk), 47 to 63 Hz. This option uses AC power and is low voltage (on

Normal 110V) AC power input module (PIM). Install AC power input modules (PIMs) before version R and/or power modules before version M requiring voltage input: 85 to 125 Vac rms.

88 to 140 Vdc: This option uses DC power and is a high voltage DC power input module (PIM). 20 to 30 Vdc: This option is low voltage DC power supply and is a Low Voltage DC power supply module (PIM).

Out-of-limit protection: For all power supply types, low voltage will not damage the power supply or PIM. An out-of-range voltage will open the fuse on the PIM.

Option description

A: Power supply type (Upper notch)

0 1 Low Voltage AC (85 to 132 Vac rms)

0 2 High Voltage AC (175 to 264 Vac rms)

0 3 HVDC (88 to 140 Vdc)

0 4 Low Voltage DC (20 to 30 Vdc)

05 Universal AC Voltage (85 to 264 Vac rms)

B: Power supply type (lower notch)

0 0 No power supply (Only used when a single power supply is required)

0 1 Low Voltage AC (85 to 132 Vac rms)

0 2 High Voltage ac (175 to 264 ac rms)

0 3 HVDC (88 to 140 Vdc)

0 4 Low Voltage DC (20 to 30 Vdc)

05 Universal AC Voltage (85 to 264 Vac rms)

Spare part

127610-01 AC power module

125840-01 High Voltage AC Power Input Module (PIM)

125840-02 Low Voltage AC Power Input Module (PIM)

106M1079-01 Universal AC Power Supply Module

106M1081-01 Universal AC Power Input Module

129486-01 HVDC power module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 Low-voltage DC power module

133300-01 Low Voltage DC Power Input Module PIM)

Common model:

3500/15-05-00-00 (106M1079-01, 106M1081-01

3500/15-05-05-00 (106M1079-01, 106M1081-01

3500/15-02-00-00 3500/15-02-02-00
