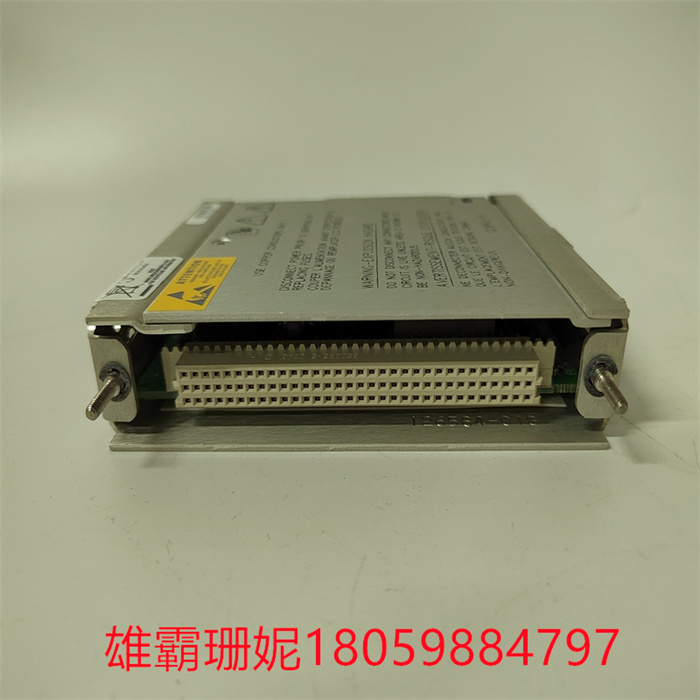

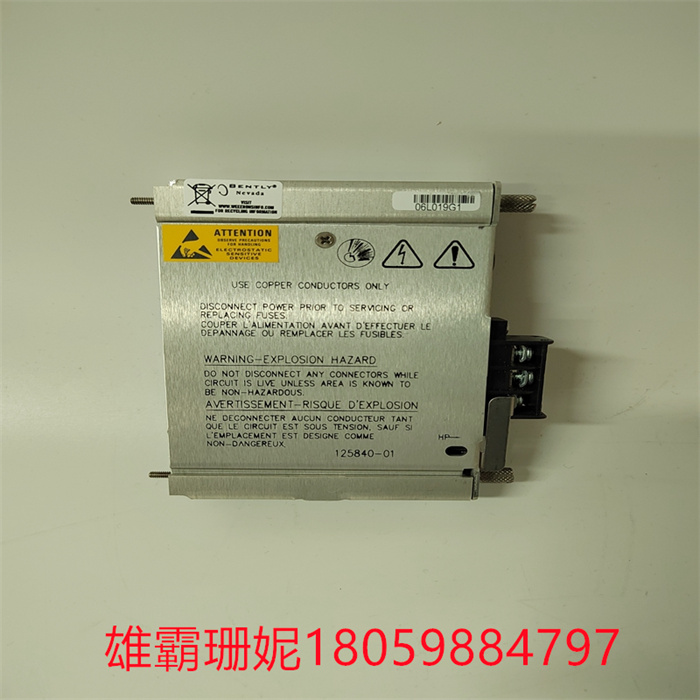

BENTLY 125840-01 控制器

BENTLY 125840-01  控制器

BENTLY 125840-01 是一种 PLC（可编程逻辑控制器）系统备件模块，用于工业自动化控制系统中的逻辑控制和数据处理。以下是该模块的一般产品介绍：

逻辑控制功能：BENTLY 125840-01 模块具有强大的逻辑控制功能，可以编程实现复杂的控制逻辑和自动化任务。它能够处理输入信号，并根据预设的逻辑和程序进行决策和控制输出信号，实现对设备和过程的自动化控制。

数据处理能力：该模块通常具备高性能的数据处理能力，可以处理大量的数据和执行复杂的算法。它能够实时采集、处理和存储来自传感器和其他设备的数据，以支持实时监控、分析和决策。

TDI 位于 3500 机架电源附近的插槽中。它与 M 系列监视器（3500/40M、 3500/42M等）连续收集稳态和瞬态动态（波形）数据，并将这些数据通过 到主机软件的以太网链路。有关详细信息，请参阅本文档末尾的兼容性部分 信息。

静态数据捕获功能是 TDI 的标准配置。但是，使用可选的通道启用磁盘将允许 TDI 还用于捕获动态和高分辨率瞬态数据。TDI 集成了通信处理器 在3500机架内工作正常。

尽管 TDI 提供了整个机架通用的某些功能，但它不是关键监控路径的一部分，并且 对整个监控系统的正常、正常运行没有影响，用于自动机械保护。每 3500 机架需要一个 TDI 或 RIM，它始终占用插槽 1（电源旁边）。

BENTLY 125840-01  控制器

The BENTLY 125840-01 is a PLC (Programmable Logic Controller) system spare parts module for logic control and data processing in industrial automation control systems. The following is the general product introduction of this module:

Logic control functions: The BENTLY 125840-01 module has powerful logic control functions and can be programmed to implement complex control logic and automation tasks. It can process the input signal, make decisions and control the output signal according to the preset logic and procedure, and realize the automatic control of the equipment and process.

Data processing capabilities: The module usually has high performance data processing capabilities, which can handle large amounts of data and execute complex algorithms. It captures, processes and stores data from sensors and other devices in real time to support real-time monitoring, analysis and decision making.

The TDI is located in a slot near the power supply in the rack 3500. It continuously collects steady-state and transient dynamic (waveform) data with M-series monitors (3500/40M, 3500/42M, etc.) and passes this data through an Ethernet link to the host software. For more information, see the Compatibility section at the end of this document.

Static data capture is standard in TDI. However, using an optional channel-enabled disk will allow TDI to also be used to capture dynamic and high-resolution transient data. The TDI integrated communication processor works well in 3500 racks.

Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal, normal operation of the entire monitoring system for automatic mechanical protection. Every 3500 racks requires a TDI or RIM, which always occupies slot 1 (next to the power supply).

BENTLY 125840-01  控制器
