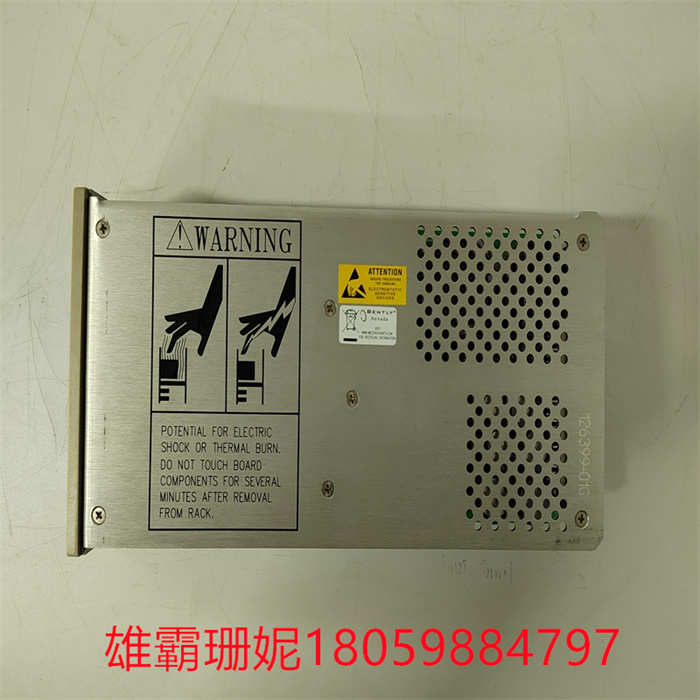

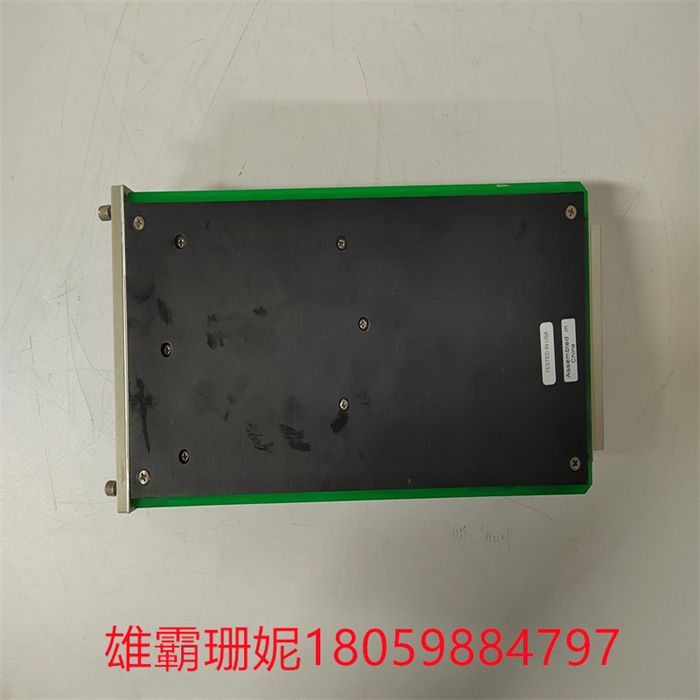

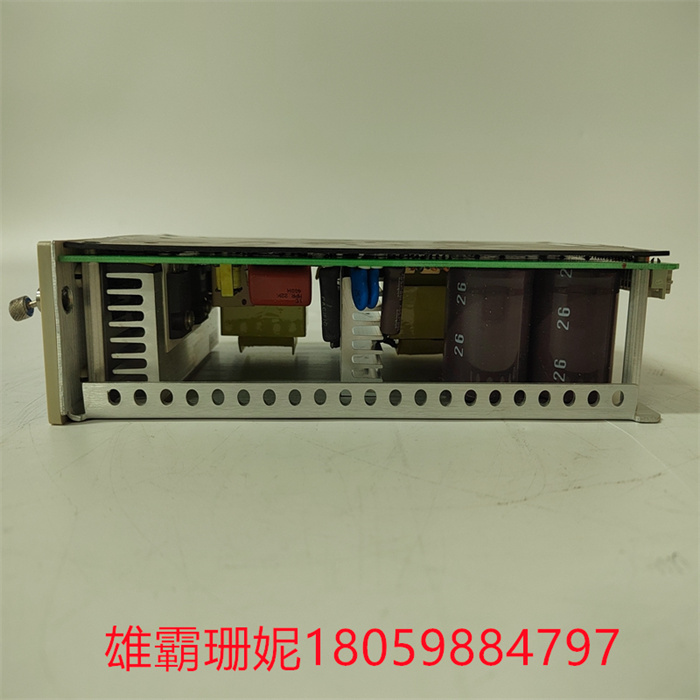

BENTLY 3500/15 127610-01 工业系统

BENTLY 3500/15 127610-01  工业系统

美国本特利（bently nevada）公司的bently3500系统提供连续、在线监测功能，适用于机械保护应用。bently3500系统组成：3500/05 仪表框架；一或两个 3500/15 电源；3500/20 框架接口模块；一或两个3500/25 键相器模块；3500 框架组态软件；一个或多个 3500/32 继电器模块或3500/33 16通道继电器模块；一个或多个 3500/92 通讯网关模块；一个或多个 3500/XX 监测器模块，3500/42M 位移/速度加速度监测器；3500/40M位移监测器；3500/45 差胀/轴向位置监测器；3500/50 转速模块；3500/53 超速检测模块等。3500/XX 监测器模块可接来自bently3300系统的信号，bently3300系统即传感器系统，包括传感器探头，前置器，延伸电缆等。电涡流传感器探头330101，330102，330103，330104，330105，330106，330851，速度传感器和加速度传感器9200，330500等；前置器330180，330780等；延伸电缆330130，330780等。传感器通常安装于机器内部或表面，用于测量轴振动、瓦振、位移、转速、偏心、键相、转速、差胀等。另外还有1900系列，如1900/65，测试、模拟和校准仪器：如TK3-2 电涡流探头校准仪，RK 4 转子试验台等。

模块提供了高密度的继电器开关能力，可同时控制多个继电器通道。它支持多达 128 个继电器通道，适用于需要同时操作多个通道的应用。高速开关操作：该模块具备快速的继电器开关速度，可实现快速的切换和连接操作。它采用了高性能继电器技术，可在毫秒级的时间内完成开关操作，适用于对响应时间要求较高的应用。多种继电器类型： 支持不同类型的继电器，包括通用继电器、矩阵继电器和大功率继电器等。用户可以根据具体需求选择适合的继电器类型，并进行灵活的配置和连接。高电压和高电流测量：该模块支持高电压和高电流的测量应用。它提供了高电压和高电流输入通道，可安全地测量和控制高电压和高电流信号，适用于电力、电子设备测试和控制等应用领域。强大的软件支持模块配备了 NI-DAQmx 驱动软件，提供了丰富的功能和易于使用的编程接口。用户可以使用 LabVIEW、C/C++、Python 等常用编程语言进行编程和控制，方便快速地实现继电器开关操作。

BENTLY 3500/15 127610-01  工业系统

bently nevada's bently3500 system provides continuous, in-line monitoring for mechanical protection applications. bently3500 system composition: 3500/05 instrument frame; One or two 3500/15 power supplies; 3500/20 frame interface module; One or two 3500/25 key phaser modules; 3500 framework configuration software; One or more 3500/32 relay modules or 3500/33 16-channel relay modules; One or more 3500/92 communication gateway modules; One or more 3500/XX monitor modules, 3500/42M displacement/velocity acceleration monitors; 3500/40M displacement monitor; 3500/45 differential expansion/axial position monitor; 3500/50 speed module; 3500/53 overspeed detection module, etc. The 3500/XX monitor module can be connected to signals from the bently3300 system, the bently3300 system is a sensor system, including sensor probes, precursors, extension cables, etc. Eddy current sensor probe 330101,330102,330103,330104,330105,330106,330851, speed sensor and acceleration sensor 9200,330500, etc. Preprocessor 330180,330780, etc.; Extension cable 330130,330780, etc. Sensors are usually installed inside or on the surface of the machine to measure shaft vibration, tile vibration, displacement, speed, eccentricity, key phase, speed, differential expansion, etc. In addition, there are 1900 series, such as 1900/65, test, simulation and calibration instruments: such as TK3-2 eddy current probe calibrator, RK 4 rotor test stand, etc.

The module provides a high density relay switching capability to control multiple relay channels simultaneously. It supports up to 128 relay channels and is suitable for applications where multiple channels need to be operated simultaneously. High-speed switching operation: The module has fast relay switching speed for fast switching and connection operation. It uses high-performance relay technology to complete switching operations in milliseconds, making it suitable for applications with high response time requirements. Multiple relay types: Different types of relays are supported, including universal relays, matrix relays and high power relays. Users can choose the appropriate relay type according to specific needs, and carry out flexible configuration and connection. High voltage and high current measurement: The module supports high voltage and high current measurement applications. It provides high voltage and high current input channels to safely measure and control high voltage and high current signals for applications such as power and electronic device testing and control. The powerful software support module is equipped with NI-DAQmx driver software that provides a wealth of features and an easy-to-use programming interface. Users can use LabVIEW, C/C++, Python and other commonly used programming languages for programming and control, convenient and fast to achieve relay switching operation.

BENTLY 3500/15 127610-01  工业系统
