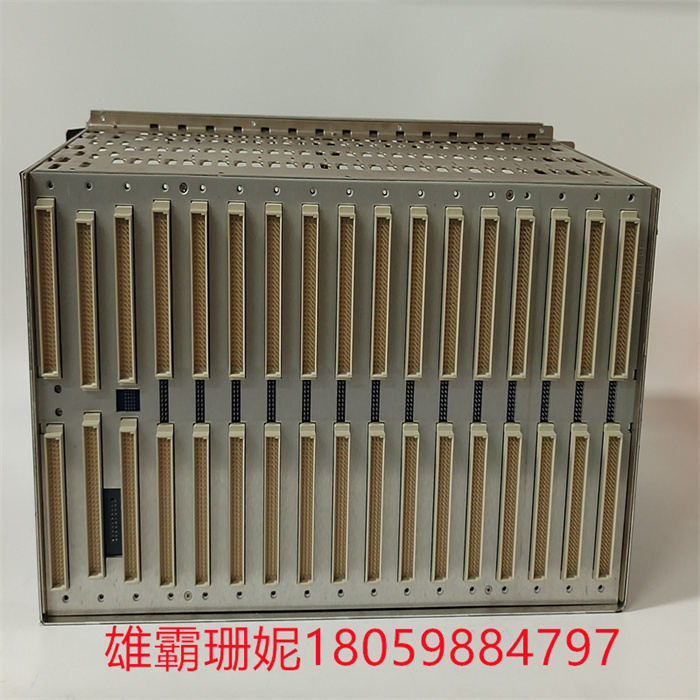

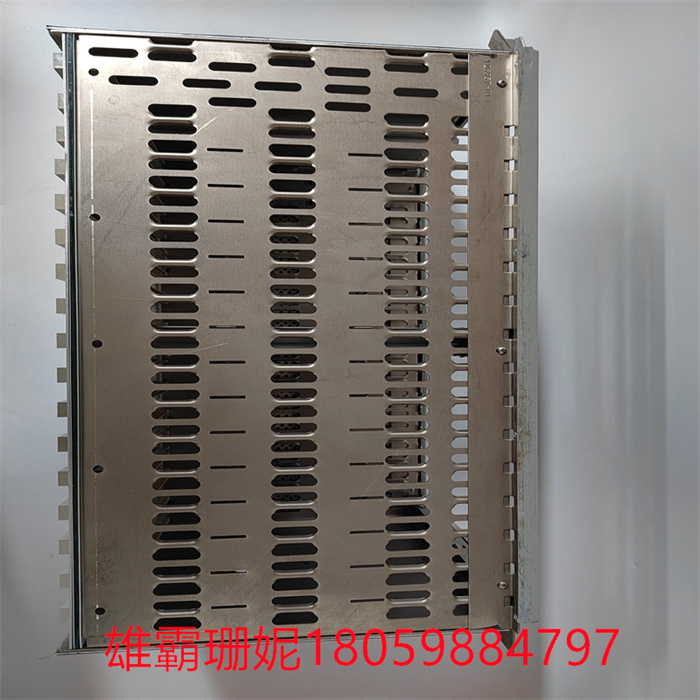

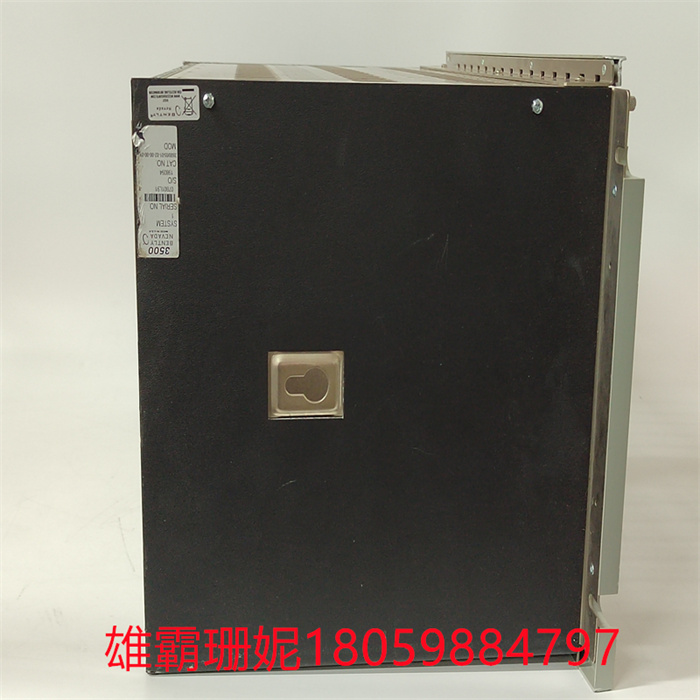

3500/05-01-02-00-00-01(RACK) 是由本特利Bently Nevada 制造的系统机架，本特利Bently Nevada 3500/05-01-02-00-00-01系统机架是用于机械状态监测系统的 3500/05 系列的一部分。本特利Bently Nevada 3500/05-01-02-00-00-01系统机架允许您将 3500 个模块彼此靠近放置，使它们能够轻松通信并安装为每个模块分配电源所需的电源。

3500/05-01-02-00-00-01(RACK) 功能描述：

带有内部安全栅的机架需要 3500/04-01 内部安全栅接地模块，以提供与 3500/05 机架的 IS 接地连接。此接地模块需要一个专用机架插槽。3500/93 System Display 的 System Display A01 System Face Mount 选项与 3500/05 小型机架不兼容。

隔板安装选项不适用于 3500/05 小型机架。3500/06 防风雨外壳和 3500/05 隔板安装选项不兼容。

在 EIA 机架中使用 3500 小型机架时，需要 144863-01 19 英寸 EIA 适配器面板。3500 小型机架需要 2.70 版或更高版本的 3500/01 软件。

3500/05-01-02-00-00-01功能

存放所有3500监视器模块以及机架电源。

有两种尺寸可供选择:全尺寸和微型机架

有三种不同的形式:面板安装，机架安装和舱壁安装都是选项。

试管架位置(7或14)

机架尺寸

有两种尺寸的3500机架可供选择:

全尺寸机架:19英寸EIA机架，有14个模块插槽

迷你机架:12英寸机架，有7个模块插槽

面板安装

这种机架类型通过机架提供的夹具连接到面板上的矩形切口。

从机架背面，您可以接触到接线和I/O模块。

机架固定件

在这种机架类型中，3500机架安装在19英寸EIA导轨上。

从机架背面，您可以接触到接线和I/O模块。

隔板支架

当接触机架背面受到限制时，这种类型的机架会将机架靠在墙上或面板上。从机架正面，您可以接触到接线和I/O模块。这种格式不支持3500/05微型机架。

机架接口模块和电源必须安装在最左侧机架位置。模块的任意组合可用于剩余的14个机架位置(微型机架的7个
