BENTLY 125768-01 轴向振动监测探头

BENTLY  125768-01  轴向振动监测探头

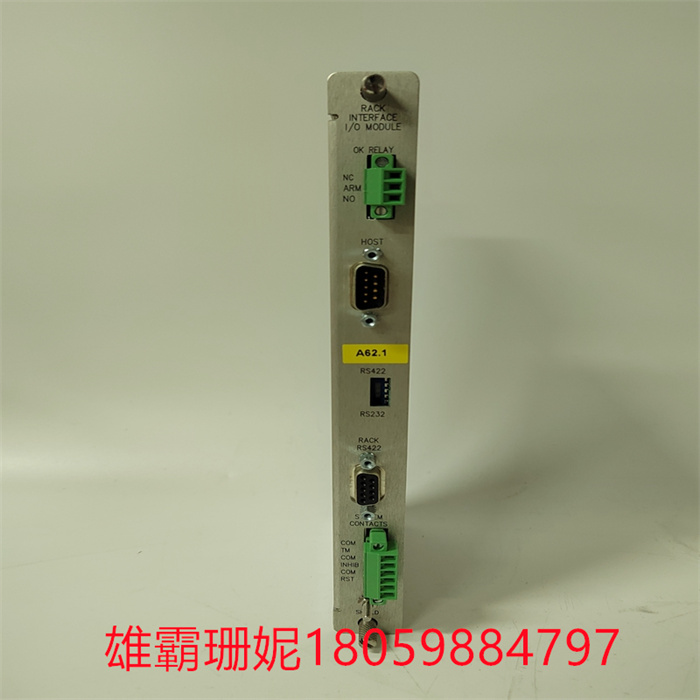

125768-01 是 Bently Nevada 开发的带有 RS232/RS422 接口的 RIM I/O 模块。它是本特利内华达 3500 系列的一部分。机架接口模块用作 3500 机架 (RIM) 的主要接口。它支持用于设置机架和获取机器数据的私有协议。

本特利Bently Nevada 125768-01

本特利Bently Nevada 125768-01 功能说明：

第一个机架插槽必须包含 RIM(电源旁边)。RIM 与 TDXnet、TDIX 和 DDIX Bently Nevada 外部通信处理器兼容。

尽管 RIM 执行一些由整个机架共享的任务，但它不是监控系统的重要组成部分，对整个系统的正常运行情况影响不大。每个机架需要一个 RIM。对于使用三重模块化冗余 (TMR) 的应用，3500 系统需要 RIM 的 TMR 版本。

除了执行所有其他正常的 RIM 操作之外，TMR RIM 还执行“监控通道比较”。

本特利Bently Nevada 125768-01 配置钥匙锁：

用于在“RUN”和“PROGRAM”模式之间切换 3500 机架。RUN 模式阻止配置修改，同时允许机架正常运行。PROGRAM 模式支持本地和远程机架配置以及标准机架操作。

通过在任一位置从机架上拔下钥匙，开关可以留在 RUN 或 PROGRAM 位置。为防止未经授权的机架重新配置，请将开关锁定在 RUN 位置。通过将开关锁定在 PROGRAM 位置，可以随时远程配置机架。

美国本特利Bently Nevada公司检测控制技术的重点业务涵盖了各行各业和众多应用，包括无损检测(NDT)、传感、资产状态监测、控制和仪表和辐射测量。我们正不断建立最佳实践并探索未来的解决方案，这一切的努力都是为了保证我们的客户享有质量、安全、服务和生产率。本特利Bently Nevada传感器通常安装于机器内部或表面，用于测量振动、位移、转速、压力、扭矩及能量等。本特利内华达提供多种传感器，均可满足工业环境的使用要求，部分传感器在采取本质安全栅、电磁绝缘等方法后，可安装于危险地区。

BENTLY  125768-01  轴向振动监测探头

The 125768-01 is a RIM I/O module developed by Bently Nevada with an RS232/RS422 interface. It is part of the Bentley Nevada 3500 series. The rack interface module is used as the primary interface for the 3500 rack (RIM). It supports proprietary protocols for setting up racks and getting machine data.

Bentley Bently Nevada 125768-01

Bentley Bently Nevada 125768-01 Function Description:

The first rack slot must contain the RIM(next to the power supply). RIM is compatible with TDXnet, TDIX, and DDIX Bently Nevada external communications processors.

Although RIM performs some tasks shared by the entire rack, it is not an important part of the monitoring system and has little impact on the overall system's normal operation. One RIM is required per rack. For applications that use Triple Modular redundancy (TMR), the 3500 system requires RIM's version of TMR.

In addition to performing all other normal RIM operations, TMR RIM also performs a "Monitor channel comparison."

Bentley Bently Nevada 125768-01 Configuration key lock:

Used to switch 3500 racks between RUN and PROGRAM modes. The RUN mode prevents configuration changes while allowing the rack to run properly. PROGRAM mode supports local and remote rack configurations as well as standard rack operations.

The switch can be left in the RUN or PROGRAM position by unplugging the key from the rack at either location. To prevent unauthorized rack reconfiguration, lock the switch in the RUN position. By locking the switch in the PROGRAM position, the rack can be configured remotely at any time.

Bentley Bently Nevada's focus on inspection and control technology covers a wide range of industries and applications, including nondestructive testing (NDT), sensing, asset condition monitoring, control and instrumentation, and radiation measurement. We are constantly establishing best practices and exploring future solutions, all in an effort to ensure quality, safety, service and productivity for our customers. Bentley Bently Nevada sensors are typically installed inside or on the surface of machines to measure vibration, displacement, speed, pressure, torque and energy. Bentley Nevada offers a wide range of sensors that meet the requirements of industrial environments, and some sensors can be installed in hazardous areas with intrinsic safety barriers, electromagnetic insulation, and other methods.

BENTLY  125768-01  轴向振动监测探头
