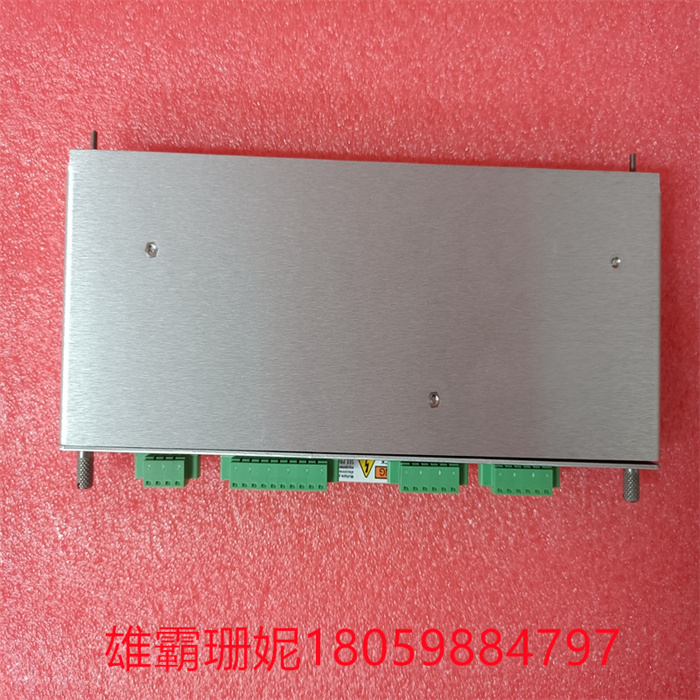

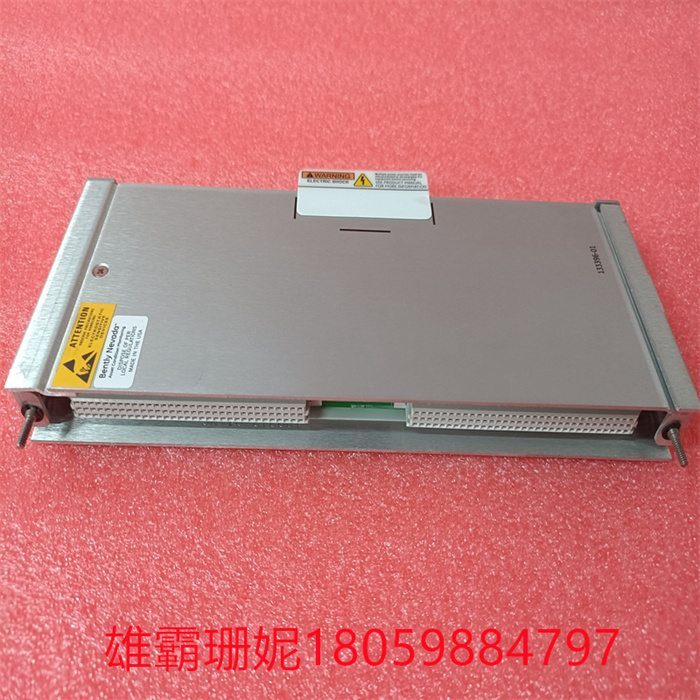

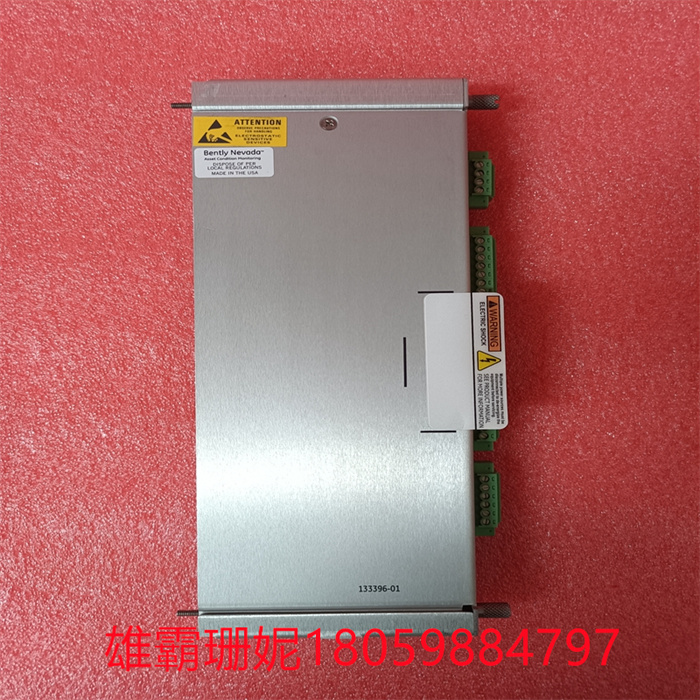

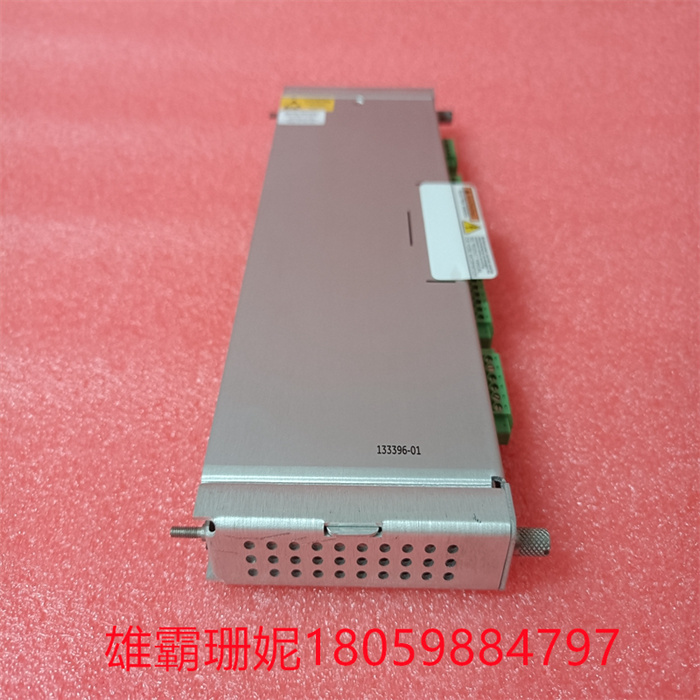

BENTLY 133396-01 控制器

BENTLY 133396-01  控制器

BENTLY 133396-01  控制器

中，仪器仪表作为其构成元素，它的技术进展是跟随控制系统技术的发展而发展的。目前，控制理论已发展到智能控制的新阶段，自动化仪器仪表的智能化就成为必然了。

仪器仪表的智能化主要归结于微处理器和人工智能技术的发展与应用。

例如运用神经网络、遗传算法、进化计算、混沌控制等智能技术，使仪器仪表实现高速、高效、多功能、高机动灵活等性能。

BENTLY 133396-01  控制器 机架电源附近的插槽中。它与 M 系列监视器（3500/40M、 3500/42M等）连续收集稳态和瞬态动态（波形）数据，并将这些数据通过 到主机软件的以太网链路。有关详细信息，请参阅本文档末尾的兼容性部分 信息。

静态数据捕获功能是 TDI 的标准配置。但是，使用可选的通道启用磁盘将允许 TDI 还用于捕获动态和高分辨率瞬态数据。TDI 集成了通信处理器 在3500机架内工作正常。

尽管 TDI 提供了整个机架通用的某些功能，但它不是关键监控路径的一部分，并且 对整个监控系统的正常、正常运行没有影响，用于自动机械保护。每 3500 机架需要一个 TDI 或 RIM，它始终占用插槽 1（电源旁边）。

BENTLY 133396-01  控制器

BENTLY 133396-01 controller

Instrumentation as its constituent elements, its technical progress is to follow the development of control system technology and development. At present, the control theory has developed to a new stage of intelligent control, and the intelligence of automatic instruments and meters has become inevitable.

The intelligence of instrumentation is mainly attributed to the development and application of microprocessor and artificial intelligence technology.

For example, intelligent technologies such as neural networks, genetic algorithms, evolutionary computing and chaos control are used to achieve high speed, high efficiency, multi-function, high mobility and flexibility.

BENTLY 133396-01 Controller rack power in slot near. It continuously collects steady-state and transient dynamic (waveform) data with M-series monitors (3500/40M, 3500/42M, etc.) and passes this data through an Ethernet link to the host software. For more information, see the Compatibility section at the end of this document.

Static data capture is standard in TDI. However, using an optional channel-enabled disk will allow TDI to also be used to capture dynamic and high-resolution transient data. The TDI integrated communication processor works well in 3500 racks.

Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal, normal operation of the entire monitoring system for automatic mechanical protection. Every 3500 racks requires a TDI or RIM, which always occupies slot 1 (next to the power supply).

BENTLY 133396-01  控制器
