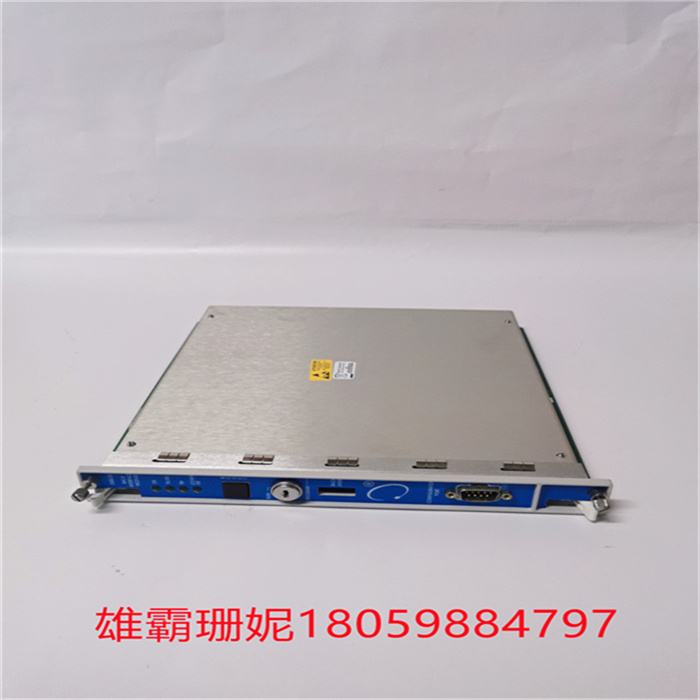

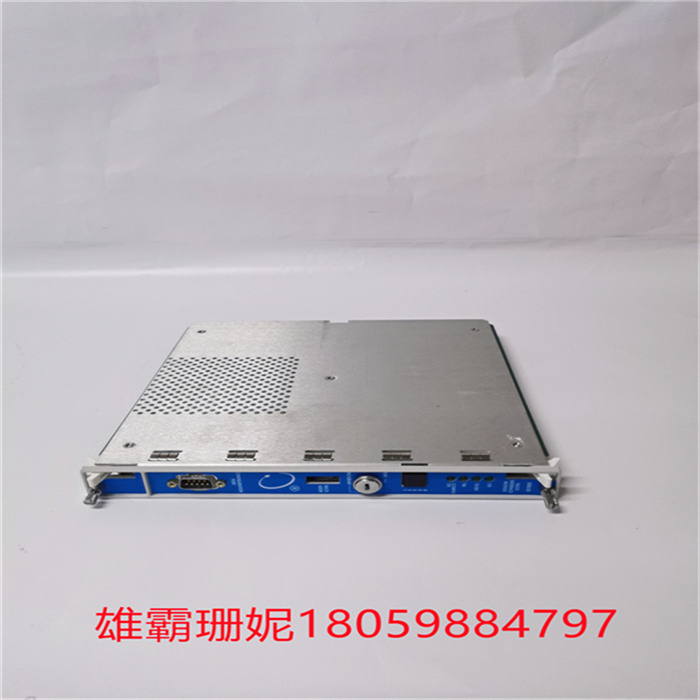

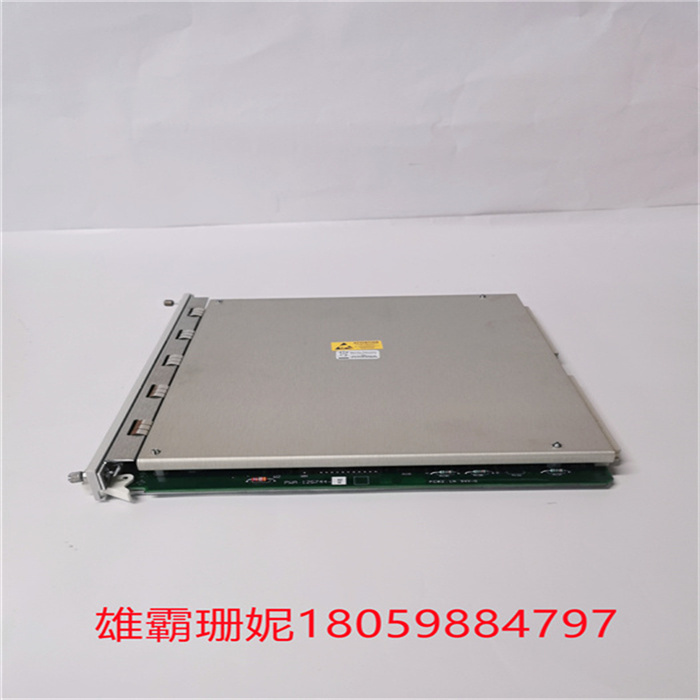

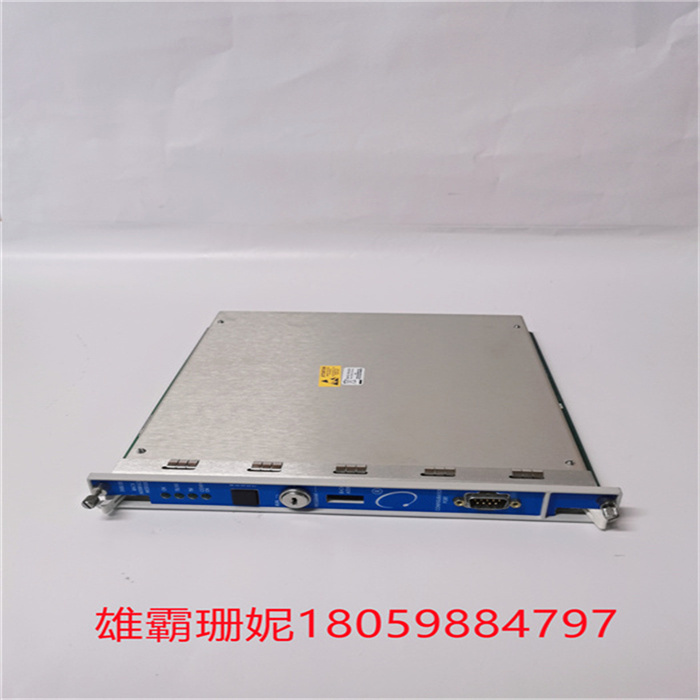

350020 125744-02 BENTLY 伺服模块

350020 125744-02 BENTLY  伺服模块

提供多种测量变量 - 3500/77M 测量的气缸操作变量包括最大和最小压力、排出压力、吸入压力、压缩比、峰值杆压缩、峰值杆张力和杆反转程度。

3500 系统可作为 SIL 2 级系统使用，并获得多个危险区域和特定国家/地区的批准。

我们的六通道 3500/62 过程变量监视器 接受变送器 4 至 20 mA 电流输入或 -10 Vdc 至 +10 Vdc 电压传感器输入，然后调节输入并将调节后的信号与可驱动警报的用户可编程警报设定点进行比较以及 3500 继电器模块中的继电器逻辑。3500/62 还可用于关键过程测量，例如流体压力、压缩机吸入和排出压力、蒸汽压力、电机电流、流量、兆瓦以及几乎任何其他可通过振动关联的过程变量。3500 系统可作为 SIL 2 级系统使用，并获得多个危险区域和特定国家/地区的批准。

四通道 3500/64 动态压力监视器 接受来自燃气轮机动态压力（燃烧）传感器的输入，并使用该输入驱动警报。监测仪产生带通动态压力测量变量。带通滤波器和附加陷波滤波器的可编程转角频率可以根据需要进行调整。典型应用识别并跟踪燃气轮机燃烧器的不稳定性。动态压力传感器使用 Bently Nevada 电荷放大器 350500 或 86517，可以集成多种常见的动态压力传感器，包括 CP 系列传感器。此外，3500/64 还获得了多个危险区域和特定国家/地区的批准，可以应对任何环境

350020 125744-02 BENTLY  伺服模块

Provide a variety of measurement variables-3500/77M The measured cylinder operating variables include maximum and minimum pressure, discharge pressure, suction pressure, compression ratio, peak rod compression, peak rod tension and rod reversal degree.

The 3500 system can be used as a SIL 2 level system, and has been approved by several hazardous areas and specific countries/regions.

Our six-channel 3500/62 process variable monitor accepts the transmitter's 4 to 20 mA current input or the -10 Vdc to +10 Vdc voltage sensor input, then adjusts the input and compares the adjusted signal with the user-programmable alarm set point that can drive the alarm and the relay logic in the 3500 relay module. 3500/62 can also be used for key process measurement, such as fluid pressure, compressor suction and discharge pressure, steam pressure, motor current, flow rate, megawatt and almost any other process variable that can be correlated through vibration. The 3500 system can be used as a SIL 2 level system, and has been approved by several hazardous areas and specific countries/regions.

The four-channel 3500/64 dynamic pressure monitor accepts the input from the gas turbine dynamic pressure (combustion) sensor and uses the input to drive the alarm. The monitor generates a band-pass dynamic pressure measurement variable. The programmable corner frequency of bandpass filter and additional notch filter can be adjusted as required. Typical applications identify and track the instability of gas turbine combustor. The dynamic pressure sensor uses Bently Nevada charge amplifier 350500 or 86517, which can integrate many common dynamic pressure sensors, including CP series sensors. In addition, 3500/64 has been approved by many hazardous areas and specific countries/regions, and can cope with any environment.
