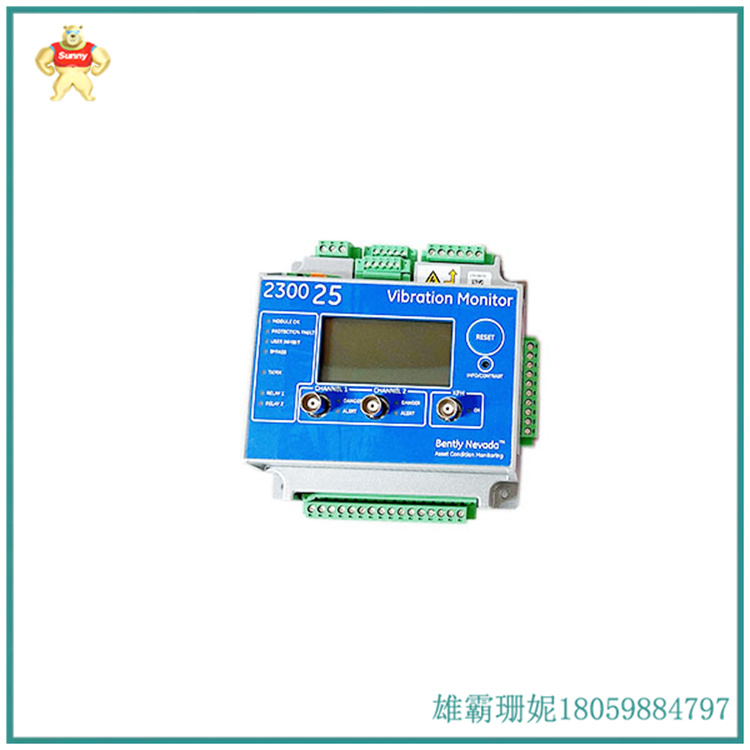

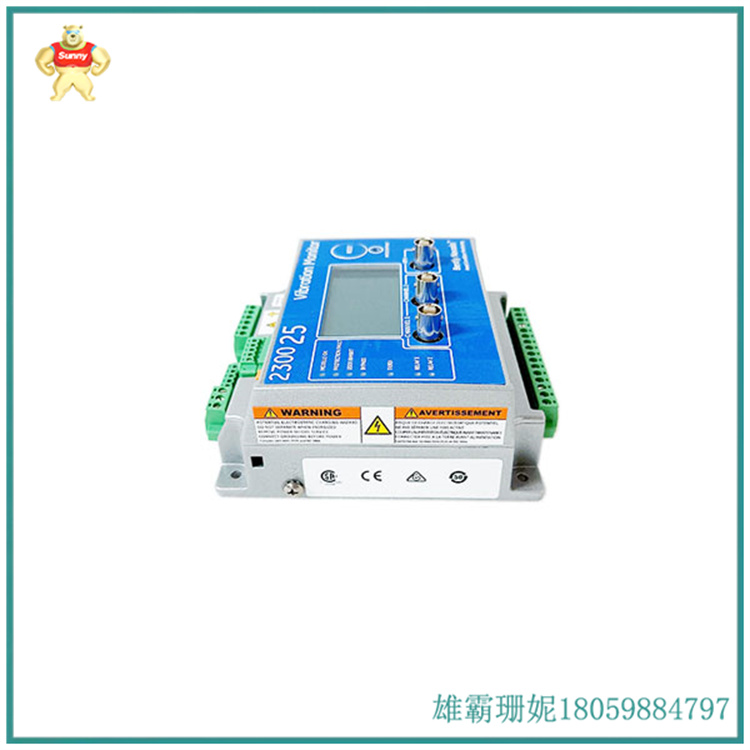

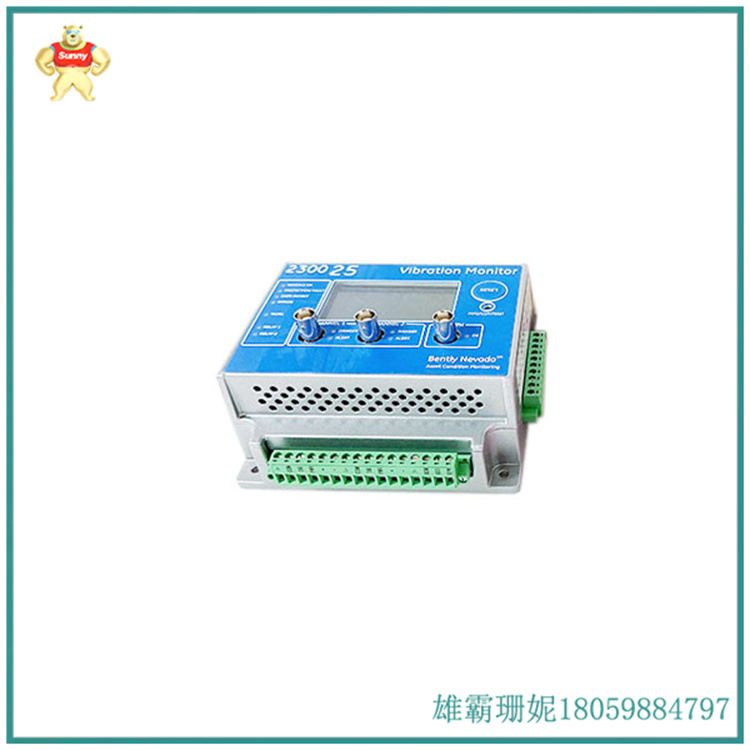

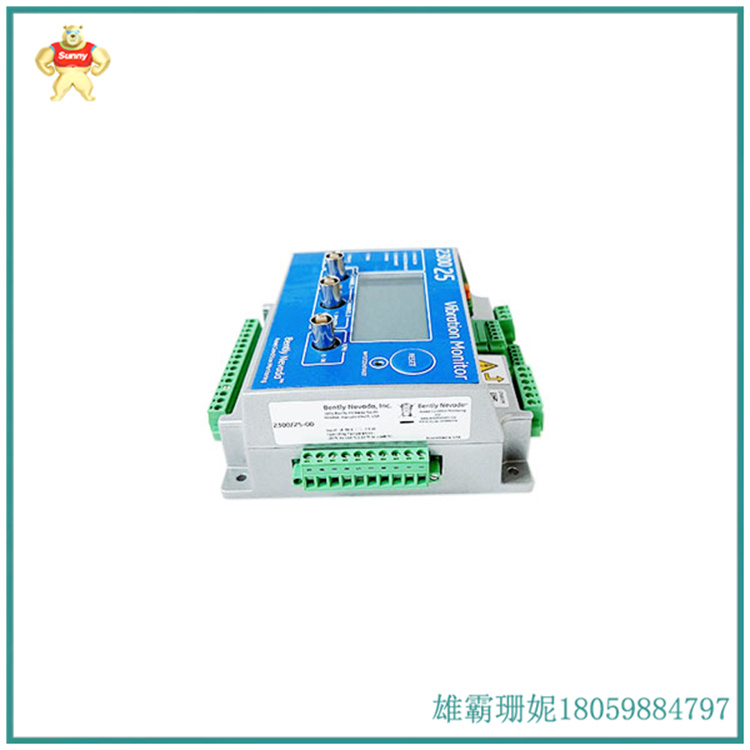

BENTLY 230025-00 振动检测仪

本特利(Bently)2300/25双通道监测器对振动进行在线监测，并发出振动高报警.它有两个地震式振动测量输入通道可接收多种加速度传感器的输入; -个转速输

入通道同于时间同步测量;其输出包括继电器接点输出, 4- 20mA*输出, SPA*输出,以吸Modbus TCP输出.利用GE本特利内华达监测器组态软件(BNMC)可

极其便利地对2300进行组态设置.

3500系统的高度模块化设计包括:

3500/05仪表框架(必需的)

一或两个3500/15电源(必需的)

3500/22M瞬态数据接口模块或3500/20框架接口模块(必需的要求)

.一或两个3500/25键相模 块(可选的)

3500框架组态软件(必需的)

.一个或多个3500/XX监测器模块(必需的)

. -个或多个3500/32继电器模块或3500/34三重冗余继电器模块(可选的)

. -个或多个3500/92通讯网关模块(可选的)

3500/93、3500/94或3500/95显示装 置或运行于兼容PC机上的3500操作者显示软件

.内部或外部本质安全栅，或用于危险地区安装的电气隔离装置。

The Bently 2300/25 dual channel monitor monitors vibration online and emits a high vibration alarm. It has two seismic vibration measurement input channels that can receive inputs from various acceleration sensors- Speed input

The input channel is synchronized with time measurement; Its outputs include relay contact output, 4-20mA * output, SPA * output, and Modbus TCP output. By using the GE Bentley Nevada Monitor Configuration Software (BNMC)

Extremely convenient configuration settings for 2300

The highly modular design of the 3500 system includes:

3500/05 Instrument Frame (Required)

One or two 3500/15 power supplies (required)

3500/22M Transient Data Interface Module or 3500/20 Frame Interface Module (required)

One or two 3500/25 Keyphasor Modules (optional)

3500 Rack Configuration Software (Required)

One or more 3500/XX monitor modules (required)

One or more 3500/32 relay modules or 3500/34 triple redundant relay modules (optional)

- One or more 3500/92 communication gateway modules (optional)

3500/93, 3500/94, or 3500/95 display device or 3500 operator display software running on a compatible PC

Internal or external intrinsic safety barriers, or electrical isolation devices installed in hazardous areas.
