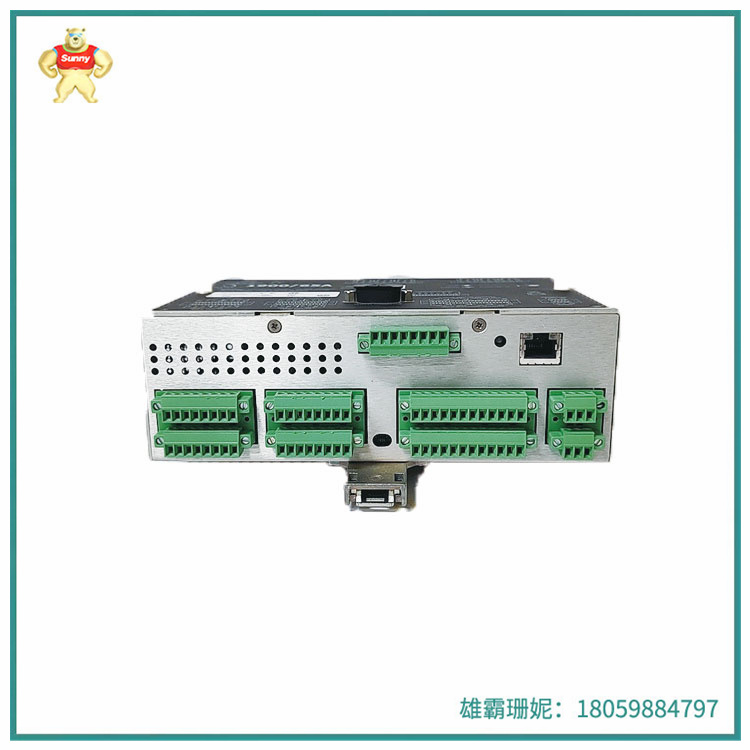

1900/65A-00-00-01-00-00  设备监视器 提供6个继电器输出

描述

190065A-00-00-01-00-00通用设备监视器是旨在持续监测和保护各种应用和行业中使用的设备。的Monitor的低成本使其成为通用机器和过程的理想解决方案，可以从持续监控和保护中受益。

190065A-00-00-01-00-00提供4个传感器输入和4个温度输入。软件可以配置每个传感器输入，以支持2线和3线加速度计，速度传感器或接近传感器。每个温度输入支持E型，J型，K型和T型热电偶，以及2线或3线rtd。

输出1900/65A提供6个继电器输出，4个4-20 mA记录仪输出，以及专用缓冲输出。用户可以使用1900组态软件配置继电器触点根据OK、Alert和关闭

任何通道或通道组合的危险状态，并从任何记录器输出的任何通道的任何变量提供数据。190065A-00-00-01-00-00专用缓冲输出可以为每个换能器输入提供信号。

Modbus网关选项允许监视器直接向任何Modbus客户端提供动态变量、状态、事件列表、时间和日期信息，包括分布式控制系统(dcs)、监控和数据采集(SCADA)系统、190065A-00-00-01-00-00可编程逻辑控制器(plc)或system 1软件。监视器使用内部计数器和aModbus客户机/主时间引用来生成时间和日期信息。用户可以通过订购1900/01 CommunicationsUpgrade来升级没有modbus网关的监视器(参见订购信息部分)。

1900/65A-00-00-01-00-00  设备监视器 提供6个继电器输出

Description

190065A-00-00-01-00-00 Universal Equipment Monitor Yes

Designed to continuously monitor and protect equipment used in a variety of applications and industries. the

Monitor's low cost makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection.

190065A-00-00-01-00-00 Provides 4 sensor inputs and 4 temperature inputs. The software can be configured with each sensor input to support 2-wire and 3-wire accelerometers, speeds

Sensor or proximity sensor. Each temperature input supports type E, J, K, and T thermocouples, as well as 2-wire or 3-wire RTDS.

exportation

The 1900/65A offers six relay outputs, four 4-20 mA

Recorder output, and dedicated buffer output. Users can use the 1900 configuration software to configure relay contacts according to OK, Alert and off

The hazardous status of any channel or combination of channels and provides data from any logger output on any variable of any channel. 190065A-00-00-01-00-00 Special buffer output can provide a signal for each transducer input.

The Modbus Gateway option allows the monitor to provide dynamic variables, status, event lists, time and date information directly to any Modbus client. These include Distributed control systems (dcs), supervisory Control and Data acquisition (SCADA) systems, 190065A-00-00-01-00-00 Programmable Logic controllers (PLCS) or system 1 software. The monitor uses internal counters and aModbus client/master time references to generate time and date information. Users can upgrade a monitor without a modbus gateway by ordering 1900/01 CommunicationsUpgrade (see Ordering Information section). The 1900/65A
