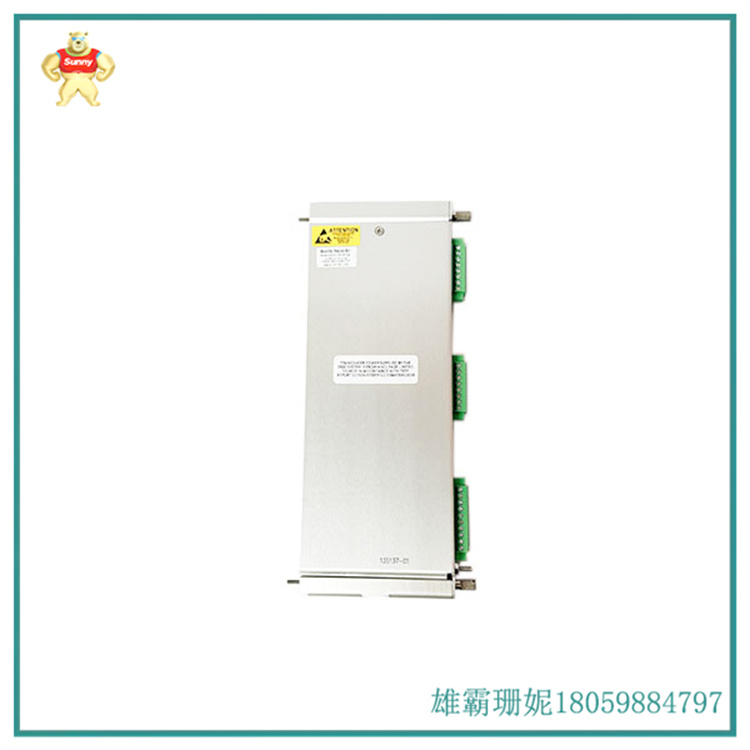

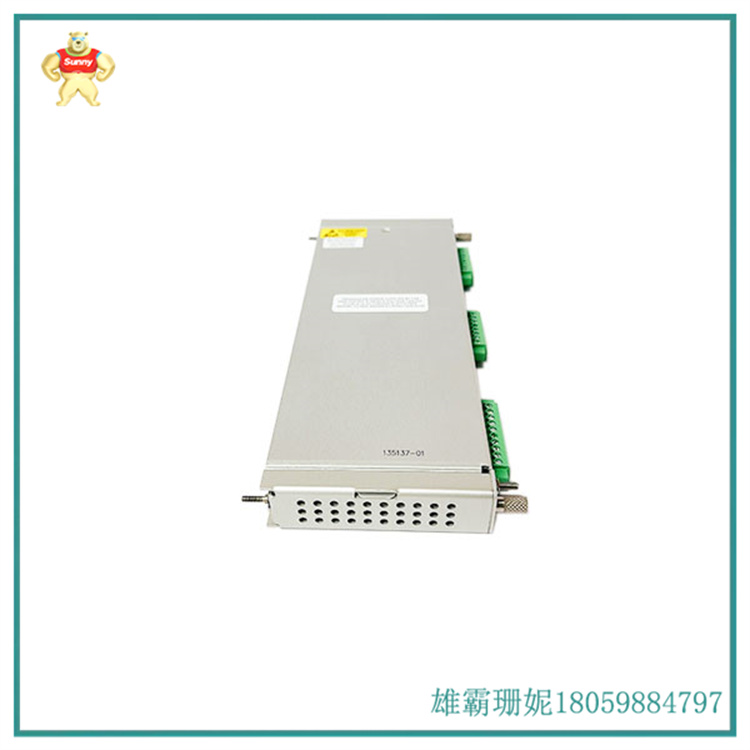

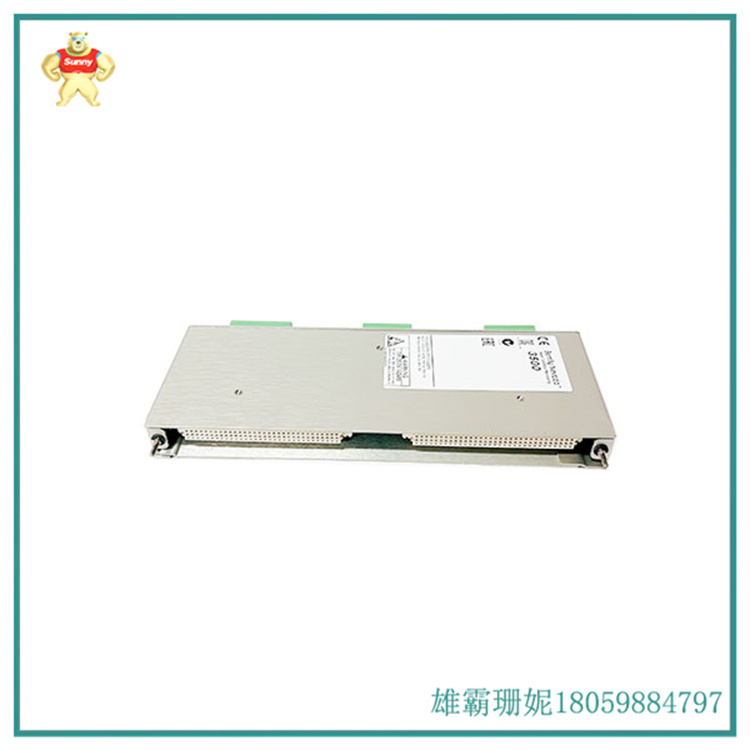

BENTLY 135137-01 带内部端接的 I/O 模块

135137-01 是带有内部端接的位置 I/O 模块，用于感应器、RPT 或直流 LVDT。它由本特利内华达设计和开发。它是 3500/45 监控系统的一部分。该位置监视器是一个 4 通道设备，可以接收来自旋转电位计、电涡流传感器、直流线性可变差动变压器、交流线性可变差动变压器和旋转位置传感器 （RPT） 的输入。

135137-01功能说明

位置监视器的主要功能是提供以下功能：

• 通过连续将监控参数与预定义的报警设定值进行比较来触发报警，从而保护机械。
• 操作和维护人员的重要机器知识

135137-01特点

• 本特利内华达 3500/45 位置监视器有四个通道，可接受来自电涡流传感器、旋转位置传感器 （RPT）、直流线性可变差动变压器 （DC LVDT）、交流线性可变差动变压器 （AC LVDT） 和旋转电位器的输入。
• 该监视器的主要功能是通过不断将监控参数与配置的警报设定点进行比较来驱动警报并收集关键机器信息以进行操作和维护，从而保护您的机器。
• 监视器先处理输入，然后再将其与用户可编程警报进行比较。监控通道成对编程，一次最多可以执行其中两个功能。

• 例如，通道 1 和 2 可以执行一个功能，而通道 3 和 4 可以执行相同或不同的功能。

135137-01 is a position I/O module with internal termination, used for sensors, RPTs, or DC LVDTs. It was designed and developed by Bently Nevada. It is part of the 3500/45 monitoring system. The position monitor is a 4-channel device that can receive inputs from rotary potentiometers, eddy current sensors, DC linear variable differential transformers, AC linear variable differential transformers, and rotary position sensors (RPTs).

135137-01 Function Description

The main function of the position monitor is to provide the following functions:

By continuously comparing monitoring parameters with predefined alarm settings, an alarm is triggered to protect the machinery.

Important machine knowledge for operation and maintenance personnel

135137-01 Features

Bently Nevada 3500/45 position monitor has four channels and can accept input from eddy current sensor, rotating position sensor (RPT), DC linear variable differential transformer (DC LVDT), AC linear variable differential transformer (AC LVDT) and rotating potentiometer.

The main function of this monitor is to drive alarms and collect critical machine information for operation and maintenance by continuously comparing monitoring parameters with configured alarm setpoints, thereby protecting your machine.

The monitor first processes the input and then compares it with user programmable alarms. The monitoring channels are programmed in pairs and can perform up to two functions at a time.

For example, channels 1 and 2 can perform a function, while channels 3 and 4 can perform the same or different functions.
