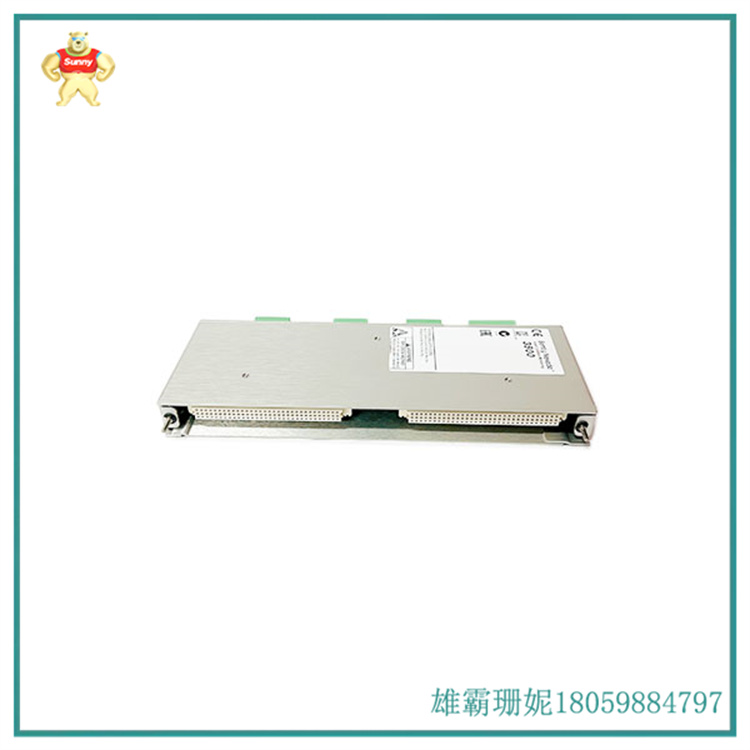

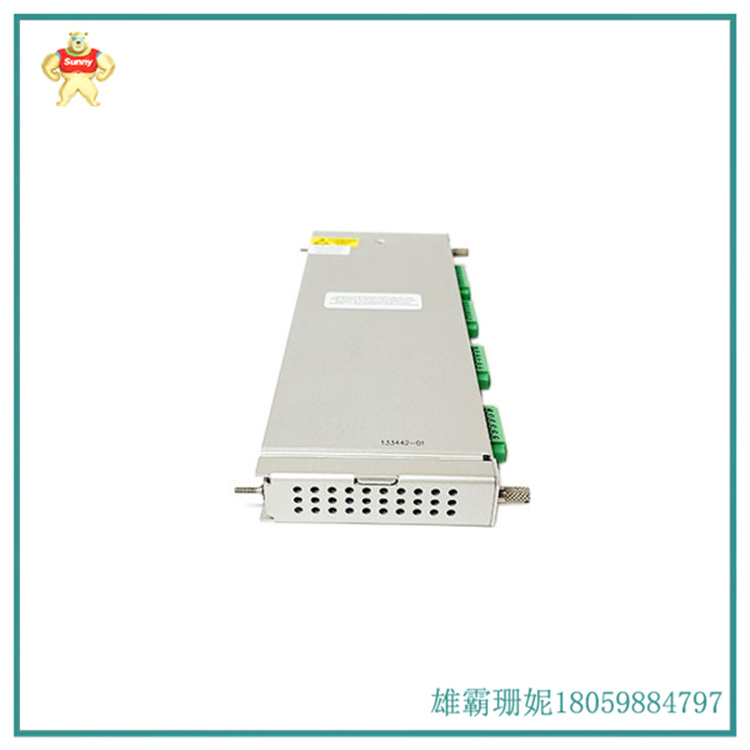

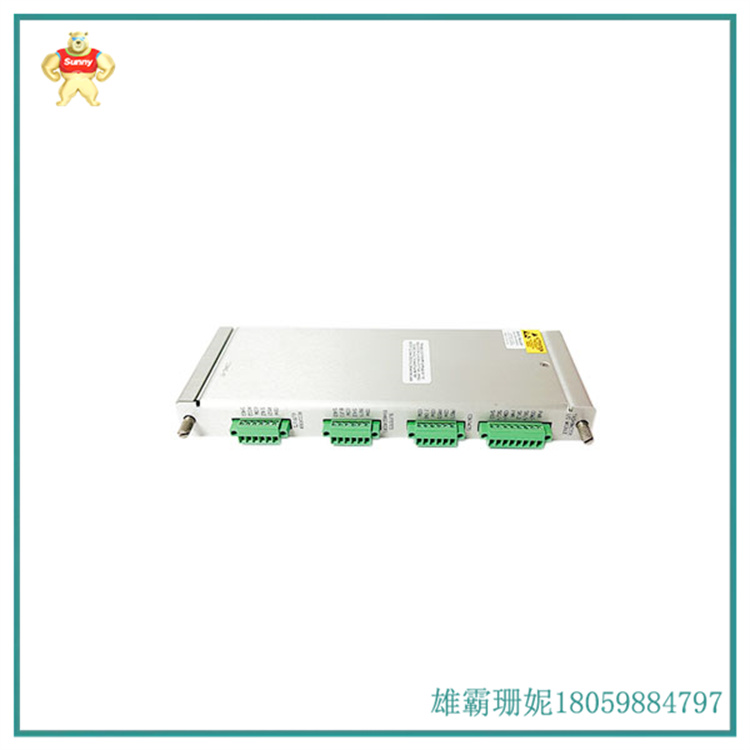

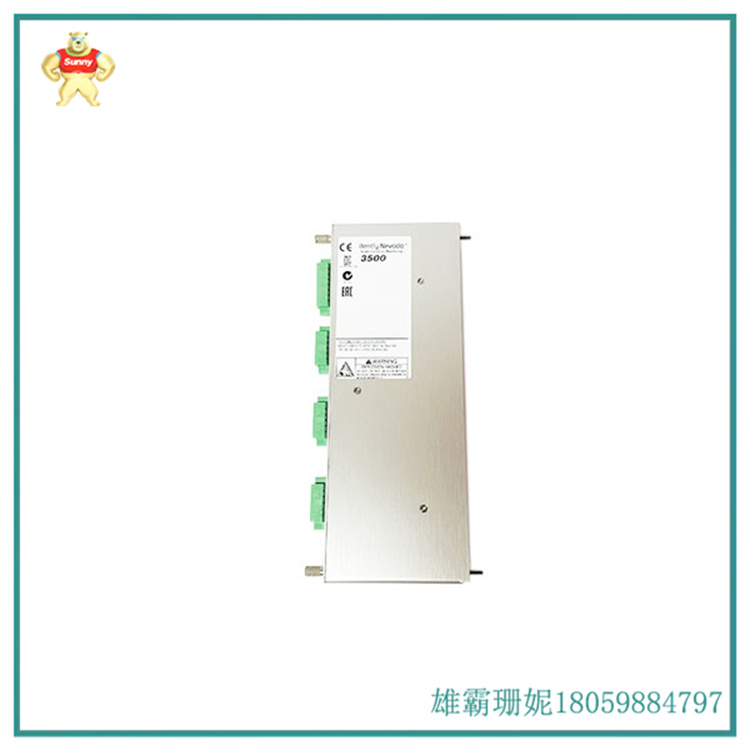

BENTLY 133442-01 内部端接的I/O模块

133442-01是由本特利内华达开发的具有内部端接的I/O模块。它是3500/55M转速表系统的一部分。为了检测轴转速、转子加速度或转子方向，转速计模块（一个 2 通道模块）接受来自电涡流探头或磁性拾音器的输入。当超出设定值时，模块会生成警报，并将这些数据与用户可编程的报警设定值进行比较。

133442-01特点

• 转速计模块是一个双通道模块，它使用电涡流探头或磁性拾音器来确定轴旋转速度、转子加速度或转子方向。当将这些测量值与用户可编程的报警设定值进行比较时，模块会生成报警。
• 转速计模块可以配置为向 3500 机架的背板提供调节键相信号，以供其他监视器使用。因此，机架中不需要单独的Keyphasor模块。
• 外部端接块不能与内部端接 I/O 模块一起使用，而只能与 TMR I/O 模块一起使用。

133442-01 is an I/O module with internal termination developed by Bently Nevada. It is part of the 3500/55M tachometer system. To detect shaft speed, rotor acceleration, or rotor direction, the tachometer module (a 2-channel module) receives input from an eddy current probe or magnetic pickup. When the set value is exceeded, the module will generate an alarm and compare this data with the user programmable alarm set value.

133442-01 Features

The tachometer module is a dual channel module that uses eddy current probes or magnetic pickups to determine shaft rotation speed, rotor acceleration, or rotor direction. When comparing these measured values with user programmable alarm settings, the module generates an alarm.

The tachometer module can be configured to provide adjustable keyphase signals to the backplane of the 3500 rack for use by other monitors. Therefore, a separate Keyphasor module is not required in the rack.

External termination blocks cannot be used with internal termination I/O modules, but can only be used with TMR I/O modules.
