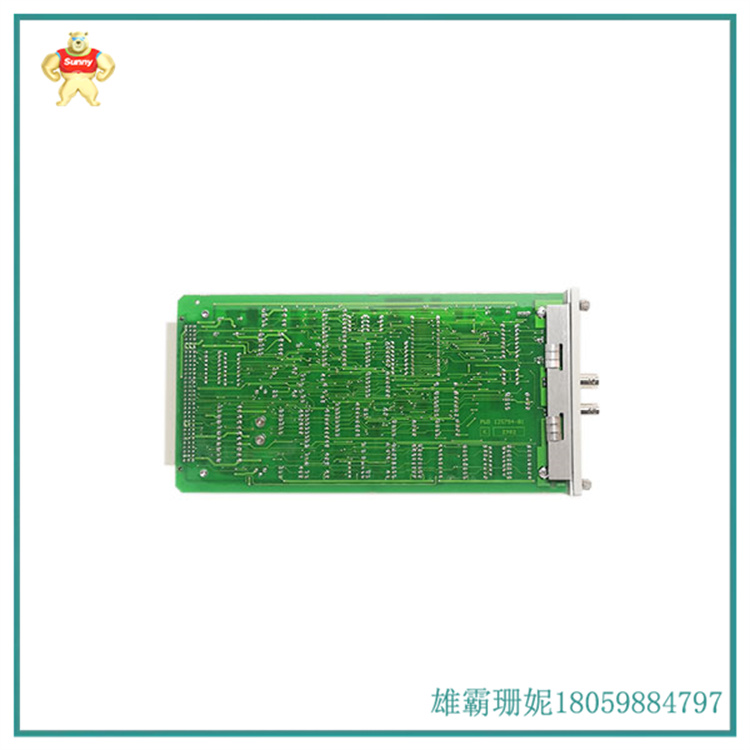

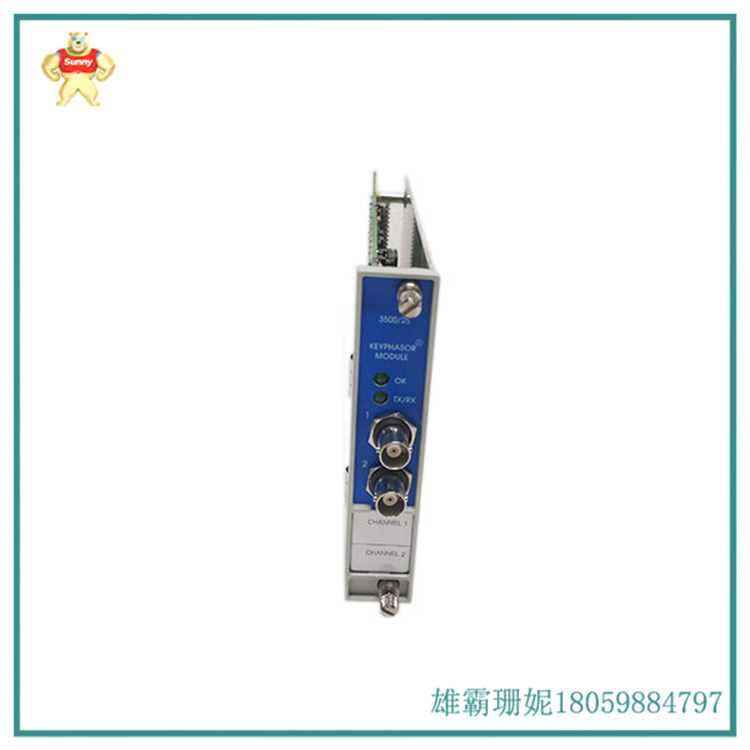

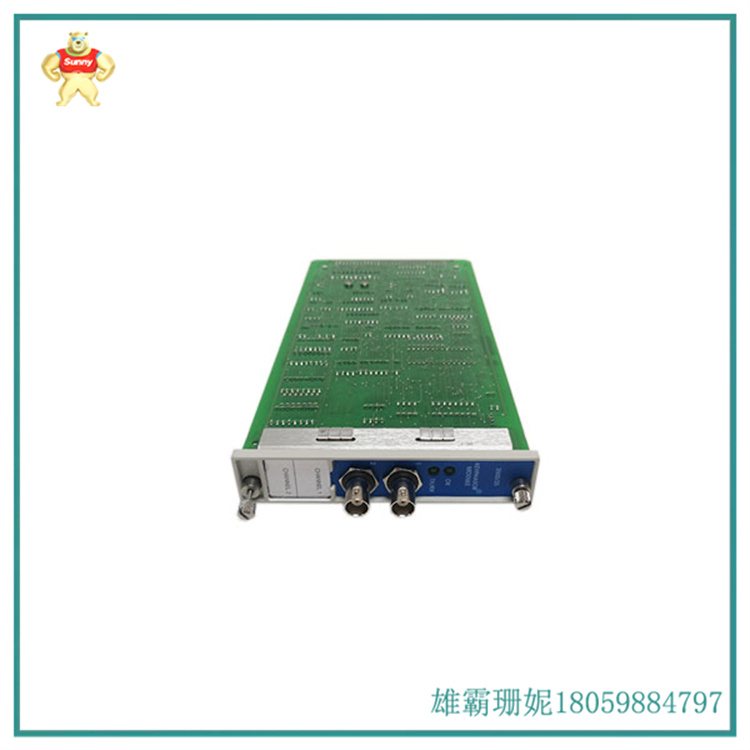

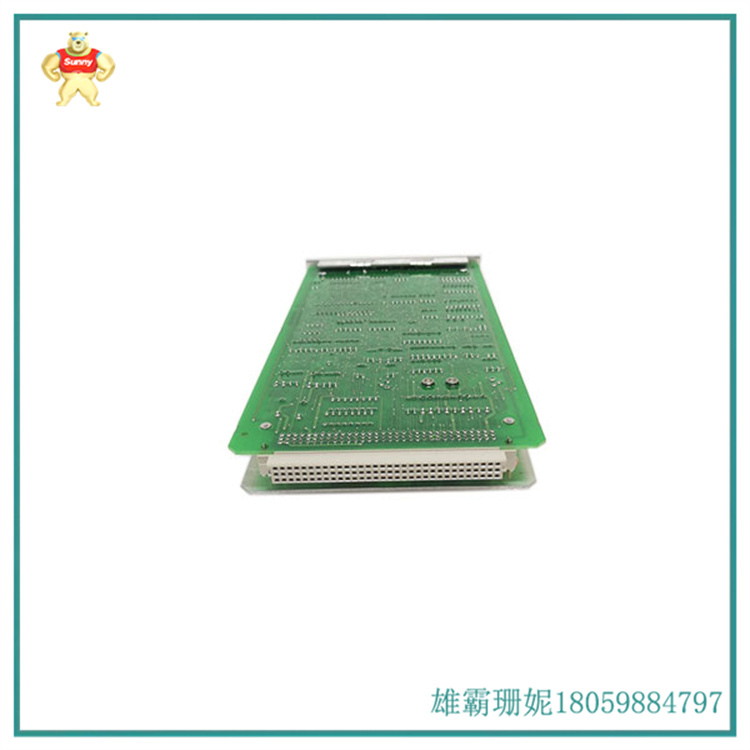

BENTLY 125792-01 半高双通道模块

本特利内华达增强型键相器模块是一个半高双通道模块，用于向 3500 机架中的监视器模块提供键相信号。该模块接收来自电涡流探头或磁性拾音器的输入信号，并将信号转换为数字键相信号，指示轴上的键相标记何时与键相传感器重合。3500 机械保护系统可以接受多达 <> 个键相信号进行正常配置，最多接受 <> 个键相信号进行配对配置。

增强型键相模块是改进的 3500 系统模块。与以前的设计相比，它提供了扩展的Keyphasor信号处理功能，同时在形式，配合和功能方面与用于传统系统的现有Keyphasor模块保持完全向下兼容性。键相模块 PWA 125792-01 完全被更新的 149369-01 模块取代。

The Bentley Nevada Enhanced Keyphasor Module is a half height dual channel module used to provide keying signals to monitor modules in a 3500 rack. This module receives input signals from eddy current probes or magnetic pickups and converts the signals into digital keyphasor signals, indicating when the keyphasor markings on the shaft coincide with the keyphasor sensor. The 3500 mechanical protection system can accept up to<>key signals for normal configuration, and up to<>key signals for pairing configuration.

The Enhanced Keyphasor Module is an improved 3500 system module. Compared to previous designs, it provides extended Keyphasor signal processing capabilities while maintaining full downward compatibility with existing Keyphasor modules used in traditional systems in terms of form, coordination, and functionality. The key phase module PWA 125792-01 has been completely replaced by the updated 149369-01 module.
