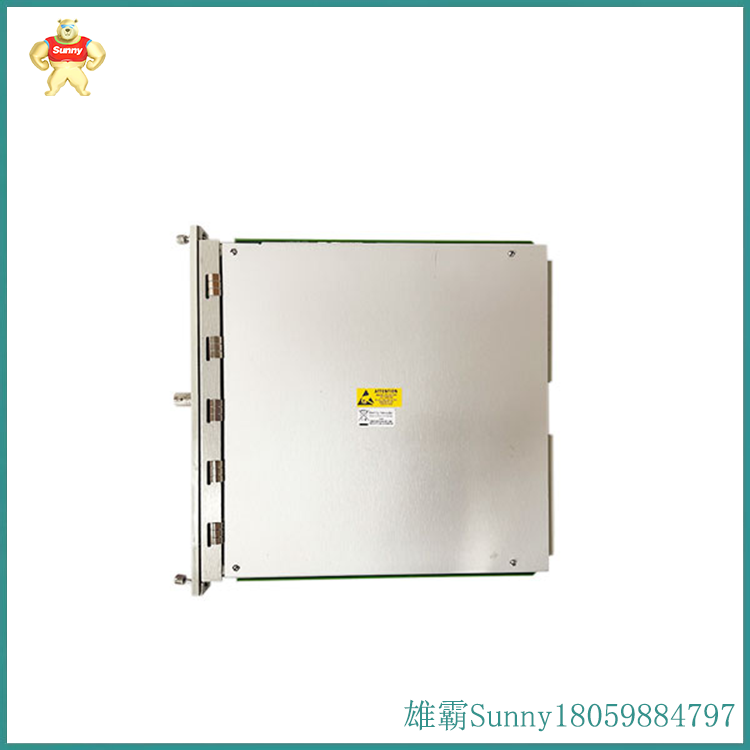

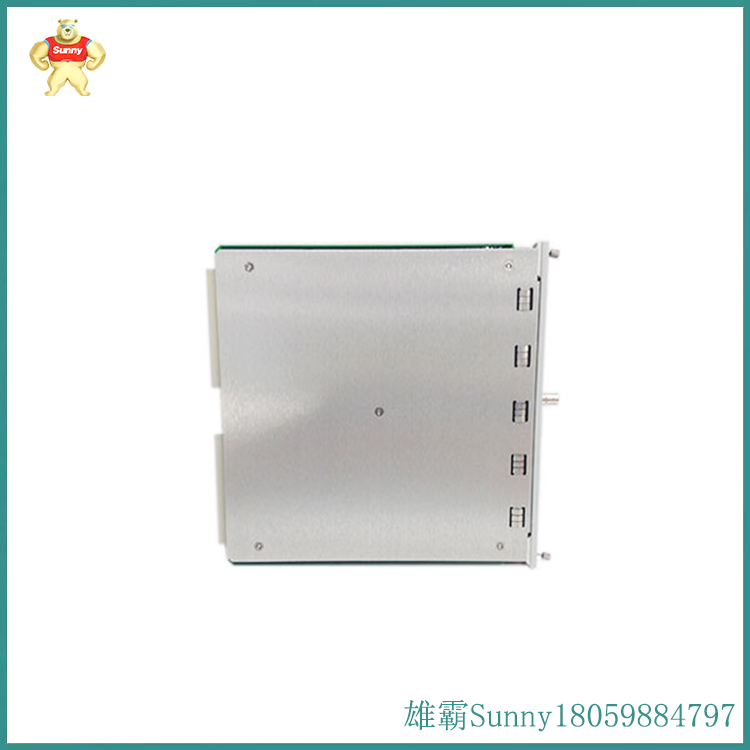

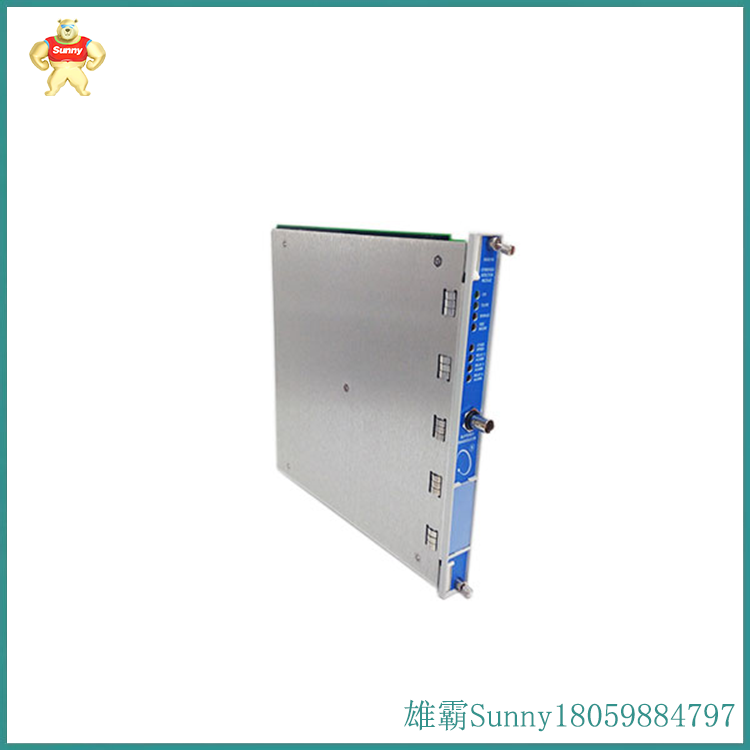

BENTLY 3500/53 电子超速检测系统

3500/53是由本特利内华达设计和开发的电子超速检测系统。用于3500系列机械检测系统的本特利内华达电子超速检测系统是一种高度可靠、快速响应的冗余转速表系统，设计用作超速保护系统的一部分。它旨在满足美国石油学会 （API） 标准 670 和 612 的超速保护要求。这些模块可以组合成 2 分之 2 或 2 分之 3 的投票系统（推荐）。超速检测系统需要带有冗余电源的 3500 机架。

输入

信号：每个超速检测模块接受来自电涡流探头探头或磁性拾音器的单个传感器信号。输入信号的电压范围为+10.0 V至-24.0 V，超出此范围的信号在内部受到模块的限制。

输入阻抗：20 k 欧姆。

功耗：8.0 瓦，典型值。

换能器：本特利内华达3300 8 mm近似器3300 16毫米HTPS、7200 5毫米、8毫米、11毫米和14毫米近似器;3300 RAM 接近器或磁性拾音器。

警报

报警设定点：速度可以设置为低于和超过警报级别（设定点）。也可以为速度设置危险（超速）设定值。所有报警设定点均使用软件进行配置。警报是可调的，通常可以在满量程速度范围的 0% 到 100% 之间设置。

报警延时：30 Hz 以上小于 300 ms。

3500/53 is an electronic overspeed detection system designed and developed by Bently Nevada. The Bentley Nevada electronic overspeed detection system used for the 3500 series mechanical detection system is a highly reliable and responsive redundant tachometer system designed as part of the overspeed protection system. It is designed to meet the overspeed protection requirements of American Petroleum Institute (API) standards 670 and 612. These modules can be combined into a two-thirds or two-thirds voting system (recommended). The overspeed detection system requires a 3500 rack with redundant power supplies.

input

Signal: Each overspeed detection module receives a single sensor signal from an eddy current probe or magnetic pickup. The voltage range of the input signal is+10.0 V to -24.0 V, and signals outside this range are internally limited by the module.

Input impedance: 20 k ohms.

Power consumption: 8.0 watts, typical value.

Transducers: Bentley Nevada 3300 8mm approximators 3300 16mm HTPS, 7200 5mm, 8mm, 11mm, and 14mm approximators; 3300 RAM Proximitor or Magnetic Pickup.

alert

Alarm Setpoint: The speed can be set below and above the alarm level (set point). You can also set the danger (overspeed) setting for speed. All alarm setpoints are configured using software. The alarm is adjustable and can usually be set between 0% and 100% of the full scale speed range.

Alarm delay: Above 30 Hz but less than 300 ms.
