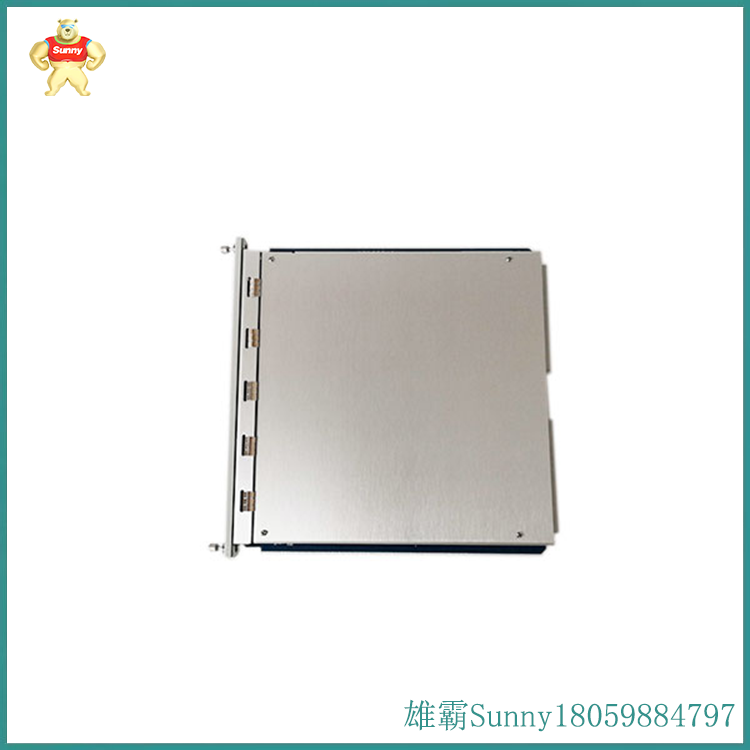

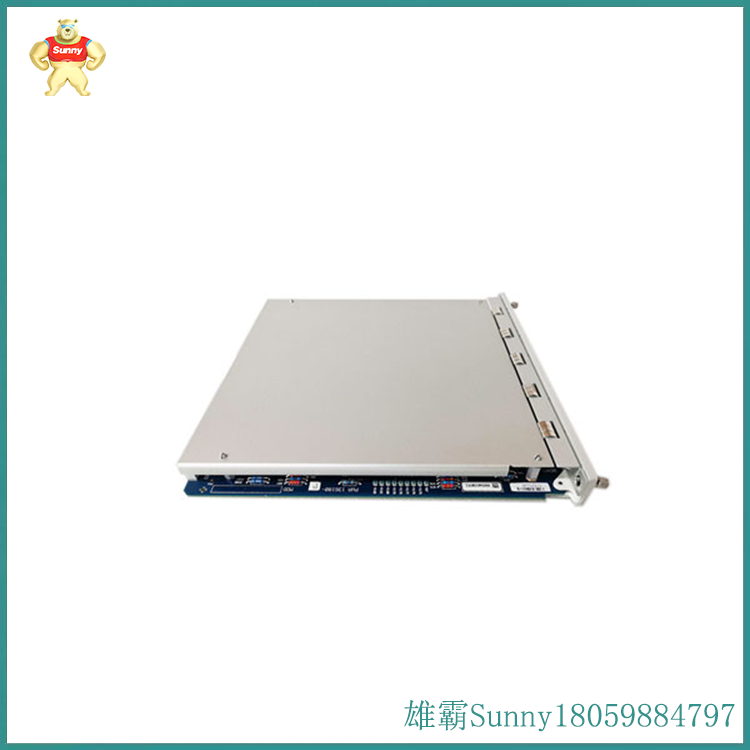

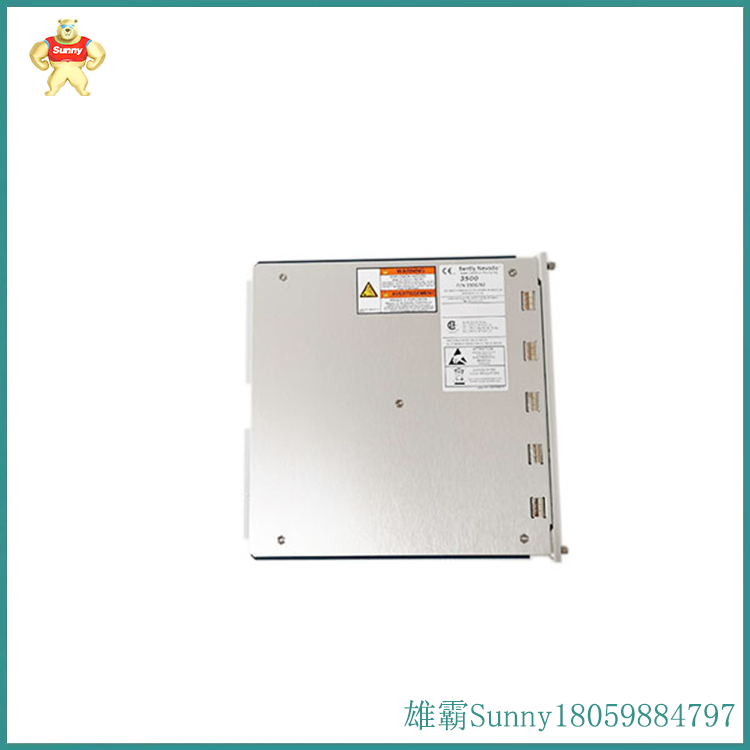

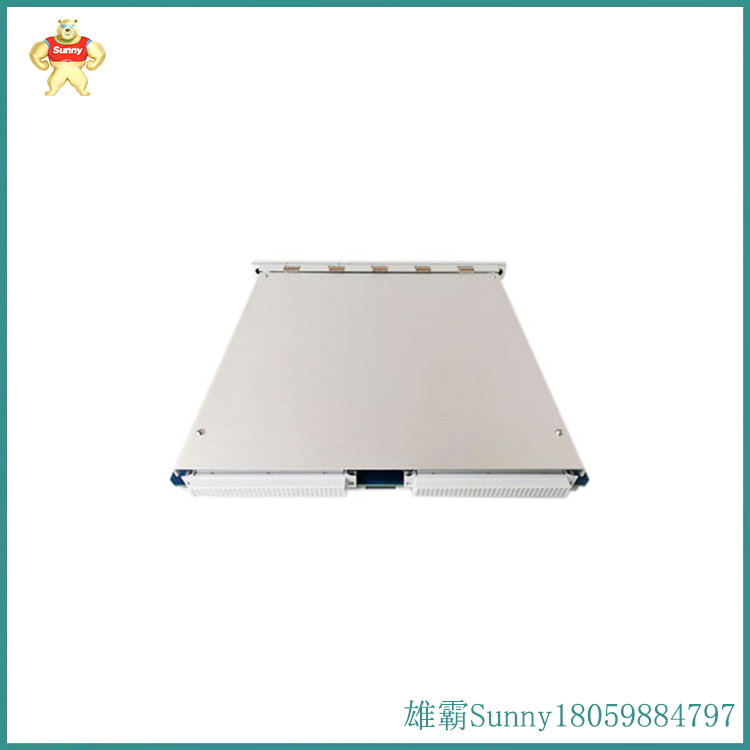

BENTLY 136180-01 通信网关模块

3500/92通信网关模块提供了广泛的所有机架监控值和状态的通信能力集成过程控制和其他自动化系统使用两者以太网TCP/IP和串行

(RS232/RS422/RS485)通信能力。它也允许以太网通信与3500机架配置软件和数据采集软件。

支持的协议包括:

.Modicon⑧Modbus⑧协议(通过串行通信)

.Modbus/TCP协议(用于TCP/IP的串行Modbus的变体)以太网通信)

专有的Bently Nevada协议(用于与3500机架通信)配置和数据采集软件包)

3500/92的以太网连接是10BASE-T星的RJ45连接配置以太网网络。

3500/92支持通信接口、通信协议、和其他功能从原来的3500/90除了主value Modbus寄存器。3500/92现在有一个可配置的Modbus寄存 器控件

所处理的相同功能primary value Modbus寄存器。

The 3500/92 Communication Gateway Module provides a wide range of communication capabilities for all rack monitoring values and statuses, integrating process control and other automation systems using both Ethernet TCP/IP and serial

(RS232/RS422/RS485) communication capability. It also allows Ethernet communication with 3500 rack configuration software and data acquisition software.

The supported protocols include:

Modicon ⑧ Modbus ⑧ protocol (via serial communication)

Modbus/TCP protocol (a variant of serial Modbus for TCP/IP) Ethernet communication

Proprietary Bently Nevada protocol (for communication with 3500 racks) configuration and data acquisition software package

The Ethernet connection of 3500/92 is configured with a 10BASE-T star RJ45 Ethernet network.

The 3500/92 supports communication interfaces, communication protocols, and other functions in addition to the main value Modbus register from the original 3500/90. 3500/92 now has a configurable Modbus register control

The primary value Modbus register for the same function being processed.
