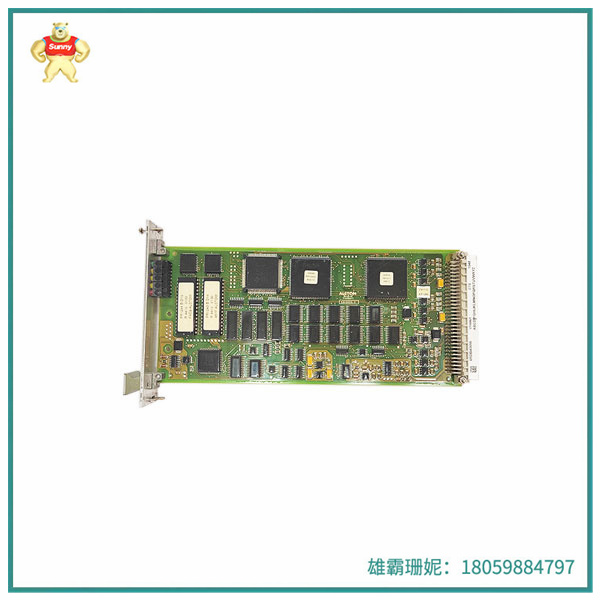

NRD108028-8RDB43655-SA43655 自动化电源模工业自动化生产线

655 SA43655.E ALSTOM自动化电源模块

产品参数

·品牌:ALSTOM

。型号:NRD108028 8RDB43655 SA43655.E

·适用范围:工业自动化

产品规格

·输入电压:24V DC·输出电压:24V DC

。额定电流:5A·保护等级:IP20

·工作温度:-25°C~+55℃

·存储温度:-40°℃~+85℃

·相对湿度:5%~95%

。尺寸:110mm×80mm×40mm应用领域

NRD108028-8RDB43655-SA43655主要应用于工业自动化生产线、机器人控制系统等领域。

电源模块是一种可以直接贴装在印刷电路板上的电源转换器，按变换方式一般分为AC转DC或DC转DC。

NRD108028-8RDB43655-SA43655电源模块的特点：

体积小，功率密度高，可靠性高，抗干扰能力强。

可以为专用集成电路（ASIC）、数字信号处理器（DSP）、微处理器、存储器、现场可编程门阵列（FPGA）及其他数字或模拟负载提供供电。

应用范围广，适应能力强，适合于各种通信领域和汽车电子、航空航天等领域。

NRD108028-8RDB43655-SA43655电源模块是一种可以直接焊接直插在电路板上的电源转换器，按变换方式一般分为AC转DC或DC转DC。其常见的知识点有：

输入整流滤波器，包含整流桥和输入滤波电容。

单片开关电源，包括功率开关管、控制器及MOSFET。

高频变压器、漏级钳位保护电路、光耦反馈电路、输出整流滤波器、偏置电路等部分组成。

电源模块通过输入整流滤波器一般可以适配交流85~265V或直流100~370V的输入电压范围，频率有47~400Hz选择，常规一般为50/60Hz。

电源模块具有小体积、高集成度、高性价比和最佳性能指标，只需要最简的外围电路，配上少量分立式元件即可使用。

NRD108028-8RDB43655-SA43655 自动化电源模工业自动化生产线

655 SA43655.E ALSTOM Automation power module

Product parameter

· Brand :ALSTOM

. Model :NRD108028 8RDB43655 SA43655.E

· Application scope: Industrial automation

Product specification

· Input voltage :24V DC· Output voltage :24V DC

. Rated current :5A· Protection level :IP20

· Operating temperature :-25°C~+55 °C

· Storage temperature :-40° C ~+85 ° C

· Relative humidity :5%~95%

. Size :110mm×80mm×40mm Application field

NRD108028-8RDB43655-SA43655 is mainly used in industrial automation production line, robot control system and other fields.

The power module is a power converter that can be mounted directly on the printed circuit board, which is generally divided into AC to DC or DC to DC according to the conversion method.

NRD108028-8RDB43655-SA43655 Features of the power module:

Small size, high power density, high reliability, strong anti-interference ability.

It can power application-specific integrated circuits (ASics), digital signal processors (DSPS), microprocessors, memory, field programmable gate arrays (FPgas), and other digital or analog loads.

Wide range of applications, strong adaptability, suitable for various communication fields and automotive electronics, aerospace and other fields.

NRD108028-8RDB43655-SA43655 Power module is a power converter that can be directly welded and inserted on the circuit board, which is generally divided into AC to DC or DC to DC according to the conversion method. Its common knowledge points are:

The input rectifier filter comprises a rectifier bridge and an input filter capacitor.

Monolithic switching power supply, including power switching tube, controller and MOSFET.

High frequency transformer, leakage clamp protection circuit, optocoupler feedback circuit, output rectifier filter, bias circuit and so on.

The power module can generally adapt the input voltage range of AC 85~265V or DC 100~370V through the input rectifier filter, and the frequency is 47~400Hz, and the general frequency is 50/60Hz.

The power module has a small size, high integration, high cost performance and the best performance indicators, only the simplest peripheral circuit, with a small number of discrete components can be used.
