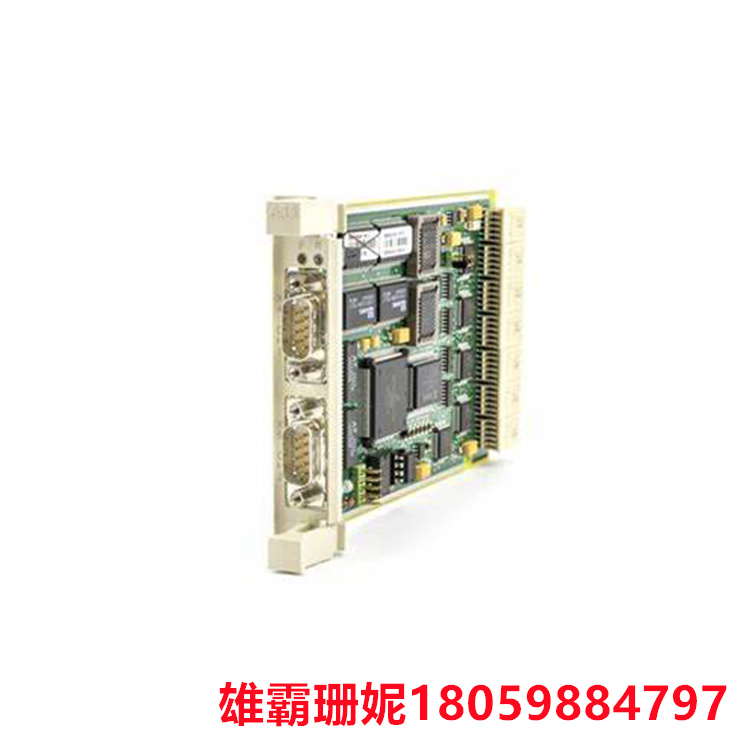

CI535V30  模拟量扩展模块 采用32位高精度AD采集

产品编号：编号：3BSE022162R1

ABB型号名称：CI535V30

目录说明：CI535V30 SPA Server 协议 SPA 总线，

详细描述：CI535V30 SPA 服务器协议 SPA 总线，最多 50 个节点

海关编码：854442--绝缘（包括漆包或阳极氧化）电线、电缆（包括同轴电缆）和其他绝缘电导体，无论是否装有连接器;光纤电缆，由独立护套的光纤组成，无论是否与电导体组装或装有连接器。 其他电导体，电压不超过 1,000 V ：-- 配有连接器

海关税则号：85444290

尺寸

产品净深度/长度：120 毫米

产品净高：20 毫米

产品净宽：245 毫米

产品净重：0.15 千克

3BSE022162R1是ABB的模拟量扩展模块

DAM模块可实现2/4路模拟量和2/4路热电阻PT100/PT1000温度信号测量。模块通讯接口为RS-485口，MODBUS-RTU通讯协议。DC9～36V电源供电。DAM模块可应用于各种工业自动化测量与控制系统中。可测量压力、温度、电量等变送器输出的4～20mA、0-20mA、0-10V或0～5V信号，及PT100等各型号的热电阻温度。本系列产品采用32位高精度AD采集和数据处理技术、专业MCU控制器、非线性处理算法，具有高精度、性能稳定、抗干扰能力强等特点，是一款高性价比的产品。

CI535V30  模拟量扩展模块 采用32位高精度AD采集

Product Number: Number: 3BSE022162R1

ABB model name: CI535V30

Description: CI535V30 SPA Server Protocol SPA bus,

Description: CI535V30 SPA server Protocol SPA bus, up to 50 nodes

854442- Insulated (including enamelled or anodized) wires, cables (including coaxial cables) and other insulated electrical conductors, whether or not fitted with connectors; Fiber optic cable, consisting of individually sheathed optical fibers, whether or not assembled with electrical conductors or fitted with connectors. Other electrical conductors, voltage not exceeding 1,000 V: -- equipped with connectors

Customs Tariff Code: 85444290

dimension

Product net depth/length: 120 mm

Product height: 20 mm

Product width: 245 mm

Net weight: 0.15kg

The 3BSE022162R1 is ABB's analog expansion module

The DAM module can measure the temperature signal of 2/4-channel analog and 2/4-channel thermal resistance PT100/PT1000. The module communication interface is RS-485 port and MODBUS-RTU communication protocol. DC9 ~ 36V power supply. DAM module can be used in various industrial automation measurement and control systems. It can measure 4 ~ 20mA, 0 ~ 20mA, 0 ~ 10V or 0 ~ 5V signals output by transmitters such as pressure, temperature and electricity, and the thermal resistance temperature of various models such as PT100. This series of products adopts 32-bit high-precision AD acquisition and data processing technology, professional MCU controller, nonlinear processing algorithm, with high precision, stable performance, strong anti-interference ability and other characteristics, is a cost-effective product.
