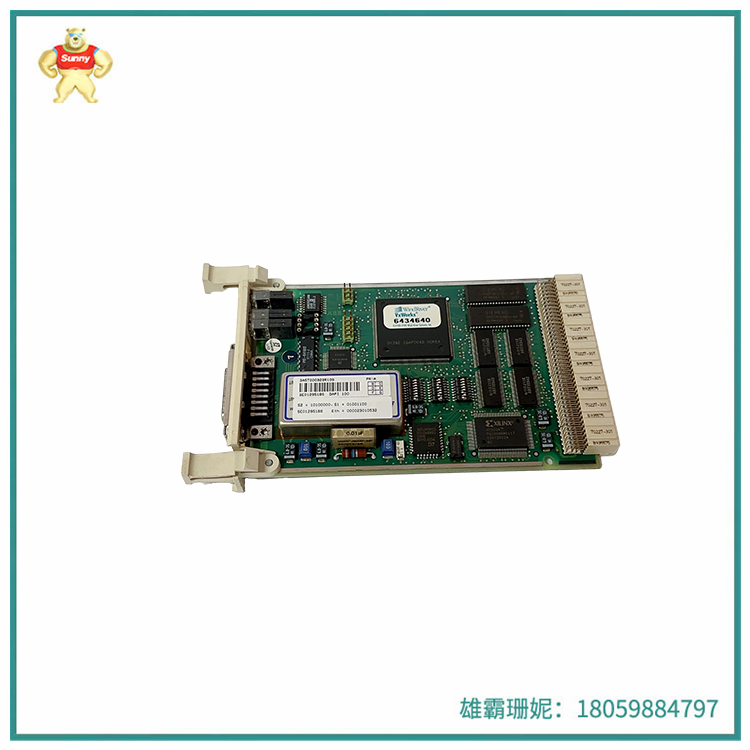

以太网通信器接口  DAPI100 3AST000929R109  用于传输数据

STUP-DAPI100-CI545型

一般信息

产品编号：STUP-DAPI100-CI545型

ABB型号名称：DAPI 100 升级

目录说明：以太网通信器接口

类别

零部件 » 控制系统 » Advant OCS with Master SW » 控制器 » Advant Controller 450 » Advant Controller 450 Version 2.3 » 通信模块

其他信息

介质描述：以太网 MVI

产品类型：Communication_Module

订购

海关税则号：8517620000

尺寸

产品净重：175 克

环境的

WEEE类别：5.小型设备（外部尺寸不超过50厘米）

STUP-DAPI100-CI545以太网通信器接口是一种用于将设备连接到以太网网络的接口。它允许设备通过以太网进行数据通信，从而实现设备之间的联网和数据共享。

STUP-DAPI100-CI545以太网通信器接口通常使用 RJ45 连接器，该连接器包含 8 个引脚，用于传输数据和提供电源。以太网通信器接口可以支持不同的以太网速度，例如 10Mbps、100Mbps、1Gbps 等。

STUP-DAPI100-CI545 以太网通信器接口通常由物理层、数据链路层和网络层组成。物理层负责处理电气信号和物理连接，数据链路层负责处理数据帧的封装和传输，网络层负责处理网络地址和路由。

以太网通信器接口广泛应用于计算机、服务器、网络设备、工业自动化设备等领域。它提供了一种高速、可靠的网络通信方式，使得设备之间可以方便地进行数据交换和共享。

以太网通信器接口  DAPI100 3AST000929R109  用于传输数据

STUP-DAPI100-CI545

General information

Product number: STUP-DAPI100-CI545

ABB Model name: DAPI 100 Upgrade

Directory Description: Ethernet communicator interface

category

Parts » Control System » Advant OCS with Master SW » Controller » Advant Controller 450 » Advant Controller 450 Version 2.3 » Communication Module

Other information

Medium description: Ethernet MVI

Product type: Communication_Module

order

Customs Code: 8517620000

dimension

Net weight: 175g

environmental

WEEE Category: 5. Small equipment (external size does not exceed 50 cm)

The UP-DAPI100-CI545 Ethernet communicator interface is an interface used to connect a device to an Ethernet network. It allows devices to communicate data over Ethernet, enabling networking and data sharing between devices.

The STUP-DAPI100-CI545 Ethernet communicator interface typically uses an RJ45 connector, which contains eight pins for transmitting data and providing power. Ethernet communicator interfaces can support different Ethernet speeds, such as 10Mbps, 100Mbps, 1Gbps, etc.

The STUP-DAPI100-CI545 Ethernet communicator interface usually consists of the physical layer, the data link layer and the network layer. The physical layer handles electrical signals and physical connections, the data link layer handles the encapsulation and transmission of data frames, and the network layer handles network addresses and routing.

Ethernet communicator interface is widely used in computer, server, network equipment, industrial automation equipment and other fields. It provides a high-speed and reliable network communication mode, so that data can be exchanged and shared easily between devices.
