励磁系统GFD563A102 3BHE046836R0102  实现对电机的控制

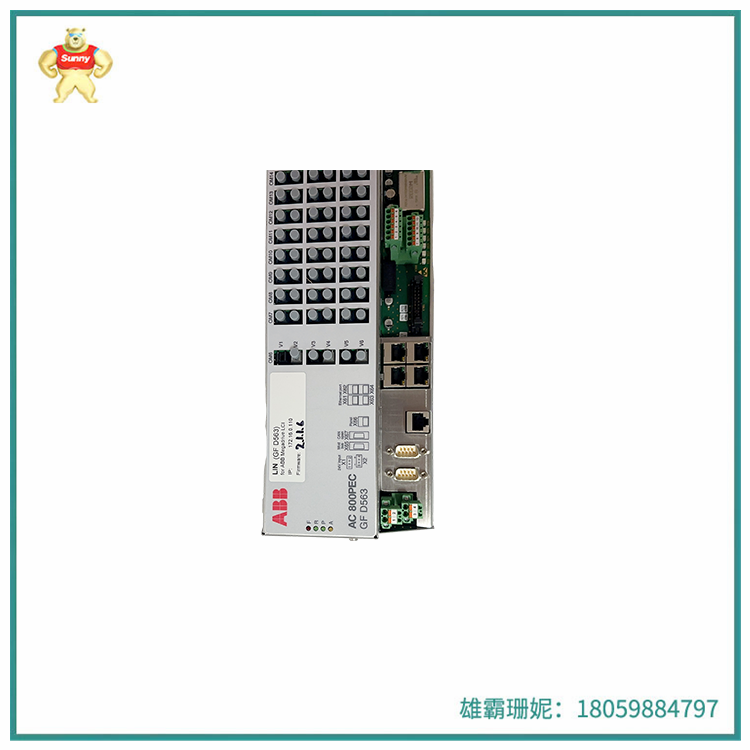

ABB励磁模块GFD563A102 3BHE046836R0102

　　GFD563A102 3BHE046836R0102 励磁系统的作用是利用励磁的方式，使机械和电机的性能得到改善，以及加速他们的正常工作速度，确保他们可以以较高的灵活性以及较高的精度提供最佳的服务。励磁系统分为两个主要分类，即电励磁系统和永磁励磁系统。

GFD563A102 3BHE046836R0102 电励磁系统中，电源可以生成和传输各种复杂的电磁场。由于主要部件是电开关，可以手动或自动控制，因此可以更容易、经济地进行性能优化。此外，通过低成本转换器，改变电流，可以精确操控电机运行参数。但是，电励磁系统存在受外界干扰程度高、维护困难等缺点。

励磁系统是同步电机中用于提供磁场的设备。它通过向电机的转子提供电流来产生磁场，从而使电机能够正常运转。

GFD563A102 3BHE046836R0102 励磁系统通常由一个励磁电源和一个励磁控制器组成。励磁电源可以是直流电源或交流电源，它提供电流来激励转子磁场。励磁控制器则用于控制励磁电流的大小和方向，以实现对电机的控制。

励磁系统在同步电机中扮演着重要的角色，它可以控制电机的输出功率、频率和电压等参数，同时也可以保护电机免受过载和短路等故障的影响。

励磁系统GFD563A102 3BHE046836R0102  实现对电机的控制

ABB excitation module GFD563A102 3BHE046836R0102

GFD563A102 3BHE046836R0102 The role of the excitation system is to use the excitation in a way that improves the performance of the machinery and motors, as well as accelerating their normal working speed, ensuring that they can provide the best service with high flexibility and high accuracy. Excitation systems are divided into two main categories, namely electrical excitation systems and permanent magnet excitation systems.

GFD563A102 3BHE046836R0102 In the electrical excitation system, the power supply can generate and transmit a variety of complex electromagnetic fields. Since the main component is an electrical switch, which can be controlled manually or automatically, performance optimization can be carried out more easily and economically. In addition, by changing the current through a low-cost converter, the operating parameters of the motor can be precisely controlled. However, the electrical excitation system has some disadvantages such as high degree of external interference and difficult maintenance.

Excitation system is a device used to provide magnetic field in a synchronous motor. It generates a magnetic field by providing an electric current to the rotor of the motor, which allows the motor to operate properly.

GFD563A102 3BHE046836R0102 The excitation system usually consists of an excitation power supply and an excitation controller. The excitation power supply can be a DC or AC power supply, which provides current to excite the rotor magnetic field. The excitation controller is used to control the size and direction of the excitation current to realize the control of the motor.

Excitation system plays an important role in synchronous motor, it can control the output power, frequency and voltage parameters of the motor, but also can protect the motor from overload and short circuit and other faults.
