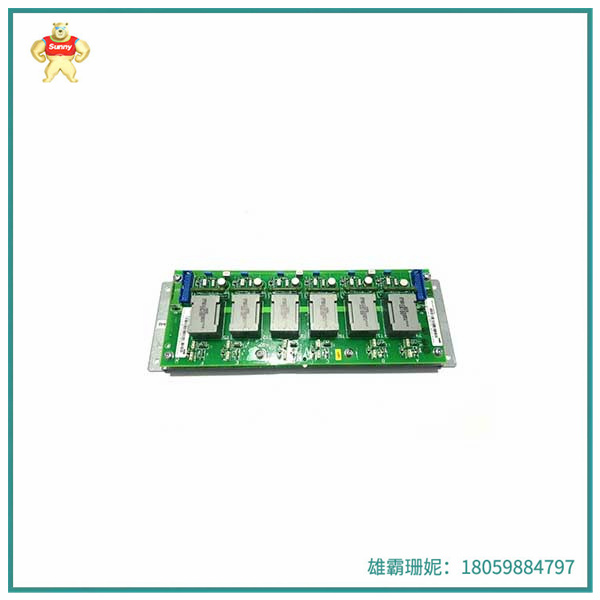

SDCS-PIN-48-COAT  脉冲变压器板 脉冲信号输入输出的转换功能

编号：3BSE004939R1012

一般信息

产品编号：编号：3BSE004939R1012

ABB型号名称：SDCS-引脚-48-SD

目录说明：SDCS-引脚-48-SD;SDCS-PIN48-SD脉冲变压器板

类别

零部件 » 传动 » 直流传动 » 工业 传动 » 模块 » DCS800-S

使用地点（作为“产品”的备件）

订购

原产国：泰国 （TH）

海关税则号：85049090

发票说明：SDCS-PIN48-SD脉冲变压器板

按订单生产：不

最小起订量：1 件

订单倍数：1 件

仅引用：不

销售计量单位：块

尺寸

产品净重：0.328 千克

套餐 1 级单位：1 件

专门的

框架尺寸：Spare_Parts

其他信息

中文名称：SDCS-PIN48-SD脉冲变压器BOA

分类

联合国特别方案委员会：39122004

环境的

WEEE类别：产品不在WEEE范围内

SDCS-PIN-48-COAT 脉冲变压器板是一种电子元件，它具有将输入的脉冲信号转换为输出信号的功能，常用于通信、电子测量等领域。脉冲变压器板主要由铁氧体磁芯、绕组、绝缘材料等组成，具有体积小、重量轻、可靠性高等优点。在脉冲变压器板的应用中，需要注意信号的幅度、频率等参数的匹配，以及避免过载、短路等情况的发生，以保证其正常工作和延长使用寿命。

SDCS-PIN-48-COAT  脉冲变压器板 脉冲信号输入输出的转换功能

Number: 3BSE004939R1012

General information

Product Number: Number: 3BSE004939R1012

ABB Model name: SDCS- Pin -48-SD

Directory Description: SDCS- Pin 48-SD; SDCS-PIN48-SD pulse transformer board

category

Parts » Transmission » DC transmission » Industrial Transmission » Modules » DCS800-S

Place of use (as spare parts for the "Product")

order

Country of Origin: Thailand (TH)

Customs Code: 85049090

Invoice description: SDCS-PIN48-SD pulse transformer board

Build-to-order: No

Minimum order quantity: 1 piece

Order multiple: 1 piece

Quote only: No

Sales unit: block

dimension

Net weight: 0.328 kg

Set package Level 1 unit: 1 piece

technical

Frame size: Spare_Parts

Other information

Chinese name: SDCS-PIN48-SD pulse transformer BOA

sort

United Nations Committee on Special Programmes: 39122004

environmental

WEEE Category: The product is not included in the WEEE

Sdss-pin-48-coat pulse transformer board is an electronic component, which has the function of converting the input pulse signal to the output signal, and is often used in communication, electronic measurement and other fields. The pulse transformer board is mainly composed of ferrite core, winding, insulation material, etc. It has the advantages of small size, light weight and high reliability. In the application of the pulse transformer board, it is necessary to pay attention to the matching of parameters such as the amplitude and frequency of the signal, as well as to avoid the occurrence of overload, short circuit, etc., to ensure its normal operation and extend its service life.
