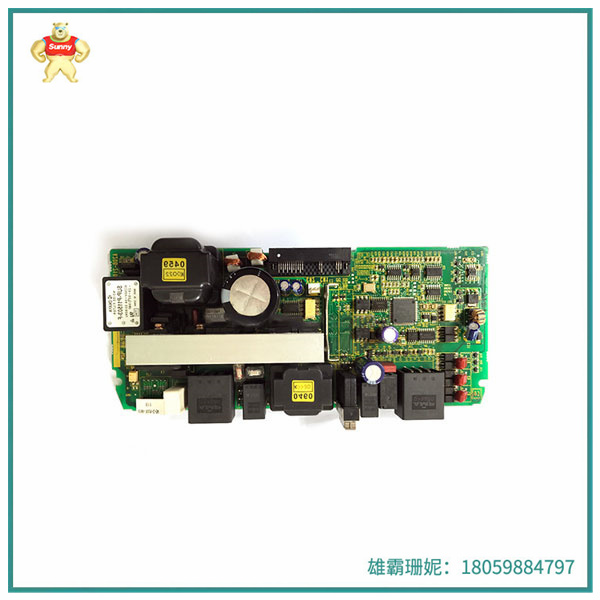

A20B-2101-0390 ABB 电源电路板 具有标准电压和频率

A20B-2101-0390是一种电源电路板，属于工控产品备件。它具有标准电压和频率，以及标准认证。这种电路板通常用于工业控制系统中。

电源电路板是一种实现电源供应的电路板。

电源电路板通常指开关电源，开关电源是以开关的方式来实现电压转换的供电系统，开关电源有着体积小、重量轻、效率高的最大特点，区别于线性电源。

A20B21010390是用于 Alpha I 系列主轴放大器的印刷电路板或电源板。该电源板模块由 Fanuc 制造。Alpha I 系列由多个模块组成，协同工作，为您的系统提供电源和控制。ai系列由伺服电机、主轴电机和伺服放大器组成。这些模块可以非常高效地进行高速控制。主轴和伺服单元能够以极高的精度实现这一目标。控制和精度在几个方面使您受益。一个好处是节省金钱，这是第二个好处的结果，即节能。降低能源成本不仅可以节省资金，而且对环境有益。这些产品在日本制造，专为商品生产、高级加工和 CNC 铣削使用而设计。它们提供 MRO Electric 的 2 年保修。我们还提供来自其他制造商的电源，例如西门子和控制技术。

特征

Fanuc ai 系列或 Alpha I 系列的基本单元是电源 （PS）、伺服放大器 （SV）、主轴放大器 （SP）、交流电抗器、连接器、保险丝和电源变压器。A20B21010390电源板具有噪声滤波器。它还具有七段 LED 状态显示屏，位于 A20B21010390 ai 电源单元的前面板上。LED 正下方的连接器是 CX1A 输入连接和 CX1B 输出连接。输入和输出连接下方是 CXA2A 连接。Fanuc A20B21010390的下半部分具有 JX1B、CX37、CX3 MCC 和 CX4 ESP 连接。

如何使用A20B21010390

Fanuc A20B21010390 适用于整个 ai 系列，可与 Fanuc 伺服放大器一起使用。这是连接系统的基本概述。Fanuc ai 系列中的 CNC、伺服电机、伺服放大器和其他模块必须检查规格，以确保这些单元符合您的规定并且接线正确。如果连接正确连接，则下一步是开机并在 CNC 上设置初始参数。测量交流电源电压后，连接电源。

A20B-2101-0390 ABB 电源电路板 具有标准电压和频率

A20B-2101-0390 is a power supply circuit board, which belongs to the spare parts of industrial control products. It has standard voltage and frequency, as well as standard certification. Such boards are commonly used in industrial control systems.

A power supply circuit board is a circuit board that implements a power supply.

The power circuit board usually refers to the switching power supply, the switching power supply is a switching way to achieve voltage conversion power supply system, the switching power supply has the biggest characteristics of small size, light weight, high efficiency, different from the linear power supply.

A20B21010390 is a printed circuit board or power supply board for Alpha I series spindle amplifiers. The power board module is manufactured by Fanuc. The Alpha I series consists of multiple modules that work together to provide power and control to your system. The ai series consists of a servo motor, a spindle motor and a servo amplifier. These modules can be very efficient for high-speed control. The spindle and servo units achieve this with great precision. The control and precision benefit you in several ways. One benefit is saving money, which is the result of the second benefit, which is saving energy. Reducing energy costs not only saves money, but also benefits the environment. These products are manufactured in Japan and designed for use in commodity production, advanced machining and CNC milling. They come with a 2-year warranty on the MRO Electric. We also supply power supplies from other manufacturers, such as Siemens and Control Technologies.

trait

The basic units of the Fanuc ai or Alpha I series are the power supply (PS), servo amplifier (SV), spindle amplifier (SP), AC reactor, connector, fuse and power transformer. A20B21010390 Power supply board with noise filter. It also features a seven-segment LED status display located on the front panel of the A20B21010390 ai power supply unit. The connector directly below the LED is the CX1A input connection and the CX1B output connection. Under the input and output connections are CXA2A connections. The lower half of the Fanuc A20B21010390 has JX1B, CX37, CX3 MCC, and CX4 ESP connections.

How to use A20B21010390

The Fanuc A20B21010390 is suitable for the entire ai family and can be used with Fanuc servo amplifiers. This is a basic overview of the connected system. The CNC, servo motors, servo amplifiers and other modules in the Fanuc ai series must be checked for specifications to ensure that these units meet your specifications and are wired correctly. If the connection is properly connected, the next step is to turn on the machine and set the initial parameters on the CNC. Measure the AC power supply voltage and connect the power supply.
