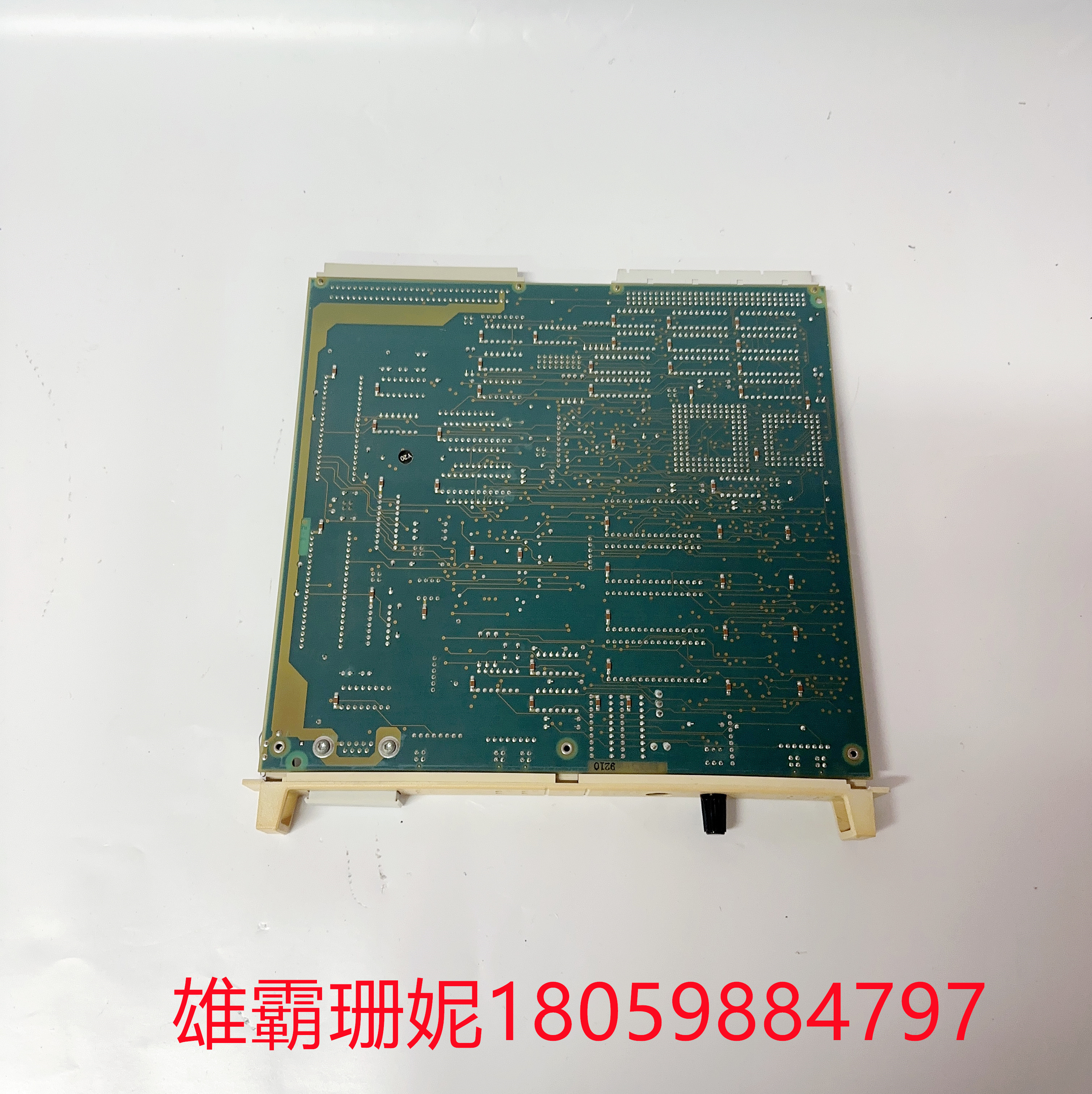

ABB DSCA190V 57310001-PK 通信处理模块

ABB DSCA190V 57310001-PK 通信处理模块

ABB DSCA190V 57310001-PK 通信处理模块是一款高性能通信处理器，旨在满足工业应用的需求。它使用各种通信协议在设备之间提供可靠和高效的通信。

ABB DSCA190V 57310001-PK 通信处理模块现场电源电压通过315mA保险丝供电。输入信号来自现场设备的（0-20mA）通过50mA保险丝供电限制输入信号。输入250R电阻器两端产生的电压（高精度0.1%）由输入模块用于检测现场设备地位

将输入模块上的40个通道连接到VFTA的电缆为终止于五个10路连接器。双24V直流电源为通过五个4路连接器连接到VFTA。40个3路连接器用于场回路。VFTA设计为安装在TS32或TS35 DIN根据需要，轨道处于水平或垂直位置。

ABB DSCA190V 57310001-PK 通信处理模块旨在为ABB Bailey Infi 90 DCS系统和监控系统之间提供可靠、快速的通信。它易于安装和使用，是广泛应用的理想选择。

ABB DSCA190V 57310001-PK 通信处理模块

The ABB DSCA190V 57310001-PK Communication processing module is a high-performance communication processor designed to meet the needs of industrial applications. It uses a variety of communication protocols to provide reliable and efficient communication between devices.

ABB DSCA190V 57310001-PK Communication processing module Field power supply voltage is supplied through 315mA fuse. The input signal from the field device (0-20mA) is limited by a 50mA fuse power supply. The voltage generated at both ends of the input 250R resistor (high accuracy 0.1%) is used by the input module to detect the position of the equipment in the field

The cables connecting the 40 channels on the input module to the VFTA are terminated at five 10-way connectors. The dual 24V DC power supply is connected to the VFTA via five 4-way connectors. 40 3-way connectors for the field loop. The VFTA is designed to be installed in the TS32 or TS35 DIN with rails in a horizontal or vertical position as required.

The ABB DSCA190V 57310001-PK communication processing module is designed to provide reliable and fast communication between ABB Bailey Infi 90 DCS and monitoring systems. It is easy to install and use, making it ideal for a wide range of applications.

ABB DSCA190V 57310001-PK 通信处理模块
