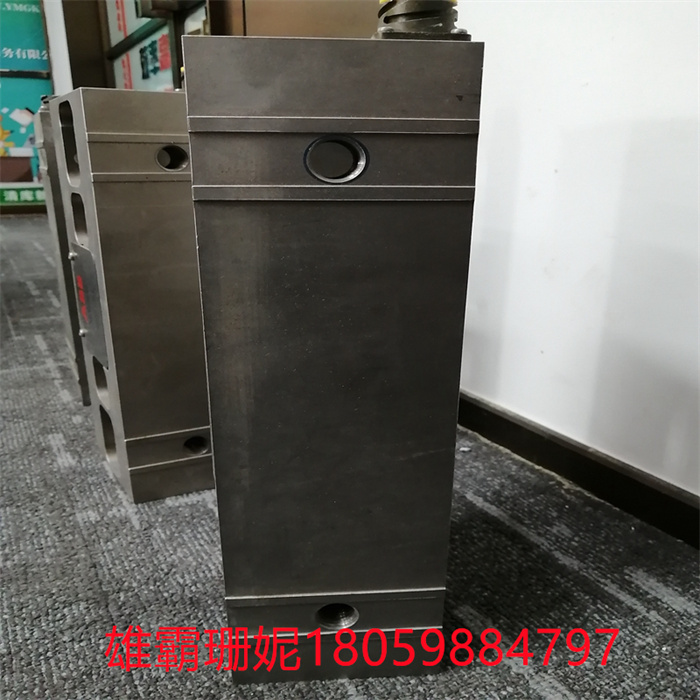

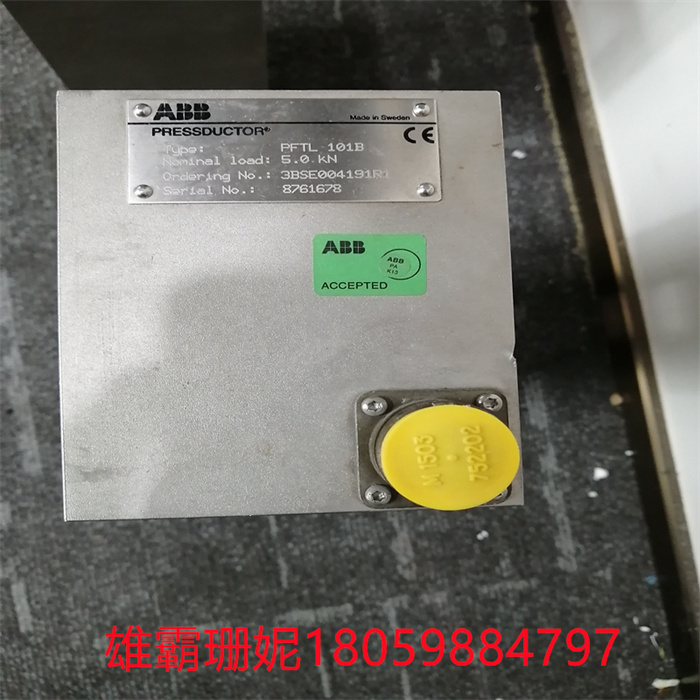

ABB PFTL101B 5.0KN 3BSE004191R1 张力传感器

ABB PFTL101B 5.0KN 3BSE004191R1 张力传感器

张力传感器的安装分为两种，第一种是利用轴承座固定用螺栓孔把轴承座固定在底座上。另一种是利用选装板固定轴承

座的方法，安装时重要注意的是导致张力测量不准的原因，在张力传感设备接信号线，开关量与输出端子坐弱申纯的时

候尽量远离强电线，以免电磁信号对张力检测产生干扰。而在实际的应用中输出灵敏度，温度补偿范围，零点温度影向，额定载荷，极限符合等因素也是影响张力测量不准的原因。使用注意事项:

1.安装张力检测器和轴承座的螺丝不能过长，过长会导致张力检测器的簧片无法正常工作而检测不到张力。

2.利用侧面固定时，固定螺丝不能过长，否则将导致张力检测器内测量机构损坏。

3.张力检测器在任何时候都不能手强烈撞击或害动，否则会导致张力检测器损坏。

ABB PFTL101B 5.0KN 3BSE004191R1 张力传感器

The installation of the tension sensor is divided into two types, the first is to use the bearing seat fixed with a bolt hole to fix the bearing seat on the base. The other is to use the optional plate fixed bearing

When installing the method, it is important to pay attention to the causes of inaccurate tension measurement, when the tension sensing device is connected to the signal line, the switching quantity and the output terminal are weak and pure

Try to stay away from strong wires, so as not to interfere with electromagnetic signals on tension detection. In practical application, the output sensitivity, temperature compensation range, zero temperature shadow direction, rated load, limit conformity and other factors are also the reasons that affect the inaccurate tension measurement. Precautions for use:

1. The screws for installing the tension detector and bearing seat should not be too long, which will cause the reed of the tension detector to fail to work properly and no tension can be detected.

2. When using side fixing, the fixing screws should not be too long, otherwise it will cause damage to the measuring mechanism in the tension detector.

3. The tension detector should not be strongly impacted or harmed at any time, otherwise it will cause damage to the tension detector.

ABB PFTL101B 5.0KN 3BSE004191R1 张力传感器
