CS31 ABB PLC控制模块

CS31 ABB PLC控制模块

CS31 ABB PLC控制模块的全面范围增强了模块化 系统的一部分。 例如： 低调的16通道用户可配置输入/输出 该装置可安装在控制面板门上，带有输入 以及连接到按钮和指示灯的输出。 多功能系列 CS31基于两种类型的中央单元， 07KR91、07KT92/07KT93和07KR31/07KT31。 系统可配置为符合most控制 系统要求（参见前面的配置 （举例）。 ●07KR91、07KT92/07KT93是为复杂的 具有更高功能级别的应用程序（数据 操作、PID调节等）。 ●07KR31/07KT31包含所有功能 因此，小型分散应用程序需要 提供优异的性价比。

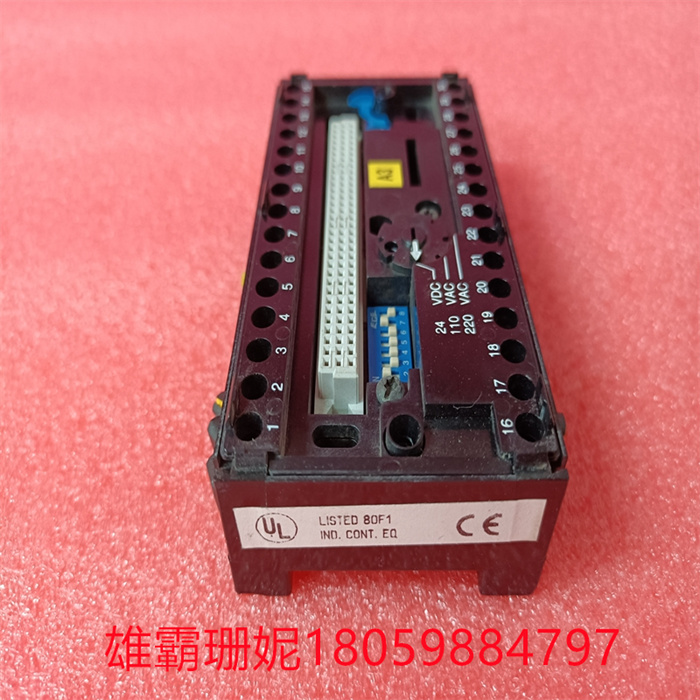

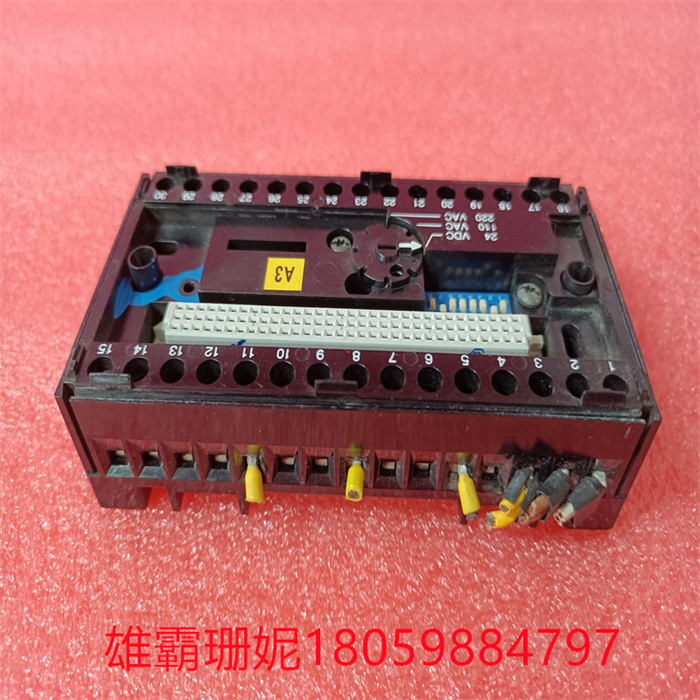

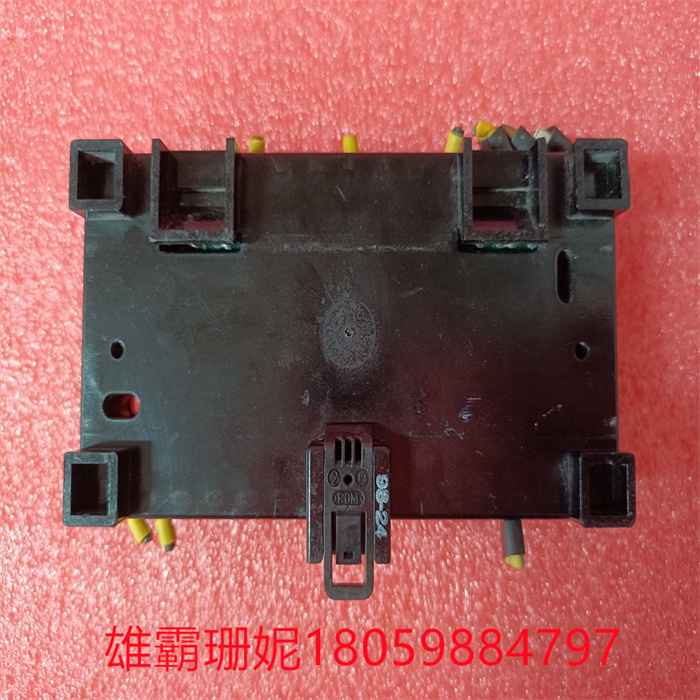

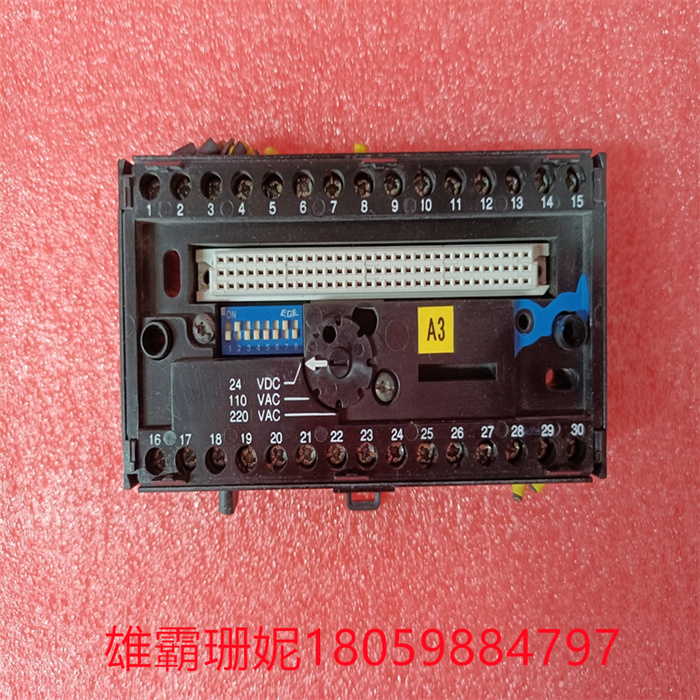

诊断 CS31 ABB PLC控制模块系统包含广泛的诊断功能 功能。 所有远程装置都包含一个微处理器 致力于管理输入/输出和 诊断设备。 可使用屏幕上的“测试”按钮访问诊断 在每个远程单元的前面，结果显示在 I/O状态指示灯。 诊断结果可以与用户合并 程序，从而实现有效的故障管理。 CS31系统的使用 所有远程装置都很容易互换，甚至 随着进程的运行，因为它们是插件库 安装。 插入式底座的螺纹端子用于 与过程输入和输出的连接。 底座采用螺钉或DIN导轨安装。 底座上的DIL开关用于编码 单位地址。 任何附加的连接单元都会自动关闭 得到中央单位的认可。 注：系统可能由远程设备组成 不同的电源和输入电压。 应急操作 然而，一个系统可能由许多中央单元组成 一个主人，其余的奴隶。 如果主总线中断，则通信单元中断 单个从属单元无法继续使用它们自己的 活动

CS31 ABB PLC控制模块

CS31 The comprehensive range of ABB PLC control modules enhances part of the modular system. Example: Low-profile 16-channel user configurable input/output This unit can be mounted on the control panel door with inputs and outputs connected to buttons and indicators. The multi-function series CS31 is based on two types of central units, 07KR91, 07KT92/07KT93 and 07KR31/07KT31. The system can be configured to meet most control system requirements (see previous configuration (example)). 07KR91, 07KT92/07KT93 are for complex applications with higher functional levels (data manipulation, PID tuning, etc.). ●07KR31/07KT31 includes all features Therefore, small decentralized applications need to provide excellent price/performance ratio.

Diagnostics CS31 ABB PLC control module system contains a wide range of diagnostic functions. All remote devices contain a microprocessor dedicated to managing input/output and diagnostic devices. Diagnostics can be accessed using the on-screen "Test" button on the front of each remote unit, and the results are displayed in the I/O status indicator. Diagnostic results can be merged with the user's program for effective fault management. The CS31 system uses all remote devices that are easily interchangeable, even as the process runs, because they are installed as plug-in libraries. Threaded terminals of the plug-in base are used for connection to process inputs and outputs. The base is mounted with screws or DIN rails. The DIL switch on the base is used to encode the unit address. Any additional connection units are automatically closed with the approval of the central unit. Note: The system may consist of remote devices with different power supplies and input voltages. However, a system may consist of many central units consisting of one master and the rest of the slaves. If the main bus is interrupted, the communication unit interrupts the individual slave units and cannot continue using their own activities

CS31 ABB PLC控制模块
