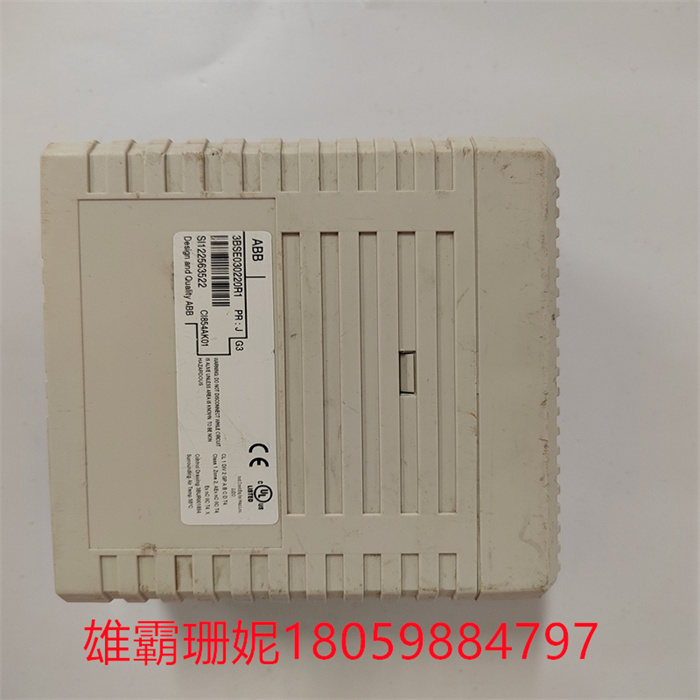

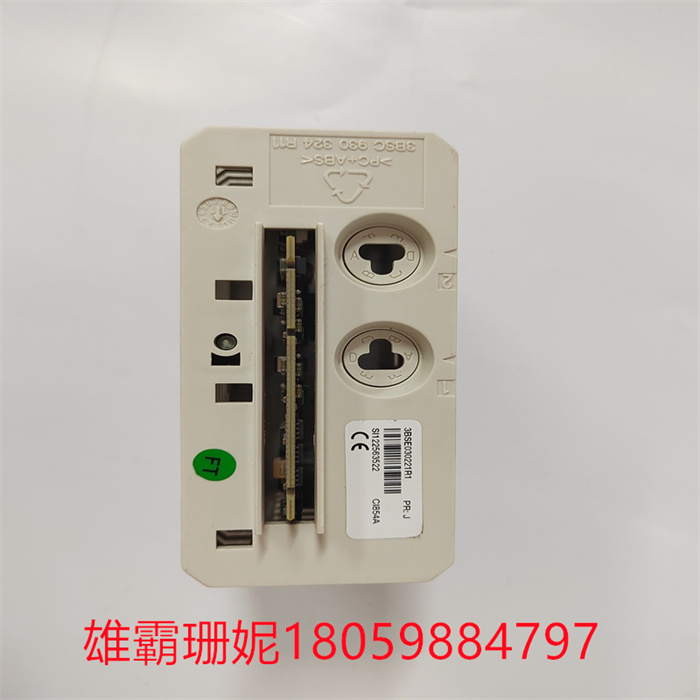

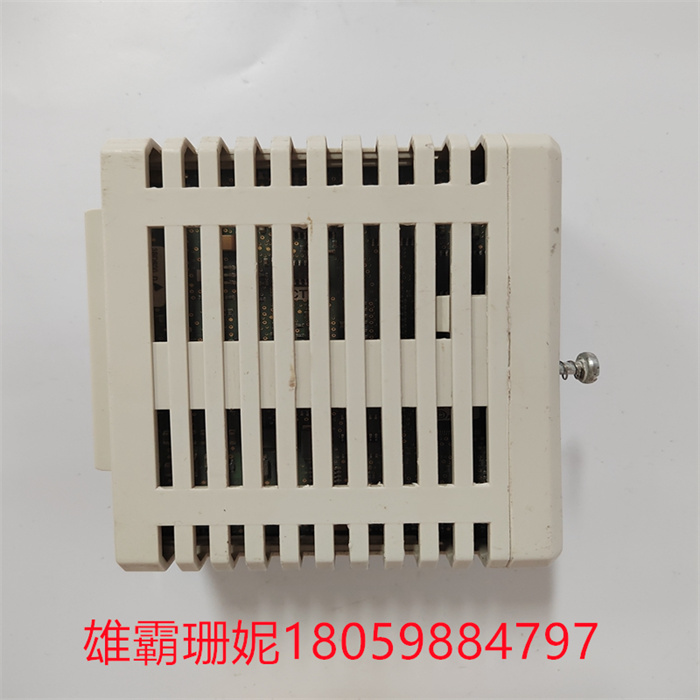

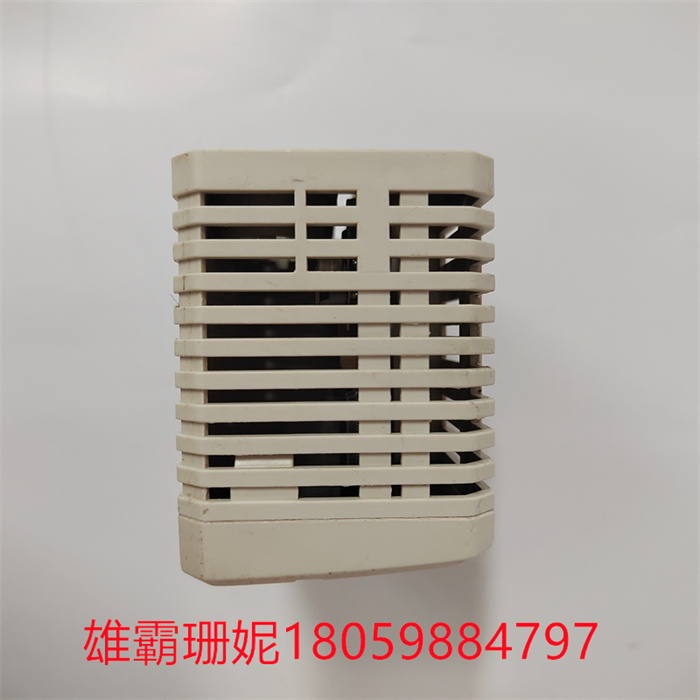

CI854A 3BSE030221R1 ABB 通讯模块

CI854A 3BSE030221R1  ABB 通讯模块

CI854A PROFIBUS DP 是一种高速多用途总线协议（高达 12Mbit/s），用于互连现场设备，如远程 I/O、驱动器、低压电气设备和控制器。PROFIBUS DP 可以通过 CI854A 通信接口连接到 AC 800M。Classic CI854A包括两个PROFIBUS端口来实现线路冗余，CI854A还支持PROFIBUS主站冗余。CI854B 是新的 PROFIBUS-DP 主站，可在新安装中取代 CI854A。通过使用两个 CI854A 通信接口模块，在 PROFIBUS-DP 通信中支持主站冗余。CI854A主站冗余可以与 CPU 冗余和 CEXbus 冗余 (BC810) 结合使用。CI854A这些模块安装在 DIN 导轨上，直接与 S800 I/O 系统和其他 I/O 系统连接，包括所有 PROFIBUS DP/DP-V1 和 FOUNDATION Fieldbus 熟练系统。PROFIBUS DP 必须在两个最外面的节点处终止。CI854A通常通过使用带有内置终端的连接器来完成。为了保证正确的工作端接，必须插入连接器并供电。

CI854A 3BSE030221R1  ABB 通讯模块

CI854A PROFIBUS DP is a high-speed multi-purpose bus protocol (up to 12Mbit/s), which is used to interconnect field devices, such as remote I/O, drivers, low-voltage electrical equipment and controllers. PROFIBUS DP can be connected to AC 800M through CI854A communication interface. Classic CI854A includes two PROFIBUS ports to realize line redundancy, and CI854A also supports PROFIBUS master station redundancy. CI854B is a new PROFIBUS-DP master station, which can replace CI854A in the new installation. By using two CI854A communication interface modules, the redundancy of master station is supported in PROFIBUS-DP communication. CI854A master station redundancy can be combined with CPU redundancy and CEXbus redundancy (BC810). CI854A These modules are installed on DIN rails and directly connected with S800 I/O system and other I/O systems, including all PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus skilled systems. PROFIBUS DP must be terminated at the two outermost nodes. CI854A is usually accomplished by using a connector with a built-in terminal. In order to ensure the correct working termination, the connector must be inserted and powered.

CI854A 3BSE030221R1  ABB 通讯模块全新备件
