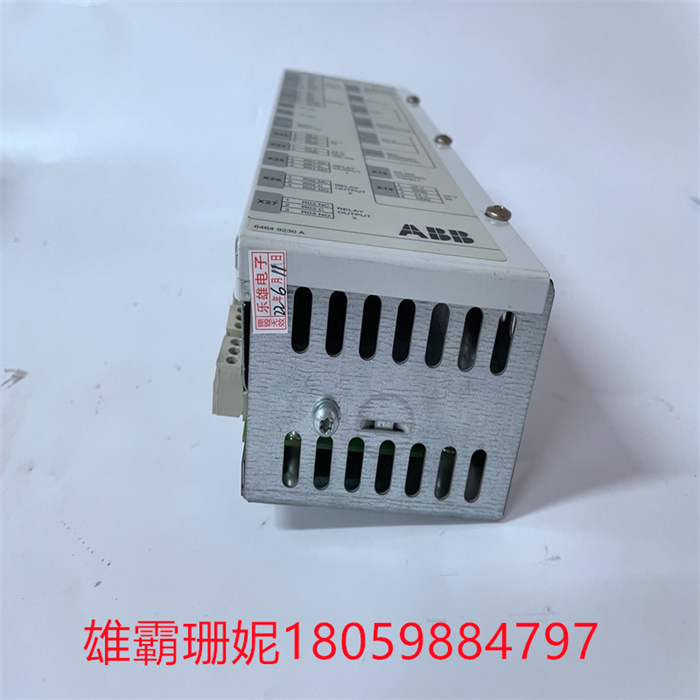

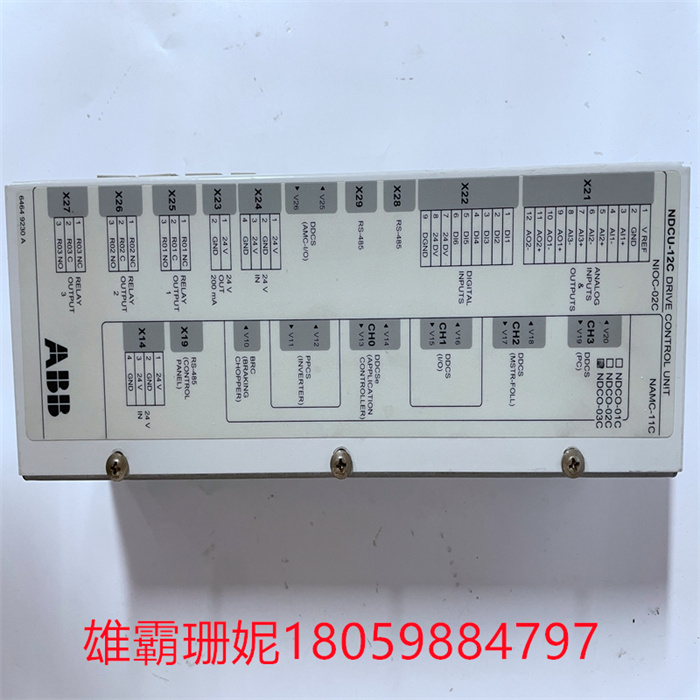

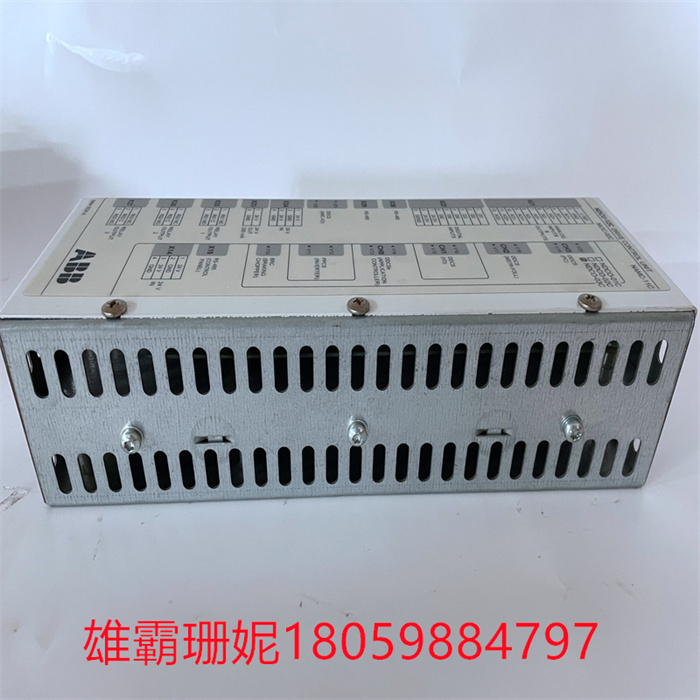

ABB NDCU-12C NDCU-12CK 驱动控制单元

ABB NDCU-12C NDCU-12CK  驱动控制单元

混合励磁电机的调速特性 混合勵磁同步电动机作为一种新型永磁电机，同时具备永磁同步电动机高功率密度和高效率的优点，以及电励磁同步电动机气隙磁场易于调节的特点。提出了一种混合磁极式的混合励磁同步电动机，推导了该混合励磁同步电动机的数学模型，得到了混合励磁同步电动机定子电流矢量轨迹 混合励磁电机的调速特性取决于其励磁方式和控制方法。 对于混合励磁电机来说，其永磁体和励磁线圈都可以提供磁场，因此它的励磁方式可以分为串联励磁和并联励磁两种。 对于串联励磁的混合励磁电机来说，其调速特性与传统的串联励磁直流电机类似，即随着电枢电流的变化，电机的转矩和转速也会相应地变化。但与传统的串联励磁直流电机不同的是，混合励磁电机的转子是永磁体，因此其反电动势随着转速的增加而线性增加。这就需要根据转速来调整电枢电流，以保持电机的转速稳定。 对于并联励磁的混合励磁电机来说，其调速特性与异步电机类似，即其转速随着负载的变化而发生变化，但其效率和功率因数要比异步电机高。在控制上，可以通过控制电机的励磁电流来实现转速的调节。 总的来说，混合励磁电机具有良好的调速特性和高效率、高功率因数等优点，但其调速和控制方法相对于传统的电机会更加复杂。 混合励磁电机是电励磁同步电机和永磁同步电机的合成，因此，在忽略漏磁和磁饱和的情况下，气隙内的磁链是永磁磁动势产生的磁链和电励磁磁动势产生的磁链的合成。

ABB NDCU-12C NDCU-12CK  驱动控制单元

Speed regulation characteristics of hybrid excitation motor As a new type of permanent magnet motor, hybrid excitation synchronous motor has the advantages of high power density and high efficiency of permanent magnet synchronous motor, and the air gap magnetic field of electrically excited synchronous motor is easy to adjust. A hybrid excitation synchronous motor with mixed magnetic poles is proposed, and its mathematical model is deduced. It is concluded that the speed regulation characteristics of hybrid excitation synchronous motor with stator current vector trajectory depend on its excitation mode and control method. For hybrid excitation motor, both permanent magnet and excitation coil can provide magnetic field, so its excitation mode can be divided into series excitation and parallel excitation. For the series-excited hybrid excitation motor, its speed regulation characteristics are similar to those of the traditional series-excited DC motor, that is, with the change of armature current, the torque and speed of the motor will change accordingly. However, unlike the traditional series excitation DC motor, the rotor of hybrid excitation motor is a permanent magnet, so its back electromotive force increases linearly with the increase of rotating speed. Therefore, it is necessary to adjust the armature current according to the rotating speed to keep the rotating speed of the motor stable. For the hybrid excitation motor with parallel excitation, its speed regulation characteristics are similar to those of asynchronous motor, that is, its speed changes with the change of load, but its efficiency and power factor are higher than those of asynchronous motor. In control, the speed can be adjusted by controlling the excitation current of the motor. Generally speaking, hybrid excitation motor has good speed regulation characteristics, high efficiency and high power factor, but its speed regulation and control methods will be more complicated than traditional motors. Hybrid excitation motor is a combination of electrically excited synchronous motor and permanent magnet synchronous motor. Therefore, the flux linkage in the air gap is a combination of the flux linkage generated by permanent magnet magnetomotive force and the flux linkage generated by electrically excited magnetomotive force when the leakage and saturation are ignored.

ABB NDCU-12C NDCU-12CK  驱动控制单元
