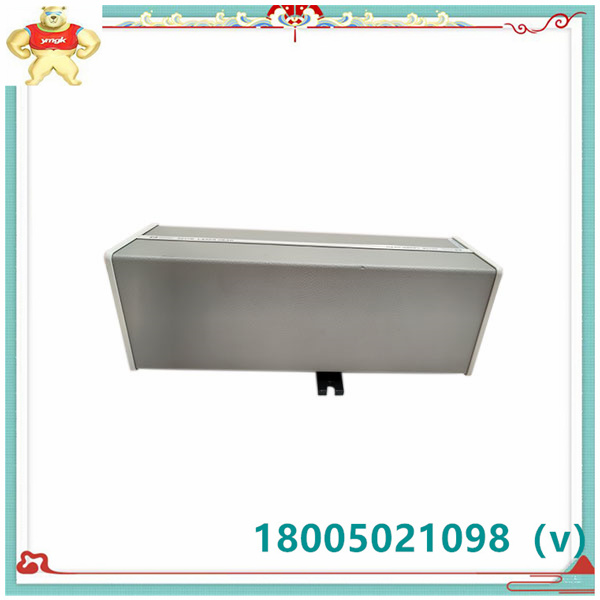

HPC800+MB810   |  过程控制器

型号：HPC800+MB810

类别：过程控制器

成色：全新/非全新

质保：一年

功能强大的过程控制器

HPC800是一系列成功应用的过程控制器的最新一代产品，

可满足各种过程控制需求。通过S+ Engineering工具进行组

态，HPC800可使用超过150种预定义控制算法或功能码(图3)。

这些功能使得系统可以简便地设计复杂的控制算法以适应各种

控制应用，包括连续，顺序，批处理和先进控制。除了标准功能

块，HPC800还支持C语言编程和批处理函数。

HPC800控制器包括如下特点：

− 同时支持S+ I/O，harmony 机架式I/O，以及S800 I/O 子系

统；

− 可下载固件、可刷新固件版本；

− 扩展的用户组态存储器(NVRAM)和实时存储器(RAM)；

− 支持30,000种功能块；

− 灵活的在线组态能力。

高可靠性和可利用率

HPC800的设计保证了最大化的可靠性和可利用率。在所有层面进

行冗余设计—CPU，电源，内部总线，I/O网络，通讯接口和工厂

网络—HPC800控制系统提供了最高级别的可利用率。遵循国际标

准的设计，保证了系统最高级别的可靠性和质量，以满足全世界最

严苛的技术要求及用户需求。总之，我们为用户的过程产品提供快

速，精确，无扰的控制，提高了生产效率，增加了可利用率，降低

了维护成本。

使用简便

HPC采用DIN轨安装方式，标准24V直流电源供电，具有标准以

太网接口。这些特点使得安装简单、灵活，减少了机柜在空间，

尺寸，布线上的种种限制。同时，宽范围输入电源以及以太网接

口，也降低了安装及维护成本。

点对点控制器通讯

HPC800用于点对点控制器通讯的总线 (CW800)，更新 速率可低于

100ms。这在有些情况下实现快速、精确的控制显得尤为重要，比如

在不同工艺环节 (比如锅炉和汽机)间统一控制，或一个测点不加现

场变送器和电缆而应用在不同子系统时。CW800点对点通讯总线是

完全冗余的

Model: HPC800+MB810

Category: Process controllers

Finish: New/not new

Warranty: One year

Powerful process controller

The HPC800 is the latest generation in a series of successful process controllers,

It can meet various process control requirements. Group using S+ Engineering tool

The HPC800 can use more than 150 predefined control algorithms or function codes (Figure 3).

These functions make the system easy to design complex control algorithms to adapt to various types

Control applications, including continuous, sequential, batch and advanced control. In addition to standard features

The HPC800 also supports C programming and batch processing functions.

The HPC800 controller includes the following features:

− Supports S+ I/O, harmony rack-mounted I/O, and S800 I/O subsystems

Together;

− Firmware can be downloaded and updated.

− Extended user configuration memory (NVRAM) and real-time memory (RAM);

− Supports 30,000 types of function blocks.

− Flexible on-line configuration capability.

High reliability and availability

The design of the HPC800 ensures maximum reliability and availability. Advance on all levels

Line redundancy design - CPU, power supply, internal bus, I/O network, communication interface and factory

Networking - The HPC800 control system provides the highest level of availability. Follow international standards

The accurate design ensures the highest level of reliability and quality of the system to meet the world's best

Strict technical requirements and user requirements. In short, we provide users with fast process products

Fast, precise and undisturbed control improves production efficiency, increases availability and reduces availability

Maintenance costs.

Easy to use

HPC adopts DIN rail mounting mode, standard 24V DC power supply, with standard

Ethernet interface. These features make installation simple and flexible, reducing the space of the cabinet,

Size, wiring limitations. At the same time, a wide range of input power and Ethernet connections

It also reduces installation and maintenance costs.

Point-to-point controller communication

HPC800 Bus for point-to-point controller communication (CW800), update rate can be lower

100ms. This is especially important in situations where fast, precise control is possible, such as

Unified control between different process links (such as boilers and steam engines), or a measurement point is not added

Field transmitters and cables are used in different subsystems. CW800 point-to-point communication bus Yes

Completely redundant
