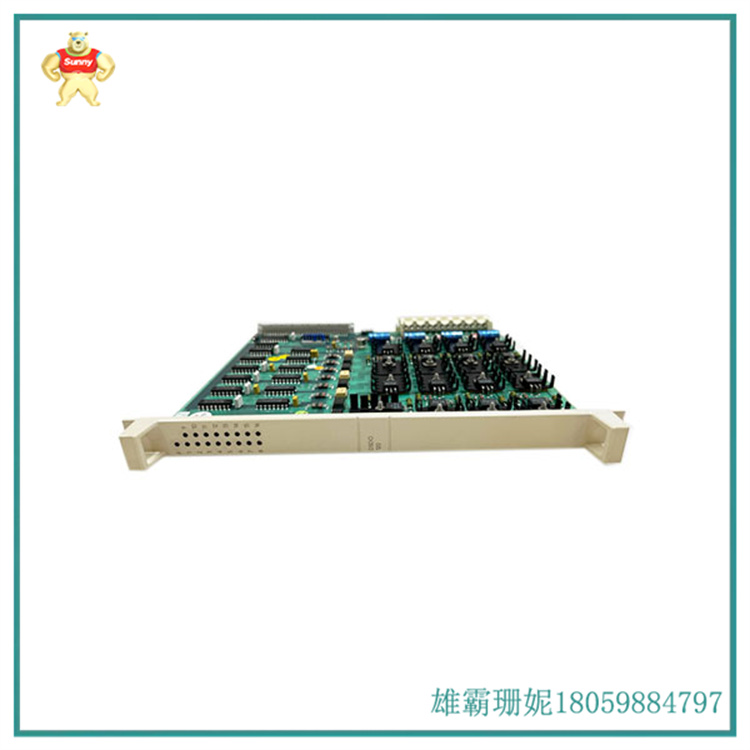

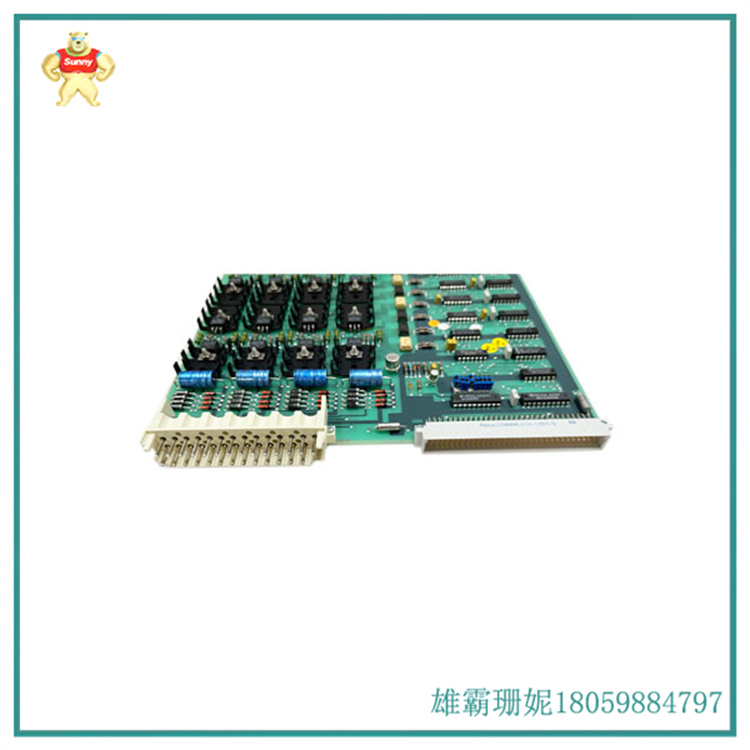

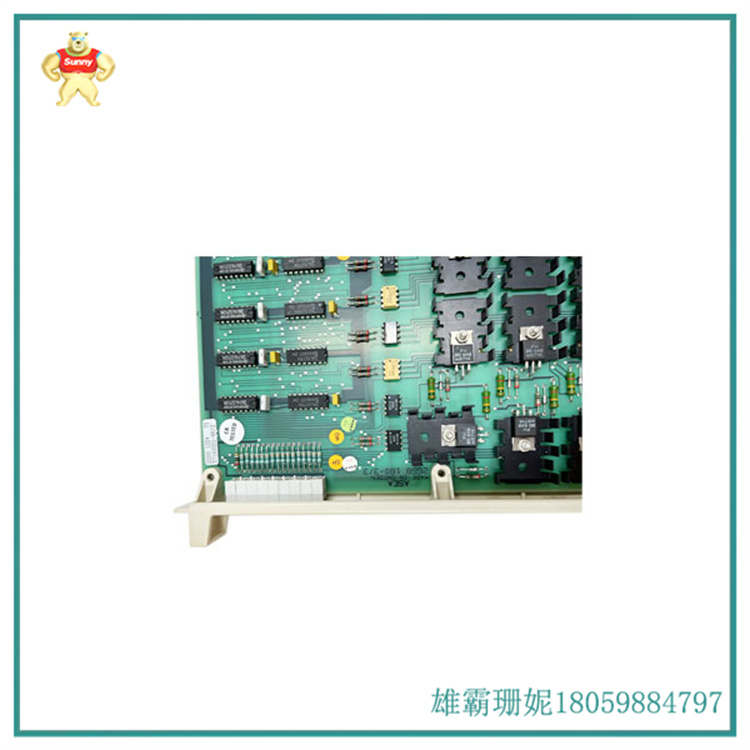

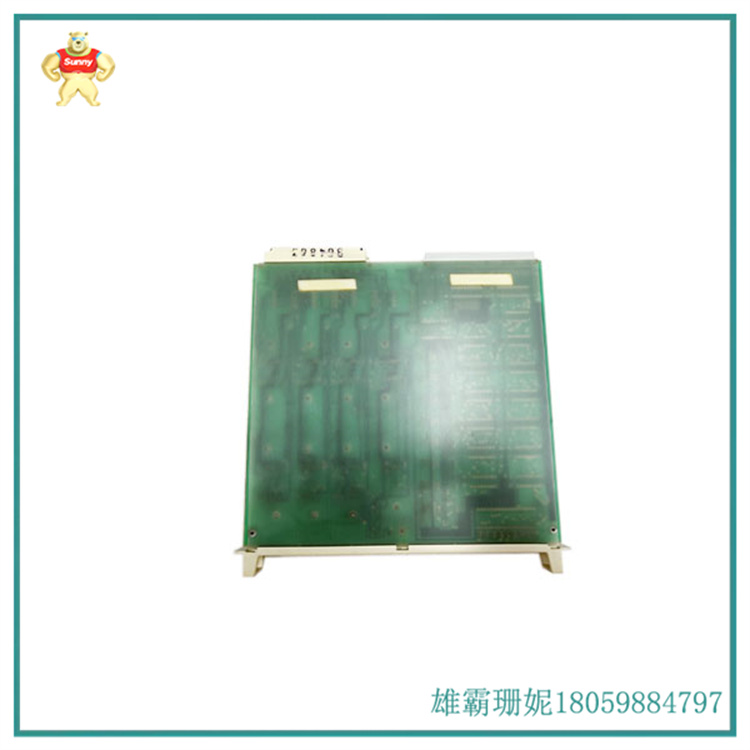

ABB DSDO120 电路板

ABB DSDO120 571 60001-AK电路板模块上的DIP开关必须设置为FIP位置，以便远程I/O扫描器 与Series 90-70 PLC通信。模块说明FIP远程I/O扫描器是一个标准的90-30系列PLC模块， 可轻松插入底板的底板，用于两条FIP总线电缆的9针公D连接器。可以在不干扰总线连续性的情况下从模块上断开总线。第二总线是第一总线的备份; 其使用是可选的。FIP同步电缆的SYNCHRO连接器。ABB DSDO120 571 60001-AK它需要匹配连接器,如Molex#39-01 -4031。在Series 90-70 PLC应用程序中不使用同步功能。(接地) 同步器接头下方的凸耳用于模块接地线(提供)。接地线的另-端必须连接到底板左下角的安装螺栓和底盘接地。ABB DSDO120 571 60001-AK

The DIP switch on the ABB DSDO120 571 60001-AK circuit board module must be set to the FIP position for remote I/O scanners to communicate with the Series 90-70 PLC. Module Description: The FIP Remote I/O Scanner is a standard 90-30 series PLC module that can be easily inserted into the backplane and used for 9-pin male D connectors for two FIP bus cables. It is possible to disconnect the bus from the module without interfering with bus continuity. The second bus is a backup of the first bus; Its use is optional. SYNCHO connector for FIP synchronous cable. ABB DSDO120 571 60001-AK requires matching connectors, such as Molex # 39-01-4031. The synchronization function is not used in the Series 90-70 PLC application. The lug below the synchronizer connector is used for module grounding wire (provided). The other end of the grounding wire must be connected to the mounting bolt at the bottom left corner of the chassis and chassis grounding. ABB DSDO120 571 60001-AK
