CI867A  3BSE092689R1  包含 DC/DC 转换器 可以设置为冗余并支持热插拔

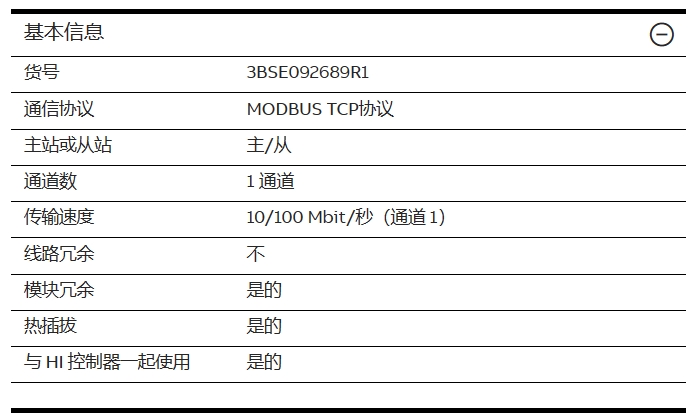

基本信息

型号：CI867A型

货号 3BSE092689R1

通信协议 MODBUS TCP协议

主站或从站 主/从

通道数 1 通道

传输速度 10/100 Mbit/秒（通道 1）

线路冗余 不

模块冗余 是的

热插拔 是的

与 HI 控制器一起使用 是的

MODBUS TCP因其易用性而成为广泛传播的开放行业标准。它是一种请求响应协议，提供由函数代码指定的服务。

MODBUS TCP将MODBUS RTU与标准以太网和通用网络标准TCP相结合。它是一种应用层消息传递协议，位于 OSI 模型的第 7 级。CI867A/TP867 用于使用 Modbus TCP 协议连接 AC 800M 控制器和外部以太网设备。

CI867 扩展单元包含 CEX-Bus 逻辑、一个通信单元和一个 DC/DC 转换器，该转换器通过 CEX-Bus 从 +24 V 电源提供适当的电压。以太网电缆必须通过以太网交换机连接到主网络。

CI867A 模块仅适用于 System 800xA 6.0.3.3、6.1.1。和后续版本。

特点和优势

CI867A 可以设置为冗余并支持热插拔。

CI867A是通道以太网单元;Ch1 支持 100 Mbps 速度的全双工。支持主站和从站功能。

每个 CI867A 最多可以使用 70 个从机和 8 个主站。

Basic information

Model: CI867A

Item No. 3BSE092689R1

Communication Protocol MODBUS TCP

Master or slave Master/slave

Number of channels 1 Channel

Transfer Speed 10/100 Mbit/ s (Channel 1)

Line redundancy is not

Module redundancy Yes

Hot swap Yes

Used with HI controller Yes

MODBUS TCP is a widely spread open industry standard because of its ease of use. It is a request-response protocol that provides services specified by function code.

MODBUS TCP combines MODBUS RTU with standard Ethernet and the common networking standard TCP. It is an application-layer messaging protocol that is located at level 7 of the OSI model. The CI867A/TP867 is used to connect an AC 800M controller to an external Ethernet device using Modbus TCP.

The CI867 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that delivers the appropriate voltage from a +24 V power supply via the CEX-Bus. Ethernet cables must be connected to the main network through an Ethernet switch.

The CI867A module applies only to System 800xA 6.0.3.3 and 6.1.1. And later versions.

Characteristics and advantages

The CI867A can be configured as redundant and hot-swappable.

CI867A is a single channel Ethernet unit; The Ch1 supports full duplex at 100 Mbps. Supports the master and slave functions.

Each CI867A can use up to 70 slave machines and 8 master stations.
