CI860 3BSE032444R1 现场总线  可在HSE子网和控制器之间建立连接

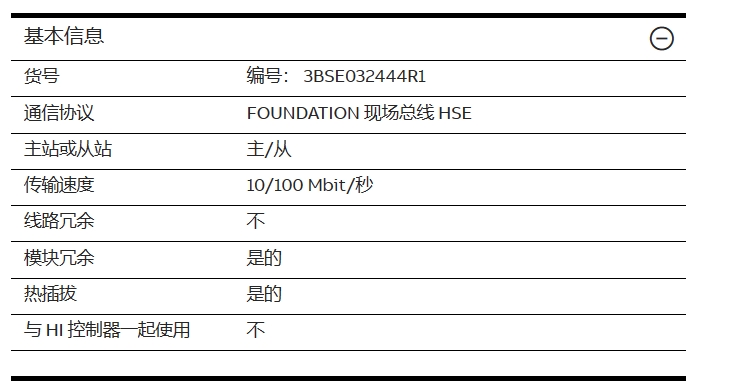

基本信息

型号：CI860 型

货号 编号： 3BSE032444R1

通信协议 ：FOUNDATION 现场总线 HSE

主站或从站：主/从

传输速度 ：10/100 Mbit/秒

线路冗余 ；不

模块冗余：是的

热插拔：是的

与 HI 控制器一起使用：不

如果需要访问AC 800M控制器中的FF过程变量，则使用CI860（通信接口FOUNDATION现场总线HSE）在HSE子网和控制器之间建立连接。

然后，可以从AC 800M控制器中的IEC 61131应用程序访问HSE上的FOUNDATION现场总线过程数据。为此，CI860 模块将 FF 信号的值和状态部分映射到 IEC 61131 应用，反之亦然。

CI860 由处理器单元通过 CEX 总线供电，因此不需要任何额外的外部电源。

特点和优势

CI860 可在冗余模式下使用

在冗余模式下，一个AC800 M上可以放置多达12个CI860模块，每个模块都可以连接到同一个或单独的FOUNDATION现场总线HSE子网。

ABB FOUNDATION 现场总线链接设备 LD800HSE/LD 800HSE EX 充当 HSE 子网和多达四个独立 H1 链路之间的网关。

Basic information

Model: CI860

Item number: 3BSE032444R1

Communication protocol: FOUNDATION Fieldbus HSE

Master or slave: Master/slave

Transmission speed: 10/100 Mbit/ s

Line redundancy; Don't

Module redundancy: Yes

Hot swap: Yes

Use with HI controller: No

If you need to access FF process variables in the AC 800M controller, a connection is established between the HSE subnet and the controller using CI860 (Communication interface FOUNDATION Fieldbus HSE).

FOUNDATION fieldbus process data on HSE can then be accessed from the IEC 61131 application in the AC 800M controller. For this purpose, the CI860 module maps the value and state portion of the FF signal to the IEC 61131 application and vice versa.

The CI860 is powered by the processor unit via the CEX bus, so no additional external power supply is required.

Characteristics and advantages

The CI860 works in redundancy mode

In redundant mode, up to 12 CI860 modules can be placed on an AC800M, each of which can be connected to the same or separate FOUNDATION fieldbus HSE subnet.

The ABB FOUNDATION fieldbus link device LD800HSE/LD 800HSE EX acts as a gateway between the HSE subnet and up to four separate H1 links.
